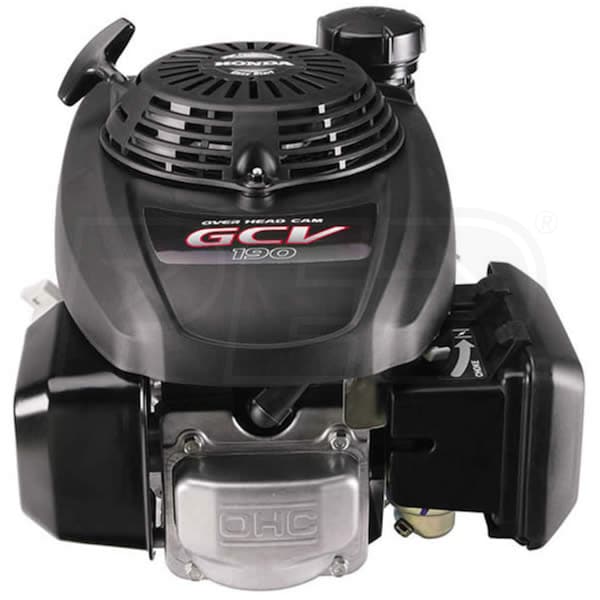

Honda GCV190™ 190cc OHC Vertical Engine, 25mm x 3-5/32" Crankshaft (S3 Type)

Honda GCV190™ 190cc OHC Vertical Engine, 25mm x 3-5/32" Crankshaft (S3 Type)
Our Price
Compare Prices
Shipping Info
Model: GCV190AS3L
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Shipping
Free Shipping
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# GCV190AS3L - 25mm x 3-5/32" Crankshaft (N3 Type)
  • 2-Year Consumer & 90-Day Commercial Warranty
  • Vertical crankshaft ideal for walk behind lawn mowers & chipper/vacs
  • Honda GCV190™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 8.3 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Cam (OHC) Technology
  • Compact, lighter and stronger for efficient, proven performance
  • DuaLube™ System & Lifetime Timing Belt Design
  • Governor slinger paddles & oil-delivering timing belt for full engine lubrication
  • Less weight, better lubrication and quieter operation
  • Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, your shoulder will thank you
  • Single-Element Air Filter, Cross-Flow Intake Port & Electric Iginition
  • Insures easier starting with a reliable spark and fuel flow
  • Simple To Maintain & Service
  • Easy access oil drain / fill ports & optimized spark plug location
  • .25-Gallon Plastic Fuel Tank
  • Built-in charcoal canister in gas cap for reduced emmisions
  • EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GC
Engine Style
Vertical
Engine Type
4-Cycle OHC
Cylinders
1
Cooling System
Air
Dry Weight
27.6 Lbs
CC
187 CCs
HP
5.1 HP
Net Torque
8.3 Lbs
Cylinder Bore Type
Aluminum
Bore
2.70 Inches
Stroke
2.0 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Overview
Weight
27 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.4" Inches
Product Width
13" Inches
Product Height
13.8" Inches

Features
Features
  • Model# GCV190AS3L - 25mm x 3-5/32" Crankshaft (N3 Type)
  • 2-Year Consumer & 90-Day Commercial Warranty
  • Vertical crankshaft ideal for walk behind lawn mowers & chipper/vacs
  • Honda GCV190™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 8.3 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Cam (OHC) Technology
  • Compact, lighter and stronger for efficient, proven performance
  • DuaLube™ System & Lifetime Timing Belt Design
  • Governor slinger paddles & oil-delivering timing belt for full engine lubrication
  • Less weight, better lubrication and quieter operation
  • Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, your shoulder will thank you
  • Single-Element Air Filter, Cross-Flow Intake Port & Electric Iginition
  • Insures easier starting with a reliable spark and fuel flow
  • Simple To Maintain & Service
  • Easy access oil drain / fill ports & optimized spark plug location
  • .25-Gallon Plastic Fuel Tank
  • Built-in charcoal canister in gas cap for reduced emmisions
  • EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GC
Engine Style
Vertical
Engine Type
4-Cycle OHC
Cylinders
1
Cooling System
Air
Dry Weight
27.6 Lbs
CC
187 CCs
HP
5.1 HP
Net Torque
8.3 Lbs
Cylinder Bore Type
Aluminum
Bore
2.70 Inches
Stroke
2.0 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Overview
Weight
27 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.4" Inches
Product Width
13" Inches
Product Height
13.8" Inches
Product Specs
+
Specifications
Engine
Engine Series
Honda GC
Engine Style
Vertical
Engine Type
4-Cycle OHC
Cylinders
1
Cooling System
Air
Dry Weight
27.6 Lbs
CC
187 CCs
HP
5.1 HP
Net Torque
8.3 Lbs
Cylinder Bore Type
Aluminum
Bore
2.70 Inches
Stroke
2.0 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Overview
Weight
27 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.4" Inches
Product Width
13" Inches
Product Height
13.8" Inches
