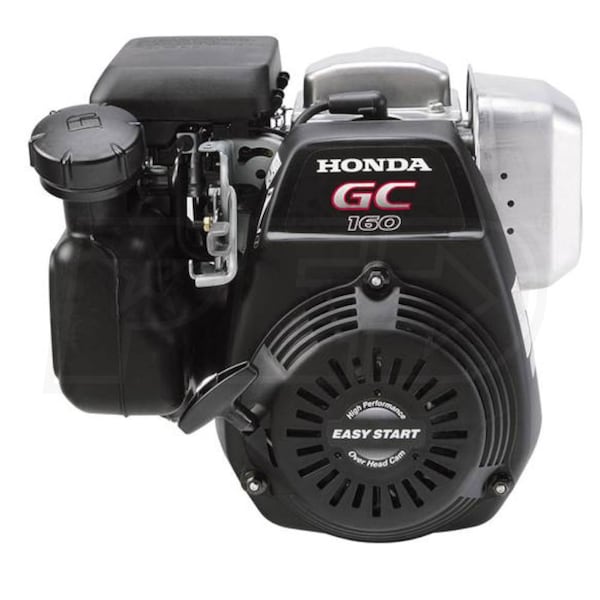

Honda GC160 160cc Horizontal Engine, 3/4" x 2-7/16" Crankshaft (Q Type)
Model: GC160LA-QHG
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Model# GC160LA-QHA - 3/4" x 2-7/16" Crankshaft (Q Type)
- 2-Year Consumer & 90-Day Commercial Warranty
- Vertical crankshaft ideal for walk behind lawn mowers & chipper/vacs
- Honda GCV160™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 6.9 ft-lbs of torque @ 2500 RPM - Power levels are stated Net Torque
- Overhead Cam (OHC) Technology
- Compact, lighter and stronger for efficient, proven performance
- Dua-Lube™ System & Lifetime Timing Belt Design
- Recoil Starter w/ Automatic Mechanical De-Compression System
- Requires less pulling force- your shoulder will thank you
- Single-Element Air Filter, Cross-Flow Intake Port & Electric Ignition
- Assures easier starting with a reliable spark and fuel flow
- Simple To Maintain & Service
- Easy access oil drain/fill ports & optimized spark plug location
- 1.9 Gallon Plastic Fuel Tank
- Built-in charcoal canister in gas cap for reduced emmisions
- EPA & CARB Compliant
- Model GC160LA-QHA Replaces Model GC160LA-QHG
Specifications
Engine
Engine Series
Honda GC
Engine Style
Vertical
Engine Type
4-Cycle OHC
Cylinders
1
Cooling System
Air
Dry Weight
25.4 Lbs
CC
160 CCs
HP
4.6 HP
Net Torque
6.9 Lbs
Cylinder Bore Type
Aluminum
Bore
2.5 Inches
Stroke
2.0 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Starting System
12-Volt w/ Recoil Backup
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
1.9 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
25.4 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
12.2 Inches
Product Width
14.3 Inches
Product Height
13.6 Inches
Additional Model Numbers
GC160LA-QHA, GC160LA-QHG
Features
Features
- Model# GC160LA-QHA - 3/4" x 2-7/16" Crankshaft (Q Type)
- 2-Year Consumer & 90-Day Commercial Warranty
- Vertical crankshaft ideal for walk behind lawn mowers & chipper/vacs
- Honda GCV160™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 6.9 ft-lbs of torque @ 2500 RPM - Power levels are stated Net Torque
- Overhead Cam (OHC) Technology
- Compact, lighter and stronger for efficient, proven performance
- Dua-Lube™ System & Lifetime Timing Belt Design
- Recoil Starter w/ Automatic Mechanical De-Compression System
- Requires less pulling force- your shoulder will thank you
- Single-Element Air Filter, Cross-Flow Intake Port & Electric Ignition
- Assures easier starting with a reliable spark and fuel flow
- Simple To Maintain & Service
- Easy access oil drain/fill ports & optimized spark plug location
- 1.9 Gallon Plastic Fuel Tank
- Built-in charcoal canister in gas cap for reduced emmisions
- EPA & CARB Compliant
- Model GC160LA-QHA Replaces Model GC160LA-QHG
Specifications
Engine
Engine Series
Honda GC
Engine Style
Vertical
Engine Type
4-Cycle OHC
Cylinders
1
Cooling System
Air
Dry Weight
25.4 Lbs
CC
160 CCs
HP
4.6 HP
Net Torque
6.9 Lbs
Cylinder Bore Type
Aluminum
Bore
2.5 Inches
Stroke
2.0 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Starting System
12-Volt w/ Recoil Backup
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
1.9 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
25.4 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
12.2 Inches
Product Width
14.3 Inches
Product Height
13.6 Inches
Additional Model Numbers
GC160LA-QHA, GC160LA-QHG
Product Specs
+−
Specifications
Engine
Engine Series
Honda GC
Engine Style
Vertical
Engine Type
4-Cycle OHC
Cylinders
1
Cooling System
Air
Dry Weight
25.4 Lbs
CC
160 CCs
HP
4.6 HP
Net Torque
6.9 Lbs
Cylinder Bore Type
Aluminum
Bore
2.5 Inches
Stroke
2.0 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Starting System
12-Volt w/ Recoil Backup
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.5 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
1.9 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
25.4 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
12.2 Inches
Product Width
14.3 Inches
Product Height
13.6 Inches
Additional Model Numbers
GC160LA-QHA, GC160LA-QHG
