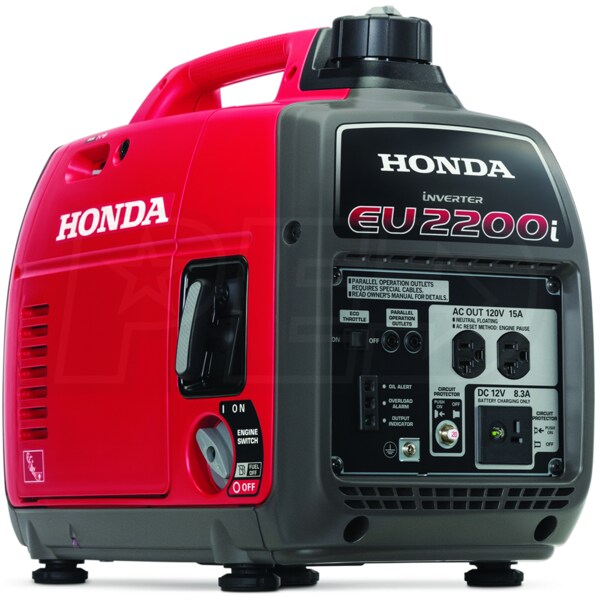

Honda EU2200i - 1800 Watt Portable Inverter Generator (CARB)
Honda EU2200i - 1800 Watt Portable Inverter Generator (CARB)
+
Share This Product
-
Product Description
-
57Reviews
-
8Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
1,800
Rated Watts
Surge Watts
2,200
Starting Watts
Fuel
Engine
Grade
Recreational
Style
Portable
Run Watts
1,800
Surge Watts
2,200 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- New Honda EU2200i Super Quiet Series Inverter Generator
- Replaces the EU2000i with extra power and improved performance
- Honda Advanced Inverter Technology
- Microprocessor controlled to operate sensitive electronics
- Stable, clean power in a smaller, lighter package
- Honda GXR120 OHC 4-Cycle Engine w/ Oil Alert® Warning System
- Provides smooth, fuel efficient and quiet operation
- Shuts the engine down if oil reaches an unsafe operating level
- Eco Throttle™ - Runs Up To 7.5 Hours On .95 Gallons Of Fuel
- Auto adjusts engine speed to the optimum level depending on load
- Two-Tiered Noise Dampening System
- Provides super quiet operation - 53 to 62 dB(A)
- Ideal for camping & supplemental RV power
- Engineered For Easier Starting
- Light effort recoil starter & color-coded start-up points
- Built-In Fuel Shut-Off Valve
- Prevents stale fuel by allowing engine to run when fuel supply is off
- Parallel Operation Capability*
- (2) EU2000i/EU2200i generators can be linked in parallel
- Increase available wattage through the generator outlets
- Easier Maintenance
- Large spout and oil drain gutter for quick, easy oil changes
- 12V DC Outlet
- Great for charging batteries (Cables Not Included)
- USDA-Qualified Spark Arrestor/Muffler
- Helps prevent fires in dry conditions
- Engine Oil NOT Included
- 3 Year Residential & Commercial Warranty
- *Please See Doc For Parallel Operation
- ***Please Note - Not For Resale***
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
1800 Watts
Surge Watts
2200 Watts
Fuel Type
Gasoline
Rated Amps
15 Amps
Tank Size
0.95 Gallons
Fuel Tank Material
Plastic
Fuel Gauge
No
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Grade Type
Recreational
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
121 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
46.3 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
20.1 Inches
Product Width
11.4 Inches
Product Height
16.7 Inches
UPC
786102008495
Additional Model Numbers
EU2200I, EU2200i
Plugs
8.3-Amp DC
1
NEMA 5-20R - Wall-Type
1
Grade
Style
Run Watts
1,800
Rated Watts
Surge Watts
2,200
Starting Watts
Fuel
Engine
Grade
Recreational
Style
Portable
Run Watts
1,800
Surge Watts
2,200 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- New Honda EU2200i Super Quiet Series Inverter Generator
- Replaces the EU2000i with extra power and improved performance
- Honda Advanced Inverter Technology
- Microprocessor controlled to operate sensitive electronics
- Stable, clean power in a smaller, lighter package
- Honda GXR120 OHC 4-Cycle Engine w/ Oil Alert® Warning System
- Provides smooth, fuel efficient and quiet operation
- Shuts the engine down if oil reaches an unsafe operating level
- Eco Throttle™ - Runs Up To 7.5 Hours On .95 Gallons Of Fuel
- Auto adjusts engine speed to the optimum level depending on load
- Two-Tiered Noise Dampening System
- Provides super quiet operation - 53 to 62 dB(A)
- Ideal for camping & supplemental RV power
- Engineered For Easier Starting
- Light effort recoil starter & color-coded start-up points
- Built-In Fuel Shut-Off Valve
- Prevents stale fuel by allowing engine to run when fuel supply is off
- Parallel Operation Capability*
- (2) EU2000i/EU2200i generators can be linked in parallel
- Increase available wattage through the generator outlets
- Easier Maintenance
- Large spout and oil drain gutter for quick, easy oil changes
- 12V DC Outlet
- Great for charging batteries (Cables Not Included)
- USDA-Qualified Spark Arrestor/Muffler
- Helps prevent fires in dry conditions
- Engine Oil NOT Included
- 3 Year Residential & Commercial Warranty
- *Please See Doc For Parallel Operation
- ***Please Note - Not For Resale***
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
1800 Watts
Surge Watts
2200 Watts
Fuel Type
Gasoline
Rated Amps
15 Amps
Tank Size
0.95 Gallons
Fuel Tank Material
Plastic
Fuel Gauge
No
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Grade Type
Recreational
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
121 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
46.3 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
20.1 Inches
Product Width
11.4 Inches
Product Height
16.7 Inches
UPC
786102008495
Additional Model Numbers
EU2200I, EU2200i
Plugs
8.3-Amp DC
1
NEMA 5-20R - Wall-Type
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
1800 Watts
Surge Watts
2200 Watts
Fuel Type
Gasoline
Rated Amps
15 Amps
Tank Size
0.95 Gallons
Fuel Tank Material
Plastic
Fuel Gauge
No
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Grade Type
Recreational
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
121 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
46.3 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
20.1 Inches
Product Width
11.4 Inches
Product Height
16.7 Inches
UPC
786102008495
Additional Model Numbers
EU2200I, EU2200i
Plugs
8.3-Amp DC
1
NEMA 5-20R - Wall-Type
1
Product Q&A
(8)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Will it power a normal home sump pump?
Timothy P.
from Wisconsin
October 02, 2019
Answer
Surprisingly, sump pumps vary quite a bit in their power requirements. Generally speaking, this generator should be enough for most 1/3HP but to know for sure, it is best to check the amp draw of your specific pump.
+−
how much does the eu2200-1800 weigh?
Jim
from Florida
June 08, 2019
Answer
The generator weighs 46.3 lbs.
+−
What voltage does this inverter generate and what voltages does it invert it to?
Joe
from Michigan
June 01, 2019
Answer
The inverter generators basically convert the voltage to DC and then back to A/C voltage. This allows the PC Board inside the unit to clean up the power making it safe for use with sensitive electronics. The output of this generator is still 120 volts.
+−
How many decibels is this unit?
Loren
from Minnesota
August 22, 2018
Answer
This model is rated at 53-62 decibels, depending on the load.
+−
How long will it run on one tank of fuel?
John
from Mississippi
August 18, 2018
Answer
The EU2200i has a .95 gallon fuel tank and Honda advertises that you will receive up to 7.5 hours when operating at a lesser load allowing you to take advantage of the Eco Throttle. Eco Throttle will allow the engine's RPM to adjust to receive optimum fuel efficiency at a lesser load.
+−
Can the generator be used indoors?
Bill
from Florida
July 23, 2018
Answer
The Honda EU2200i units MUST be run outside due to the unit producing Carbon Monoxide. The only indoor units we offer are the solar units from Kohler (EnCube) or Goal Zero.
+−
Regarding the on / off turn switch, if you turn it to the turn fuel off position instead of all the way to off, will it run till the carb is out of fuel for transporting? Or do you have to turn it all the way to off to shut the fuel off at the same time then have to drain the carb for transporting?
Phil
from Florida
June 20, 2018
Answer
The EU2200i is set up so you can turn that fuel switch off and run the generator so it will burn the fuel remaining in the carb. This is designed to prevent the fuel spilling out when moving it around or old fuel sitting in the carb and gumming it up preventing issues down the road. You would want to turn the fuel switch off when the unit is running to have the fuel burned out of the carb. The generator would turn off when all of the fuel is burned out and doing so would not damage the unit.
+−
The instructions for the parallel cable kit refer to upper and lower positions, however my generators have side by side positions. Where do the red and green cables attach?
George
from Florida
May 22, 2018
Answer
1. Connect the black left cable ("L" marked on the connector) to the left-hand parallel outlet on each generator.
2. Connect the red right cable ("R" marked on the connector) to the right-hand parallel outlet on each generator.
3. Attach the ground terminal (green cable) to each generator and tighten the ground screws securely.
If you have any other questions about this or other products from our website, don't hesitate to give us a call.
2. Connect the red right cable ("R" marked on the connector) to the right-hand parallel outlet on each generator.
3. Attach the ground terminal (green cable) to each generator and tighten the ground screws securely.
If you have any other questions about this or other products from our website, don't hesitate to give us a call.
