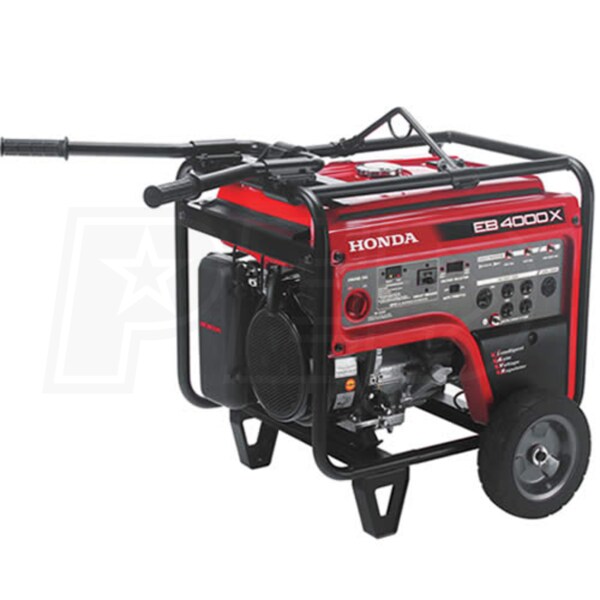

Honda EB4000 - 3500 Watt Portable Industrial Generator w/ GFCI Protection (CARB)
Honda EB4000 - 3500 Watt Portable Industrial Generator w/ GFCI Protection (CARB)
+
Share This Product
-
Product Description
-
3Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
3,500
Rated Watts
Surge Watts
4,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
3,500
Surge Watts
4,000 Starting Watts
Fuel
Gasoline
Engine
Honda iGX
Features
Features
- Honda iGX OHV Commercial Grade Engine
- Digital CDI ignition system provides improved ignition timing
- Integrated ECU with a self-tuning regulator/governor system
- iAVR (Intelligent Automatic Voltage Regulator)
- Provides up to 5000 watts for 10 seconds
- Ensures a consistent flow of power regardless of load
- Protection for sensitive equipment and reliable power for you
- Oil Alert® Warning System
- Shuts the engine down if oil reaches an unsafe operating level
- Voltage Selector Switch - 120/240V Operation
- Gives you more usable power and added flexibility
- All Circuits GFCI Protected
- Requires GFCI Manual Transfer Panel
- Extended Run Time
- Runs about 16 hours @ 50% load (6.2 gal.)
- USDA-Qualified Spark Arrestor/Muffler
- Help prevent fires
- Added Features
- Full frame protection, wheel kit, locking handle & lifting eye
- ***Please Note - Not For Resale***
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
3500 Watts
Surge Watts
4000 Watts
Fuel Type
Gasoline
Rated Amps
15 Amps
Portability Kit
Solid Rubber
Tank Size
6.2 Gallons
Run Time @ 50% Load
16 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Grade Type
Professional
Engine
Engine Brand
Honda iGX
Starting System
Recoil Start
CC
270 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
185 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
41.9 Inches
Product Width
27.2 Inches
Product Height
29.2 Inches
UPC
786102005272
Additional Model Numbers
EB4000, EB4000X1
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-20R
1
NEMA L5-30R
1
Grade
Style
Run Watts
3,500
Rated Watts
Surge Watts
4,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
3,500
Surge Watts
4,000 Starting Watts
Fuel
Gasoline
Engine
Honda iGX
Features
Features
- Honda iGX OHV Commercial Grade Engine
- Digital CDI ignition system provides improved ignition timing
- Integrated ECU with a self-tuning regulator/governor system
- iAVR (Intelligent Automatic Voltage Regulator)
- Provides up to 5000 watts for 10 seconds
- Ensures a consistent flow of power regardless of load
- Protection for sensitive equipment and reliable power for you
- Oil Alert® Warning System
- Shuts the engine down if oil reaches an unsafe operating level
- Voltage Selector Switch - 120/240V Operation
- Gives you more usable power and added flexibility
- All Circuits GFCI Protected
- Requires GFCI Manual Transfer Panel
- Extended Run Time
- Runs about 16 hours @ 50% load (6.2 gal.)
- USDA-Qualified Spark Arrestor/Muffler
- Help prevent fires
- Added Features
- Full frame protection, wheel kit, locking handle & lifting eye
- ***Please Note - Not For Resale***
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
3500 Watts
Surge Watts
4000 Watts
Fuel Type
Gasoline
Rated Amps
15 Amps
Portability Kit
Solid Rubber
Tank Size
6.2 Gallons
Run Time @ 50% Load
16 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Grade Type
Professional
Engine
Engine Brand
Honda iGX
Starting System
Recoil Start
CC
270 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
185 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
41.9 Inches
Product Width
27.2 Inches
Product Height
29.2 Inches
UPC
786102005272
Additional Model Numbers
EB4000, EB4000X1
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-20R
1
NEMA L5-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
3500 Watts
Surge Watts
4000 Watts
Fuel Type
Gasoline
Rated Amps
15 Amps
Portability Kit
Solid Rubber
Tank Size
6.2 Gallons
Run Time @ 50% Load
16 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Grade Type
Professional
Engine
Engine Brand
Honda iGX
Starting System
Recoil Start
CC
270 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
185 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
41.9 Inches
Product Width
27.2 Inches
Product Height
29.2 Inches
UPC
786102005272
Additional Model Numbers
EB4000, EB4000X1
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-20R
1
NEMA L5-30R
1
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Does this unit have a 4 wire 30 amp inlet?
Frank D.
from New York
March 06, 2017
Answer
This unit does not have that outlet, and only has a 20-amp 4-prong outlet and a 30-amp 3-prong (120V Only) outlet. The unit also has a two duplex outlets. Owner's Manual.
+−
What is the difference between the Honda EB, EM and EU generators?
Thomas W Murphy
from Wisconsin
June 26, 2014
Answer
Thanks for your inquiry.
The Honda EU series is considered the "Super Quiet" series and range from 1,000 watts to 7,000 watts. These units are totally enclosed and primarily used for recreational purposes.
The Honda EB series are considered "Industrial" and range from 3,000 watts to 10,000 watts. These units have Full GFCI protected outlets to meet OSHA standards on jobsites.
The Honda EM series are considered the "Deluxe" series and range in 4,000 watts to 6,500 watts. These units have electric start and are primarily used for home backup.
The Honda EU series is considered the "Super Quiet" series and range from 1,000 watts to 7,000 watts. These units are totally enclosed and primarily used for recreational purposes.
The Honda EB series are considered "Industrial" and range from 3,000 watts to 10,000 watts. These units have Full GFCI protected outlets to meet OSHA standards on jobsites.
The Honda EM series are considered the "Deluxe" series and range in 4,000 watts to 6,500 watts. These units have electric start and are primarily used for home backup.
