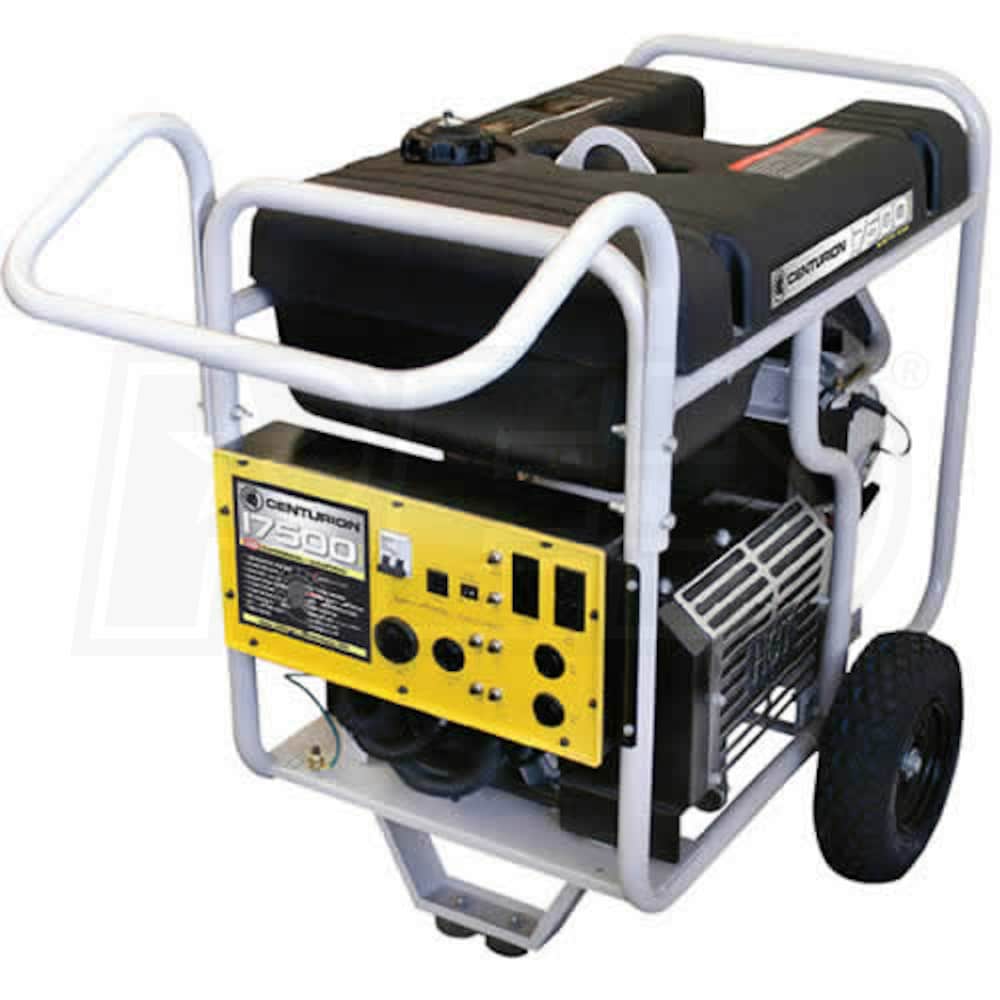

Centurion 17,500 Watt Electric Start Portable Generator

Model:

5396

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Centurion 17,500 Watt Electric Start Portable Generator
Centurion 17,500 Watt Electric Start Portable Generator
Model: 5396
Was $2,799.99
Product Discontinued
Accessories
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

17,500 Rated Watts

Surge Watts

26,250
Starting Watts

Fuel

Gasoline

Engine

Generac

    Specifications

    Plug Types
    12-Amp DC
    NEMA 5-20R (GFCI)
    NEMA L5-20R
    NEMA L5-30R
    NEMA L5-30R
    NEMA L14-30R
    NEMA 14-50R
    5396
    specs product image PID-1265
    Overview
    Weight
    475 Pounds
    Made in USA
    Yes
    Consumer Warranty
    2 Years
    Commercial Warranty
    1 Year
    Product Style
    Portable Generator
    Product Length
    48.5 Inches
    Product Width
    30.75 Inches
    Product Height
    38.5 Inches
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Alternator
    Brushless
    Auto Voltage Regulation
    Yes
    Rated Watts
    17500 Watts
    Surge Watts
    26250 Watts
    Fuel Type
    Gasoline
    Rated Amps
    73 Amps
    Portability Kit
    Pneumatic Wheels
    Tank Size
    16 Gallons
    Run Time @ 50% Load
    10 Hours
    Fuel Tank Material
    Plastic
    Fuel Gauge
    Yes
    Decibel Rating @ 7m Learn More
    Decibel Rating @ 7m
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    Not Measured by Manufacturer
    Idle Control
    Yes
    Hour Meter
    No
    Voltage Meter
    No
    Lifting Eye
    Yes
    Battery
    Included
    Grade Type
    Professional
    Engine
    Engine Brand
    Generac
    Starting System
    12-Volt Button Start
    HP
    33 HP
    Consumer Engine Warranty
    2 Years
    Commercial Engine Warranty
    1 Year
    Engine RPM
    3600 RPM
    Low Oil Alert/Shutdown
    Yes
    Cast Iron Sleeve
    Yes
    Plugs
    12-Amp DC
    1
    NEMA 5-20R - GFCI
    1
    NEMA L5-20R
    1
    NEMA L5-30R
    2
    NEMA L14-30R
    1
    NEMA 14-50R
    1
