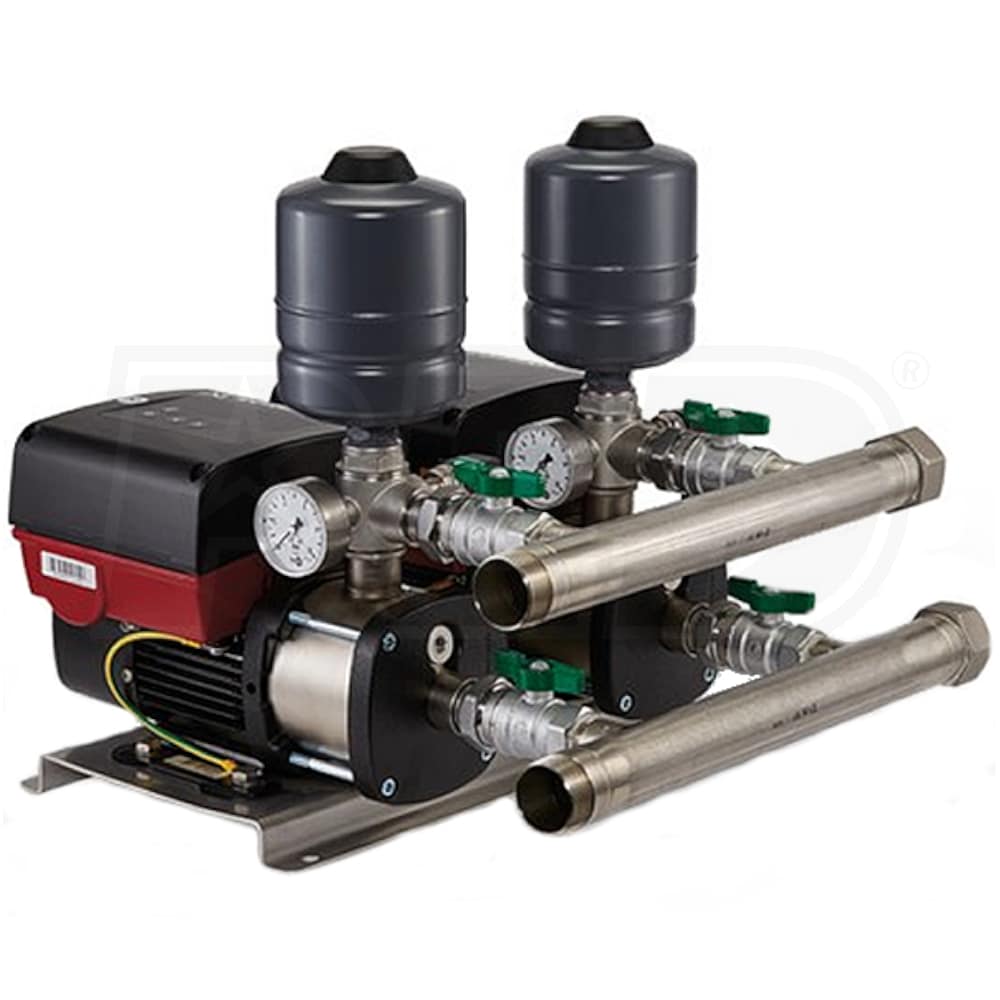

Grundfos CMBE TWIN 3-51 - 52 GPM 1 HP Booster Pump (50' Head) 115V
Model: 99503873
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1"
Style
GPM
52
Gallons
Inlet Size
1"
GPM
52 Gallons
Features
Features
- Grundfos CMBE TWIN 3-51 - 1 HP Booster Pump (115V)
- Designed for water supply and boosting in domestic and light commercial applications
- Great for irrigation and domestic fire suppression
- Up to 52 GPM @ 50' Head*
- Please see documents for sizing, PSI boost & application info
- Cascade Control
- Energy-efficient design adapts to demand
- Automatically turns pump on/off and adjusts pump speed
- Pump Alternation
- Ensures that the operating hours are distributed evenly
- 1 HP MGE Frequency-Controlled Permanent-Magnet Motor (115V)
- Thermally protected, energy-efficient design, only draws 8-Amps (16A Total)
- Integrated Speed Controller
- Allows the pump to keep constant pressure in the pipe system
- Pressure-sensor signals speed controller to adjust motor speed
- Grundfos Eye Control Panel
- Provides easy operation and ability to view system status, warnings, and alarms
- Stainless Steel Pump Housing & Impeller
- Helps minimize corrosion and extend pump life
- Dry-Running Protection
- Prevents damage to pump by a low-water/pressure event
- Quiet Operation
- Produces about 58 dB(A) during normal use and even lower at controlled speed
- 1" Inch Inlet & Outlet (Pump) & 1-1/2" (Manifold)
- Allows for easy connection to residential plumbing systems
- All-In-One Solution
- Includes pump, motor, tank, pressure/flow sensor, controller & check valve
- Also includes base plate and pump manifold
- 15-Foot Power Cord (No Plug)
- Designed for fuse box connection
- Grundfos GO Remote Compatible (Sold Separately)
- Lets you configure, control and alter pump settings with your Android/IOS device
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
16
Thermal Protection
Yes
Power Cord Length
15 Feet
Pump
Gallons Per Minute
52 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Maximum PSI
145
Total Head Lift
170 Feet
Engine
Horsepower
1 hp
Overview
Weight
123 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
20.35 Inches
Product Width
18.51 Inches
Product Height
19.6 Inches
Inlet Size
1"
Style
GPM
52
Gallons
Inlet Size
1"
GPM
52 Gallons
Features
Features
- Grundfos CMBE TWIN 3-51 - 1 HP Booster Pump (115V)
- Designed for water supply and boosting in domestic and light commercial applications
- Great for irrigation and domestic fire suppression
- Up to 52 GPM @ 50' Head*
- Please see documents for sizing, PSI boost & application info
- Cascade Control
- Energy-efficient design adapts to demand
- Automatically turns pump on/off and adjusts pump speed
- Pump Alternation
- Ensures that the operating hours are distributed evenly
- 1 HP MGE Frequency-Controlled Permanent-Magnet Motor (115V)
- Thermally protected, energy-efficient design, only draws 8-Amps (16A Total)
- Integrated Speed Controller
- Allows the pump to keep constant pressure in the pipe system
- Pressure-sensor signals speed controller to adjust motor speed
- Grundfos Eye Control Panel
- Provides easy operation and ability to view system status, warnings, and alarms
- Stainless Steel Pump Housing & Impeller
- Helps minimize corrosion and extend pump life
- Dry-Running Protection
- Prevents damage to pump by a low-water/pressure event
- Quiet Operation
- Produces about 58 dB(A) during normal use and even lower at controlled speed
- 1" Inch Inlet & Outlet (Pump) & 1-1/2" (Manifold)
- Allows for easy connection to residential plumbing systems
- All-In-One Solution
- Includes pump, motor, tank, pressure/flow sensor, controller & check valve
- Also includes base plate and pump manifold
- 15-Foot Power Cord (No Plug)
- Designed for fuse box connection
- Grundfos GO Remote Compatible (Sold Separately)
- Lets you configure, control and alter pump settings with your Android/IOS device
- 2-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
16
Thermal Protection
Yes
Power Cord Length
15 Feet
Pump
Gallons Per Minute
52 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Maximum PSI
145
Total Head Lift
170 Feet
Engine
Horsepower
1 hp
Overview
Weight
123 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
20.35 Inches
Product Width
18.51 Inches
Product Height
19.6 Inches
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
16
Thermal Protection
Yes
Power Cord Length
15 Feet
Pump
Gallons Per Minute
52 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Maximum PSI
145
Total Head Lift
170 Feet
Engine
Horsepower
1 hp
Overview
Weight
123 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
20.35 Inches
Product Width
18.51 Inches
Product Height
19.6 Inches
