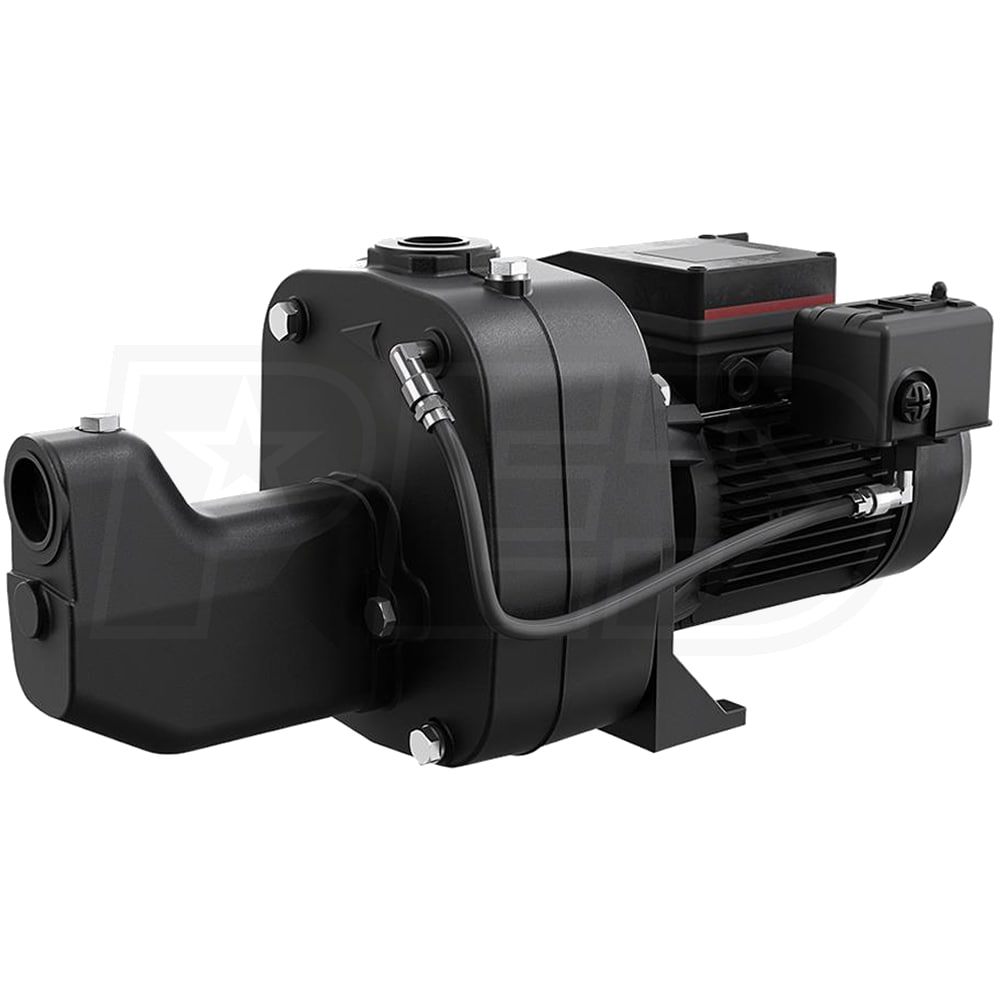

Grundfos JP15S-CI - 18.5 GPM 1.5 HP Cast Iron Shallow Well Jet Pump (119' Rated Head) 230V

Model:

97855091

Write a Review
Grundfos JP15S-CI - 18.5 GPM 1.5 HP Cast Iron Shallow Well Jet Pump (119' Rated Head) 230V
Grundfos JP15S-CI - 18.5 GPM 1.5 HP Cast Iron Shallow Well Jet Pump (119' Rated Head) 230V
Model: 97855091
Call 1 (800) 710-7499 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 12-16 Weeks
Free ShippingBuy Now
Free ShippingVisit Site
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4"

Style

Shallow Well

GPM

18.5 Gallons

  • Grundfos JP15S-CI - 1.5 HP Cast Iron Shallow Well Jet Pump (230V)
  • Ideal for use in pumping at depths of 25' or less

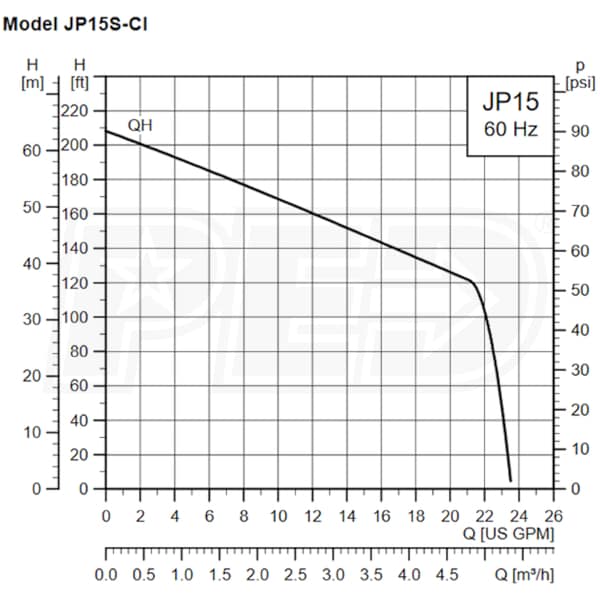

  • Rated 18.5 GPM @ 119' Head Lift; 200' Max Head Lift
  • 230-Volt 1-1/2 HP Grundfos TEFC Motor
  • Built-in thermal overload for motor protection
  • Includes Factory Pre-Wired 40/60 Pressure Switch
  • Allows for easy integration to your current plumbing system
  • Cast Iron Pump Housing
  • Provides longer life compared to thermoplastic pumps
  • Composite Impeller
  • Engineered for increased output, efficiency & quieter operation
  • Ceramic-Carbon Mechanical Seal
  • Provides extended seal life in clear water applications
  • Convenient Priming Plug
  • Self-priming design requires initial water-fill
  • Built-In Ejector Clean-Out Ports
  • Makes it easy to keep this nozzle unclogged and debris free
  • 2-Year Limited Warranty

Specifications

97855091
specs product image PID-80352
Motor
Voltage
230 Volt
Running Amps
8
Thermal Protection
Yes
Pump
Gallons Per Minute
18.5 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
200.1 Feet
Engine
Horsepower
1.5 hp
Accessories
Pressure Switch
Yes
Overview
Weight
70.6 Pounds
Consumer Warranty
2 Years
Product Length
22.13 Inches
Product Width
10.24 Inches
Product Height
10.04 Inches
