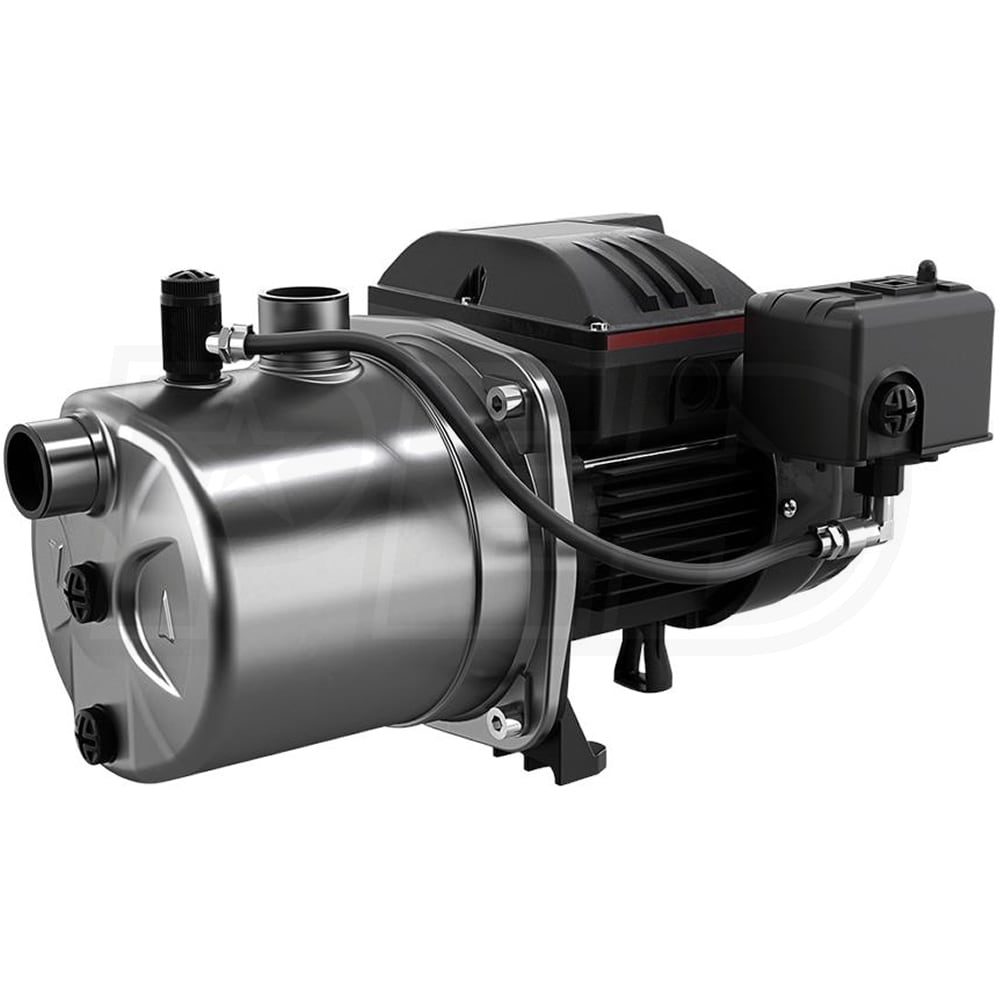

Grundfos JP10S-SS - 15 GPM 1 HP Stainless Steel Shallow Well Jet Pump (103' Rated Head) 115/230V

Grundfos JP10S-SS - 15 GPM 1 HP Stainless Steel Shallow Well Jet Pump (103' Rated Head) 115/230V
Our Price
Compare Prices
Shipping Info
Model: 97855088
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$503.00

Only 1 In-Stock
Ships Thursday, Jul 18th
Shipping Crate Icon
Free Shipping
Free Shipping$503.00Buy Now
Free Shipping$503.00Visit Site
$503.00Visit Site
Only 1 In-Stock
Ships Thursday, Jul 18th
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1"
Style
GPM
15
Gallons
Inlet Size
1"
GPM
15 Gallons
Features
Features
  • Grundfos JP10S-SS - 1 HP Stainless Steel Shallow Well Jet Pump (115/230V)
  • Ideal for use in pumping at depths of 25' or less
  • Rated 15 GPM @ 103' Head Lift; 200' Max Head Lift
  • 115/230-Volt 1 HP Grundfos TEFC Motor
  • Dual-voltage design allows for easy installation
  • Built-in thermal overload for motor protection
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Allows for easy integration to your current plumbing system
  • Stainless Steel Pump Housing
  • Provides increased corrosion-resistance compared to thermoplastic pumps
  • Composite Impeller
  • Engineered for increased output, efficiency & quieter operation
  • Ceramic-Carbon Mechanical Seal
  • Provides extended seal life in clear water applications
  • Convenient Priming Plug
  • Self-priming design requires initial water-fill
  • Built-In Ejector Clean-Out Ports
  • Makes it easy to keep this nozzle unclogged and debris free
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
115-230 Volt
Running Amps
7.1
Thermal Protection
Yes
Pump
Gallons Per Minute
15 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
200.1 Feet
Maximum PSI
87
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
26.5 Pounds
Product Length
16.81 Inches
Product Width
10.39 Inches
Product Height
8.5 Inches
Consumer Warranty
2 Years

Inlet Size
1"
Style
GPM
15
Gallons
Inlet Size
1"
GPM
15 Gallons
Features
Features
  • Grundfos JP10S-SS - 1 HP Stainless Steel Shallow Well Jet Pump (115/230V)
  • Ideal for use in pumping at depths of 25' or less
  • Rated 15 GPM @ 103' Head Lift; 200' Max Head Lift
  • 115/230-Volt 1 HP Grundfos TEFC Motor
  • Dual-voltage design allows for easy installation
  • Built-in thermal overload for motor protection
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Allows for easy integration to your current plumbing system
  • Stainless Steel Pump Housing
  • Provides increased corrosion-resistance compared to thermoplastic pumps
  • Composite Impeller
  • Engineered for increased output, efficiency & quieter operation
  • Ceramic-Carbon Mechanical Seal
  • Provides extended seal life in clear water applications
  • Convenient Priming Plug
  • Self-priming design requires initial water-fill
  • Built-In Ejector Clean-Out Ports
  • Makes it easy to keep this nozzle unclogged and debris free
  • 2-Year Limited Warranty
Specifications
Motor
Voltage
115-230 Volt
Running Amps
7.1
Thermal Protection
Yes
Pump
Gallons Per Minute
15 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
200.1 Feet
Maximum PSI
87
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
26.5 Pounds
Product Length
16.81 Inches
Product Width
10.39 Inches
Product Height
8.5 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Motor
Voltage
115-230 Volt
Running Amps
7.1
Thermal Protection
Yes
Pump
Gallons Per Minute
15 Gallons
Inlet Diameter
1"
Outlet Diameter
1"
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
200.1 Feet
Maximum PSI
87
Engine
Horsepower
1 hp
Accessories
Pressure Switch
Yes
Overview
Weight
26.5 Pounds
Product Length
16.81 Inches
Product Width
10.39 Inches
Product Height
8.5 Inches
Consumer Warranty
2 Years
