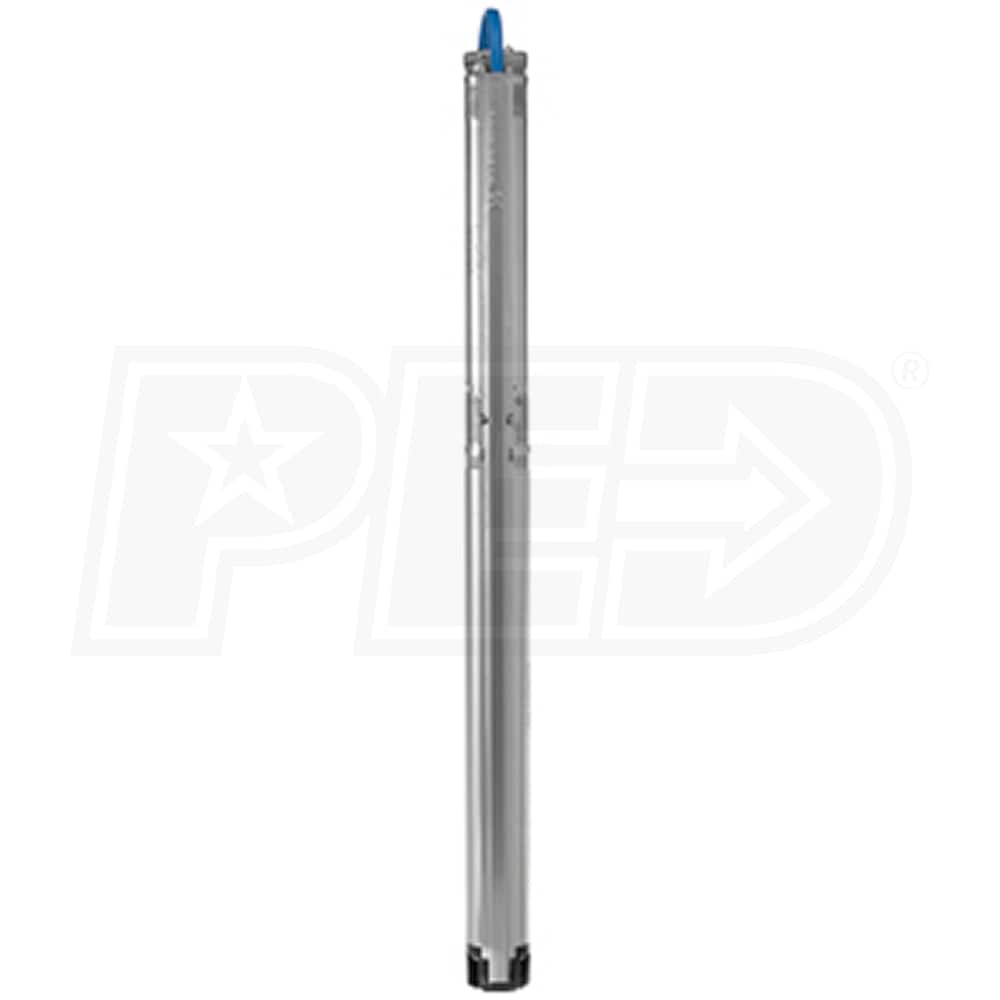

Grundfos 22SQE15-220 - 22 GPM 1-1/2 HP SQE-Series Deep Well Submersible Pump (220' Rated Head) (2W - 200-240V)
Grundfos 22SQE15-220 - 22 GPM 1-1/2 HP SQE-Series Deep Well Submersible Pump (220' Rated Head) (2W - 200-240V)
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style
GPM
22
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
22 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Grundfos 22SQE15-220 - SQE Series 3" Submersible Well Pump (2W - 200-240V)
- Ideal for use with 3" I.D. or larger boreholes
- Rated 22 GPM @ 220' Head Lift
- Please see documents for sizing / pump curve information
- *Requires Grundfos CU 301 Constant Pressure Kit (Not Included) (Model 96438895)
- Constantly adapts pump performance to meet the demand for water
- Can provide constant water pressure from 40 -100 PSI
- 1-1/2 HP Stainless Steel Grundfos "Smart Motor" (2-Wire - 200-240V)
- Variable-speed, electronically controlled, communicates with CU 301 status box
- Highly-efficient Permanent-Magnet (PM) design w/ Thermal overload protection
- Soft Start Design
- Allows for a low starting current with a smooth and steady acceleration
- Low current draw helps reduce wear & provides ability to use smaller gauge wire
- Dry-Running Protection
- Helps extend pump life by preventing pump damage due to lack of water in well
- Highly-Efficient Stainless Steel Pump
- Polyamide reinforced hydraulic pump components for more efficient energy use
- "Floating" Impellers w/ Tungsten Carbide/Ceramic Bearings
- Allows for high wear resistance to sand which extends pump life
- Top-Bearing Upthrust Protection
- Provides added protection to motor/pump during start-up
- Overvoltage & Undervoltage Protection
- Prevents damage to the motor if voltage moves outside rated range
- Overload Protection & Overtemperature Protection
- Reduces Motor RPM or turns off power to motor to prevent damage to motor
- Built-in temperature sensor ensures optimum operating conditions for the motor
- Grundfos GO Remote Compatible (Sold Separately)
- Lets you configure, control and alter pump settings with your Android/IOS device
- 2-Year Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
12.3
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Total Head Lift
348 Feet
Discharge Port Size
1-1/2 Inch
Submersible
Yes
Engine
Horsepower
1.5 hp
Overview
Weight
16 Pounds
Consumer Warranty
2 Years
Product Length
38.2 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
Inlet Size
N/A
Style
GPM
22
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
22 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Grundfos 22SQE15-220 - SQE Series 3" Submersible Well Pump (2W - 200-240V)
- Ideal for use with 3" I.D. or larger boreholes
- Rated 22 GPM @ 220' Head Lift
- Please see documents for sizing / pump curve information
- *Requires Grundfos CU 301 Constant Pressure Kit (Not Included) (Model 96438895)
- Constantly adapts pump performance to meet the demand for water
- Can provide constant water pressure from 40 -100 PSI
- 1-1/2 HP Stainless Steel Grundfos "Smart Motor" (2-Wire - 200-240V)
- Variable-speed, electronically controlled, communicates with CU 301 status box
- Highly-efficient Permanent-Magnet (PM) design w/ Thermal overload protection
- Soft Start Design
- Allows for a low starting current with a smooth and steady acceleration
- Low current draw helps reduce wear & provides ability to use smaller gauge wire
- Dry-Running Protection
- Helps extend pump life by preventing pump damage due to lack of water in well
- Highly-Efficient Stainless Steel Pump
- Polyamide reinforced hydraulic pump components for more efficient energy use
- "Floating" Impellers w/ Tungsten Carbide/Ceramic Bearings
- Allows for high wear resistance to sand which extends pump life
- Top-Bearing Upthrust Protection
- Provides added protection to motor/pump during start-up
- Overvoltage & Undervoltage Protection
- Prevents damage to the motor if voltage moves outside rated range
- Overload Protection & Overtemperature Protection
- Reduces Motor RPM or turns off power to motor to prevent damage to motor
- Built-in temperature sensor ensures optimum operating conditions for the motor
- Grundfos GO Remote Compatible (Sold Separately)
- Lets you configure, control and alter pump settings with your Android/IOS device
- 2-Year Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
12.3
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Total Head Lift
348 Feet
Discharge Port Size
1-1/2 Inch
Submersible
Yes
Engine
Horsepower
1.5 hp
Overview
Weight
16 Pounds
Consumer Warranty
2 Years
Product Length
38.2 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
Product Specs
+−
Specifications
Motor
Voltage
240 Volt
Running Amps
12.3
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Total Head Lift
348 Feet
Discharge Port Size
1-1/2 Inch
Submersible
Yes
Engine
Horsepower
1.5 hp
Overview
Weight
16 Pounds
Consumer Warranty
2 Years
Product Length
38.2 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
