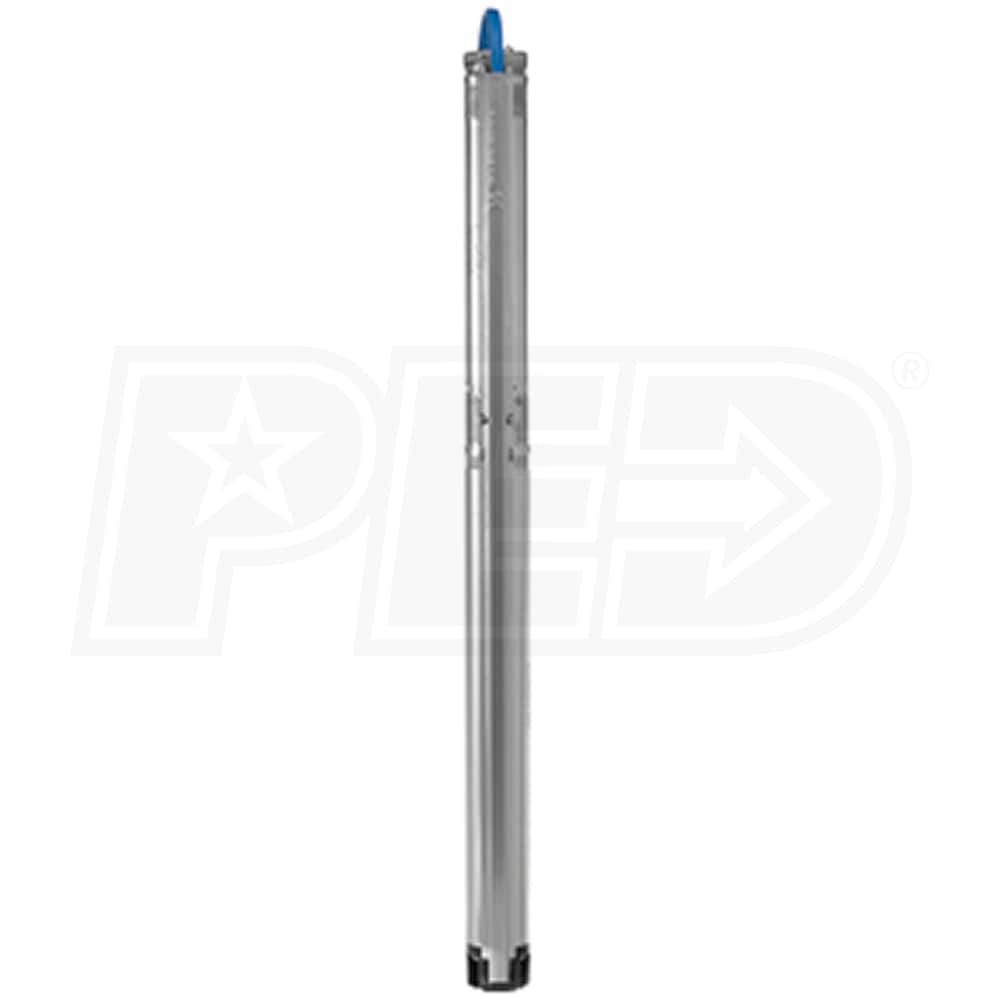

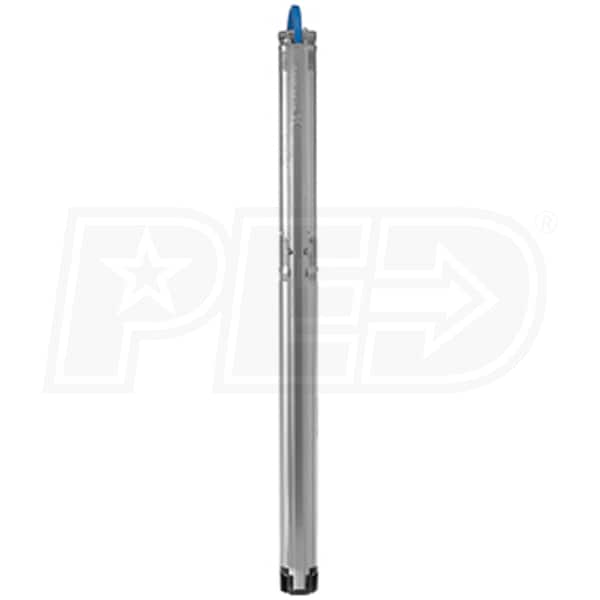

Grundfos 30SQ10-130 - 30 GPM 1 HP SQ-Series Deep Well Submersible Pump (130' Rated Head) (2W - 200-240V)

Grundfos 30SQ10-130 - 30 GPM 1 HP SQ-Series Deep Well Submersible Pump (130' Rated Head) (2W - 200-240V)
Our Price
Compare Prices
Shipping Info
Model: 96160161
(Based on expert analysis, manufacturer ratings and customer reviews)
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews (1)
Write A Review
$1,028.00
Ships in 2-5 Business Days
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping$1,028.00Buy Now
Free Shipping$1,028.00Visit Site
$1,028.00Visit Site
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Deep Well
GPM
30
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
30 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Grundfos 30SQ10-130 - SQ Series 3" Submersible Well Pump (2W - 200-240V)
  • Ideal for use with 3" I.D. or larger boreholes
  • Rated 30 GPM @ 130' Head Lift

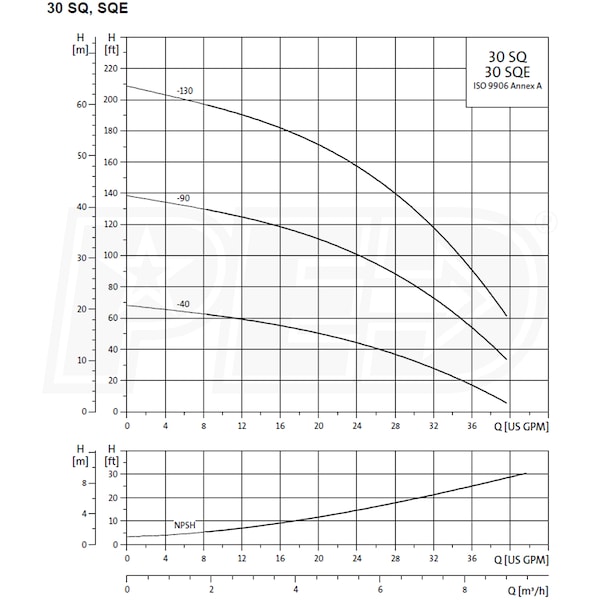

  • Please see documents for sizing / pump curve information
  • 1 HP Permanent-Magnet (PM) Stainless Steel Motor (2-Wire - 200-240V)
  • Highly-efficient design with thermal overload protection for added safety
  • Fitted with a replaceable cable plug for ease of use
  • Soft Start Design
  • Allows for a low starting current with a smooth and steady acceleration
  • Low current draw helps reduce wear & provides ability to use smaller gauge wire
  • Dry-Running Protection
  • Helps extend pump life by preventing pump damage due to lack of water in well
  • Highly-Efficient Stainless Steel Pump
  • Polyamide reinforced hydraulic pump components for more efficient energy use
  • "Floating" Impellers w/ Tungsten Carbide/Ceramic Bearings
  • Allows for high wear resistance to sand which extends pump life
  • Top-Bearing Upthrust Protection
  • Provides added protection to motor/pump during start-up
  • Overvoltage & Undervoltage Protection
  • Prevents damage to the motor if voltage moves outside rated range
  • Overload Protection
  • Reduces Motor RPM or turns off power to motor to prevent damage to motor
  • Overtemperature Protection
  • Built-in temperature sensor ensures optimum operating conditions for the motor
  • 2-Year Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
11.2
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
30 Gallons
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Total Head Lift
208 Feet
Discharge Port Size
1-1/2 Inch
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
13 Pounds
Product Length
35 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
Consumer Warranty
2 Years

Inlet Size
N/A
Style
Deep Well
GPM
30
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
30 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Grundfos 30SQ10-130 - SQ Series 3" Submersible Well Pump (2W - 200-240V)
  • Ideal for use with 3" I.D. or larger boreholes
  • Rated 30 GPM @ 130' Head Lift
  • Please see documents for sizing / pump curve information
  • 1 HP Permanent-Magnet (PM) Stainless Steel Motor (2-Wire - 200-240V)
  • Highly-efficient design with thermal overload protection for added safety
  • Fitted with a replaceable cable plug for ease of use
  • Soft Start Design
  • Allows for a low starting current with a smooth and steady acceleration
  • Low current draw helps reduce wear & provides ability to use smaller gauge wire
  • Dry-Running Protection
  • Helps extend pump life by preventing pump damage due to lack of water in well
  • Highly-Efficient Stainless Steel Pump
  • Polyamide reinforced hydraulic pump components for more efficient energy use
  • "Floating" Impellers w/ Tungsten Carbide/Ceramic Bearings
  • Allows for high wear resistance to sand which extends pump life
  • Top-Bearing Upthrust Protection
  • Provides added protection to motor/pump during start-up
  • Overvoltage & Undervoltage Protection
  • Prevents damage to the motor if voltage moves outside rated range
  • Overload Protection
  • Reduces Motor RPM or turns off power to motor to prevent damage to motor
  • Overtemperature Protection
  • Built-in temperature sensor ensures optimum operating conditions for the motor
  • 2-Year Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
11.2
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
30 Gallons
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Total Head Lift
208 Feet
Discharge Port Size
1-1/2 Inch
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
13 Pounds
Product Length
35 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Running Amps
11.2
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
30 Gallons
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Total Head Lift
208 Feet
Discharge Port Size
1-1/2 Inch
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
13 Pounds
Product Length
35 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
Consumer Warranty
2 Years
