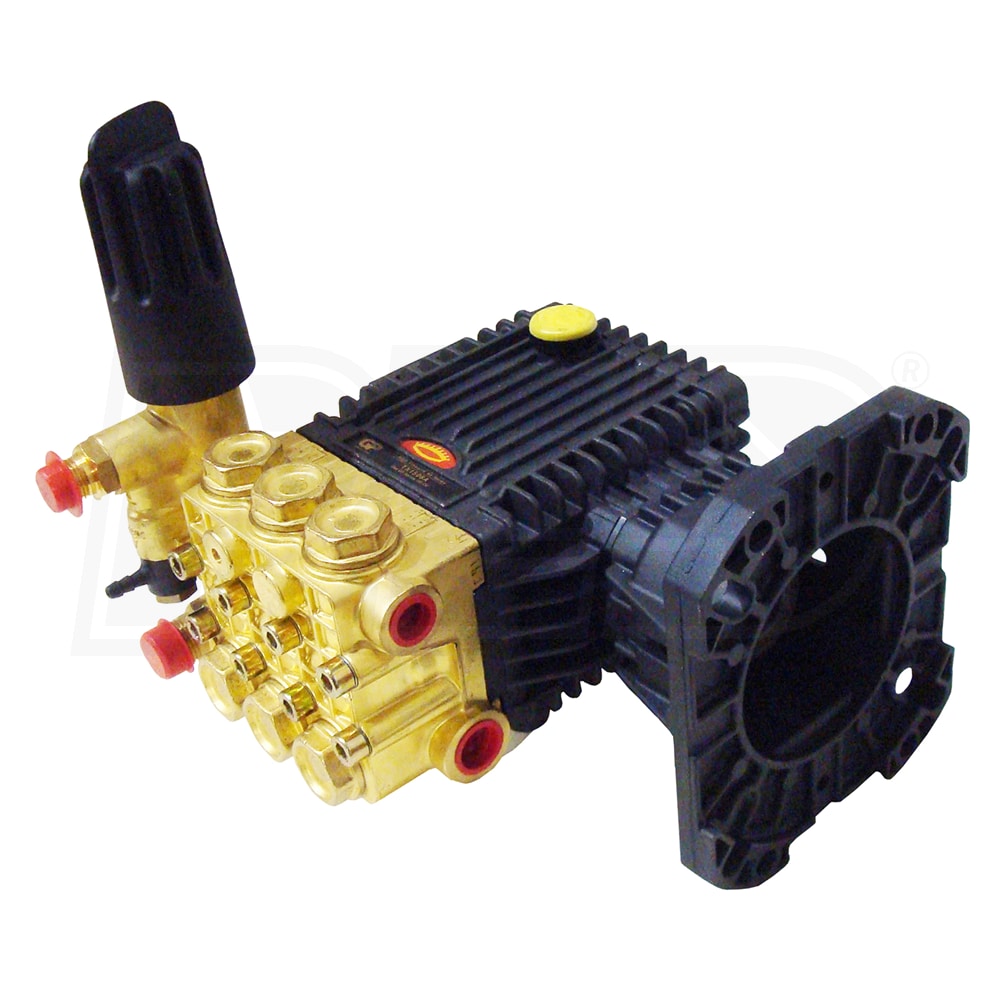

General Pump Series 63 3000 PSI 3 GPM Triplex Pressure Washer Pump w/ Unloader & Injector

Model:

TX1508G8UIA

Write A Review
$359.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

General Pump Series 63 3000 PSI 3 GPM Triplex Pressure Washer Pump w/ Unloader & Injector
General Pump Series 63 3000 PSI 3 GPM Triplex Pressure Washer Pump w/ Unloader & Injector
Model: TX1508G8UIA
$359.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Gas

Inflow

1/2" Threaded (Female)

Outflow

3/8" Threaded (Male)

  • High Quality Replacement For Worn Out Pumps
  • Consumer grade is ideal for all general cleaning applications
  • Direct drive for convenience and durablility
  • Triplex Plunger Pump With Solid White Ceramic Plungers
  • Runs cooler and lasts longer than axial pumps
  • Next generation packings for exceptional seal life
  • Built In Pressure Trapping Unloader And Injector
  • Adjustable pressure is handy and versatile
  • Injector allows use of any pressure washer safe detergent
  • Oversized Connecting Rods
  • Can handle up to 3400 RPM
  • 1" Hollow Shaft And J609-b Motor Flange
  • Inlet port thread 1/2"*14 BSP-F
  • Discharge port thread 3/8"-19 BSP-F
  • Maximum fluid temperature 160 degrees F
  • Bore .591 in. / 15 mm, stroke .315 in. / 8mm
  • 14 ounce oil capacity
  • Be Sure To Measure Shaft And Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • Ships as shown; you will need to re-use your mounting bolts, connectors & siphon tube or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

TX1508G8UIA
specs product image PID-3223
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
Chemical Injection
Siphon Tube
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
18.2 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
11.3 Inches
Product Width
9.5 Inches
Product Height
9.1 Inches
UPC
682491016977
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Accessory Grade
Consumer
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Male)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4
Rated PSI
3000 PSI
