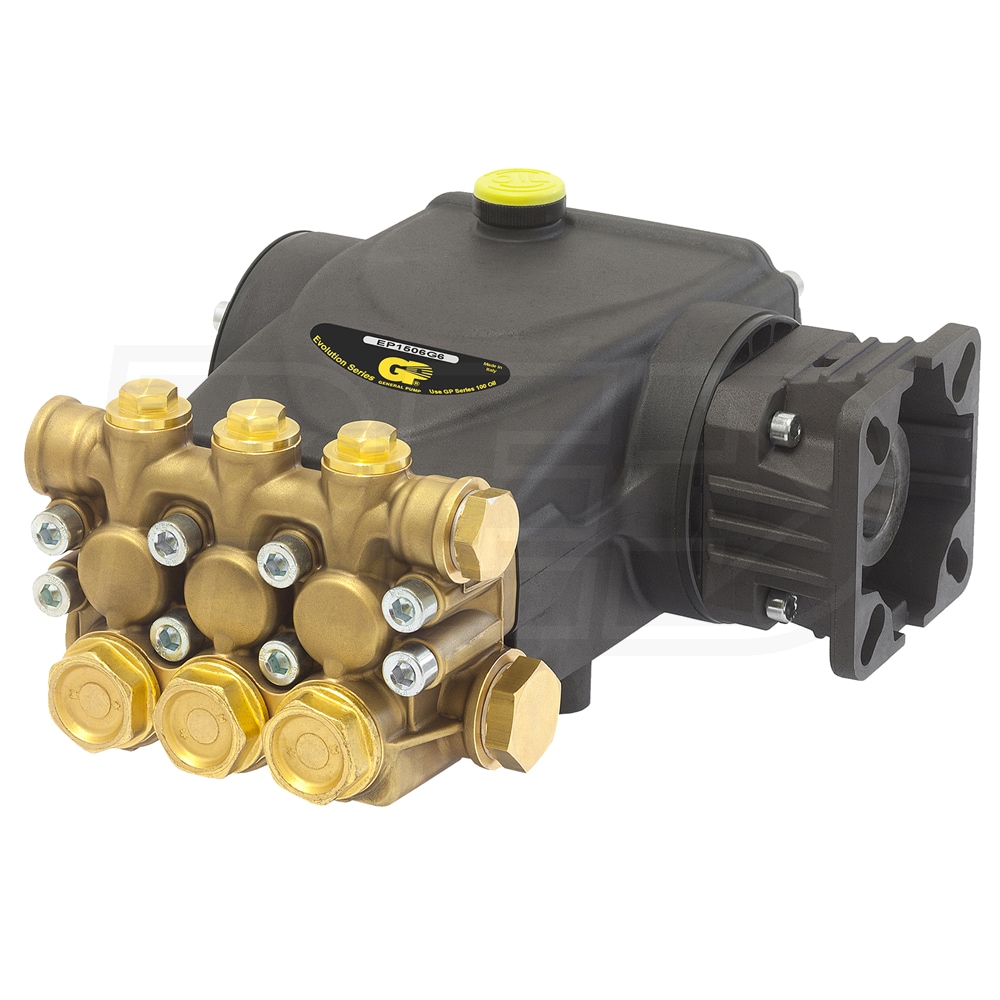

General Pump Evolution Series 3045 PSI 2.9 GPM (3/4" Shaft) Triplex Pressure Washer Pump

Model:

EP1506G6

Write A Review
$351.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

General Pump Evolution Series 3045 PSI 2.9 GPM (3/4
General Pump Evolution Series 3045 PSI 2.9 GPM (3/4" Shaft) Triplex Pressure Washer Pump
Model: EP1506G6
$351.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Inflow

1/2" Threaded (Female)

Outflow

3/8" Threaded (Female)

  • Quality Replacement For Worn Out Pumps
  • New forged brass manifold increases working pressure to 3045 PSI
  • New Pump Design
  • Connecting rods reduce specific pressure & improve lubrication
  • Solid Ceramic Plungers With Dual Guide System
  • Ceramic runs cooler & lasts longer; can be rebuilt
  • New plunger guide assembly reduces friction, extends seal life (patent pending)
  • Durable Components
  • Oversized forged crankshaft & crankshaft key increase performance
  • Optimized outlet valves deliver better volumetric efficiency
  • Large Diameter Sight Glass
  • Easier oil checking; dipstick with breather for easier maintenance
  • Large 15 oz. oil capacity means better cooling & lubrication

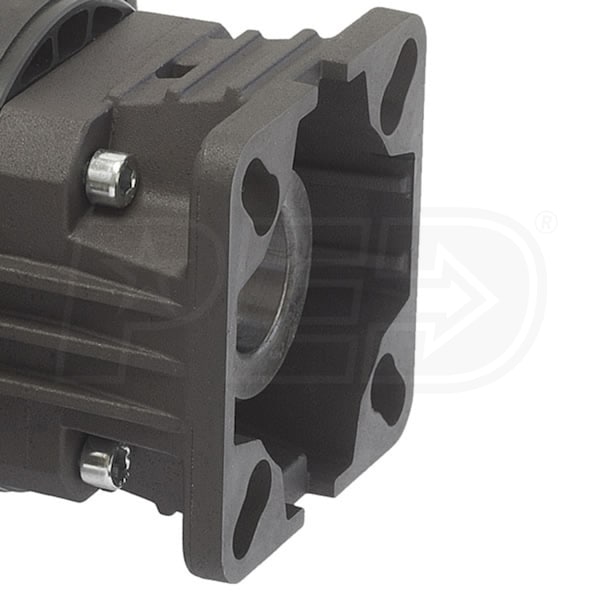

  • SAE J609A Gas Engine Mounting Flange
  • Maximum 3045 PSI, 2.9 gallons per minute, up to 165°F
  • Pump ships as shown; you will need to re-use your connectors or purchase them separately
  • Shaft diameter .750 inches (19 mm)
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps

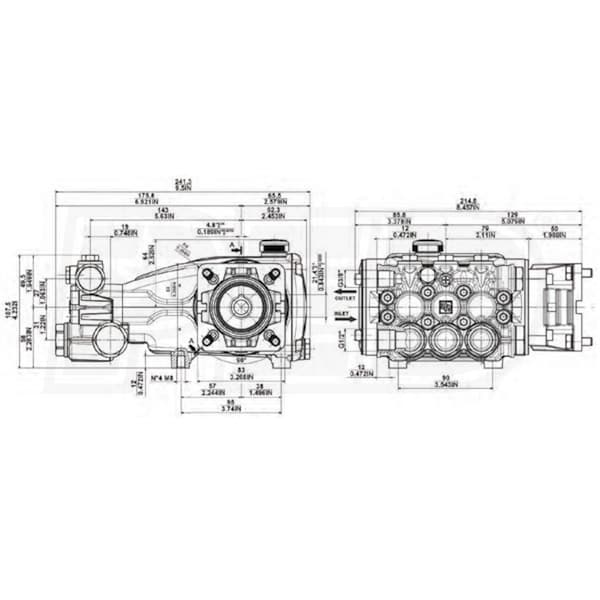

  • (Dimensions can be downloaded under the Specs tab in Manual PDF)
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EP1506G6
specs product image PID-68389
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
15.4 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Dimensions
9.5L x 8.45W x 5.1H
UPC
682491066248
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
3/4
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
2.9
Rated PSI
3045 PSI
