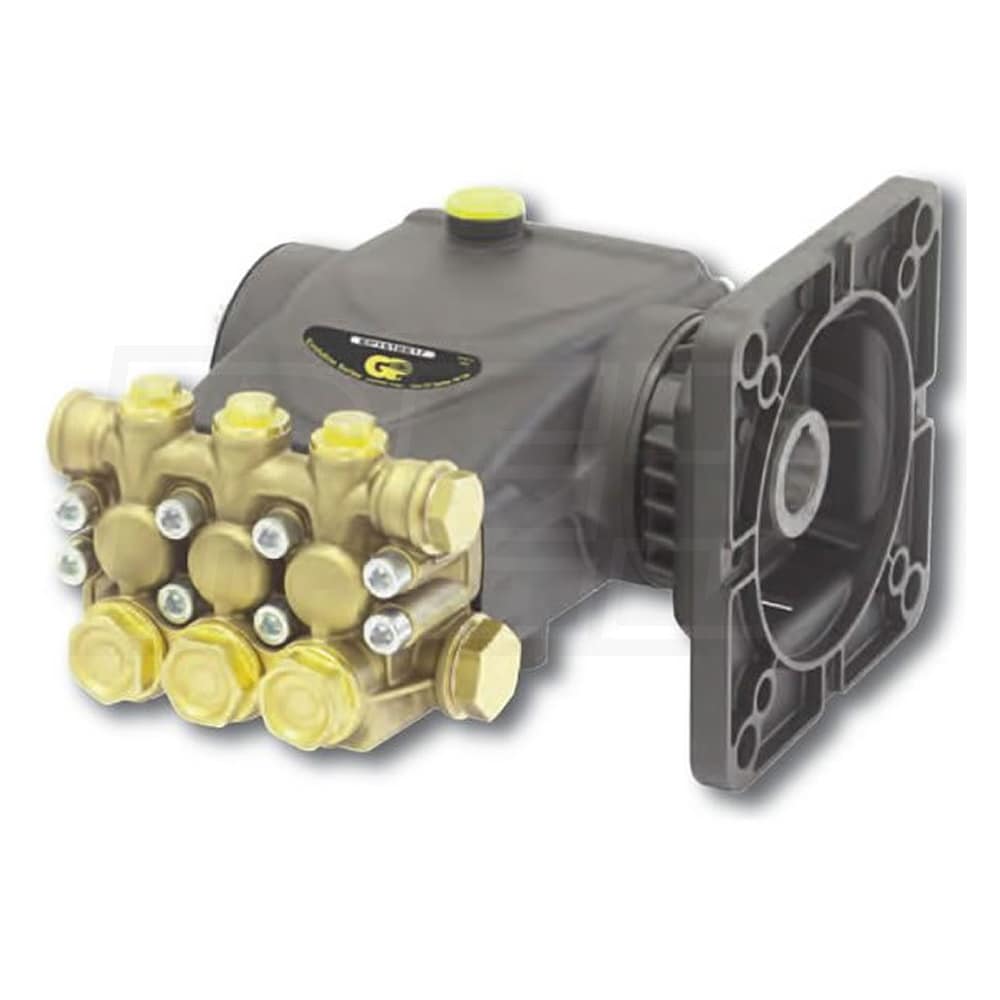

General Pump Evolution 2500 PSI 4 GPM (Shaft Electric Flange) Triplex Pressure Washer Pump (1750 RPM)

Model:

E1812E17

Write A Review
$354.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

General Pump Evolution 2500 PSI 4 GPM (Shaft Electric Flange) Triplex Pressure Washer Pump (1750 RPM)
General Pump Evolution 2500 PSI 4 GPM (Shaft Electric Flange) Triplex Pressure Washer Pump (1750 RPM)
Model: E1812E17
$354.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Electric

Inflow

1/2" Threaded (Female)

Outflow

3/8" Threaded (Female)

  • Quality Replacement For Worn Out Pumps
  • New forged brass manifold increases working pressure to 2500 PSI
  • New Pump Design
  • Connecting rods reduce specific pressure & improve lubrication
  • Solid Ceramic Plungers With Dual Guide System
  • Ceramic runs cooler & lasts longer; can be rebuilt
  • New plunger guide assembly reduces friction, extends seal life (patent pending)
  • Durable Components
  • Oversized forged crankshaft & crankshaft key increase performance
  • Optimized outlet valves deliver better volumetric efficiency
  • Large Diameter Sight Glass
  • Easier oil checking; dipstick with breather for easier maintenance
  • Large 15 oz. oil capacity means better cooling & lubrication

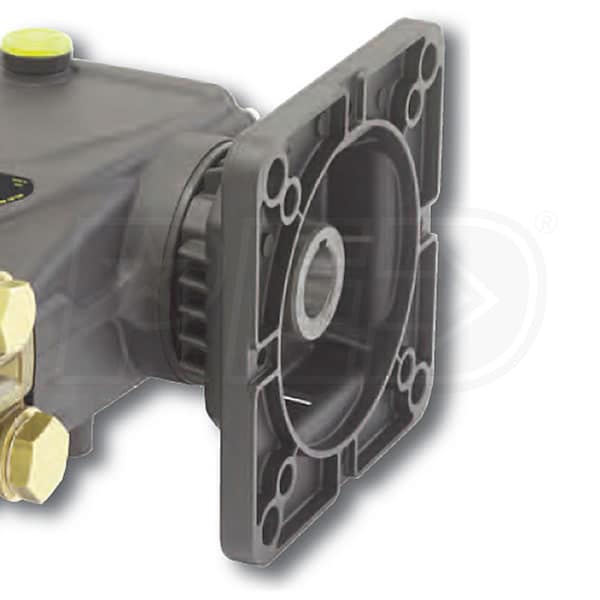

  • NEMA184TC Electric Motor Mounting Flange
  • Maximum 2500 PSI, 4 gallons per minute, up to 165°F
  • Pump ships as shown; you will need to re-use your connectors or purchase them separately
  • Shaft diameter 1.125 inches (28.58mm)
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps

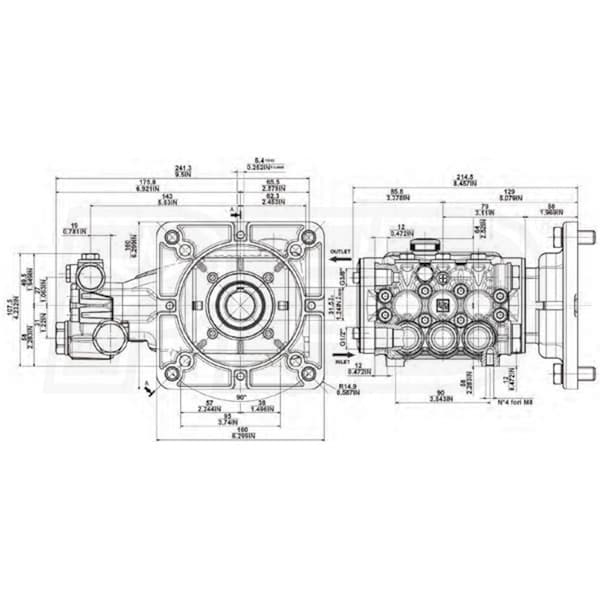

  • (Dimensions can be downloaded under the Specs tab in Manual PDF)
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

E1812E17
specs product image PID-68391
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
15.4 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
9.7 Inches
Product Width
8.45 Inches
Product Height
6.3 Inches
UPC
682491066125
Additional Model Numbers

EEP1812E17, E1812E17

Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4
Rated PSI
2500 PSI
