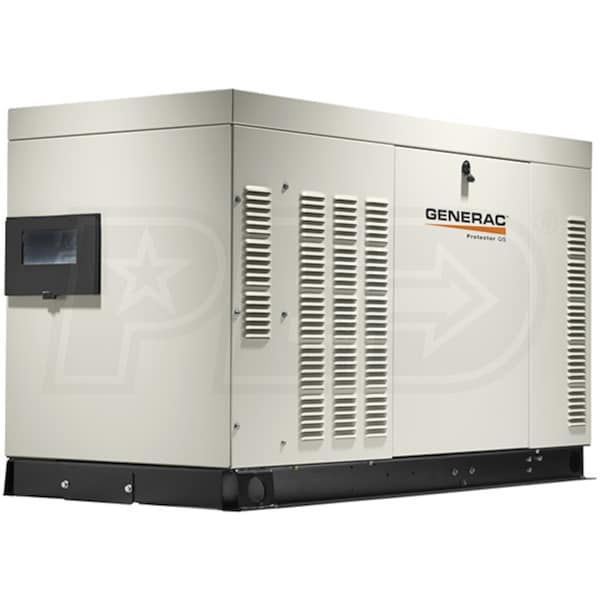

Generac Protector QS® 32kW Automatic Standby Generator (Premium-Grade)(120/240V Single-Phase) (Scratch & Dent)

Model:

RG03224ANAX-SD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac Protector QS® 32kW Automatic Standby Generator (Premium-Grade)(120/240V Single-Phase) (Scratch & Dent)
Generac Protector QS® 32kW Automatic Standby Generator (Premium-Grade)(120/240V Single-Phase) (Scratch & Dent)
Model: RG03224ANAX-SD
Was $11,667.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

32,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac 2.4L 4-Cylinder

  • *Scratch & Dent Model*
  • Scratches & small dents on the enclosure
  • Shipped to another customer and returned to us, cosmetic only, will not affect operation
  • Premium-Grade Standby Generator
  • Designed for luxury homes & small commercial buildings
  • Runs off natural gas or LP fuel source
  • Quiet-Test
  • Low-speed exercise mode for quieter weekly tests; 58 dB @ 23'
  • Multi-Lingual Evolution
  • Two-Line LCD Display provides service & maintenance intervals
  • Automotive-Style Engine
  • Operates at half the speed of other engines (1800 vs 3600 RPM)
  • Powerful Generac in-line 4-cylinder liquid-cooled engine
  • Sound Attenuated, Acoustically Designed Aluminum Enclosure
  • Corrosion-resistant material ideal for salty air conditions
  • Lockable, external viewing window for quick status check
  • Automatic Shutdown Safety Feature
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Mobile Link Compatible (Sold Separately)
  • Easily check generator status via computer, tablet or smartphone
  • Transfer Switch (Sold Separately)
  • Customize your system based on your actual application
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RG03224ANAX-SD
specs product image PID-79393
Overview
Weight
1369 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
76.8 Inches
Product Width
35 Inches
Product Height
46.1 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
32000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
32000 Watts
LP Power Capacity
32000 Watts
NG Fuel Consumption @ 50% Load
226 ft³/hr
NG Fuel Consumption @ 100% Load
375 ft³/hr
LP Fuel Consumption @ 50% Load
2.7 gallons/hr
LP Fuel Consumption @ 100% Load
4.6 gallons/hr
Rated Amps
133 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
58 Test (64 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 2.4L 4-Cylinder
Starting System
12v Auto Start
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
