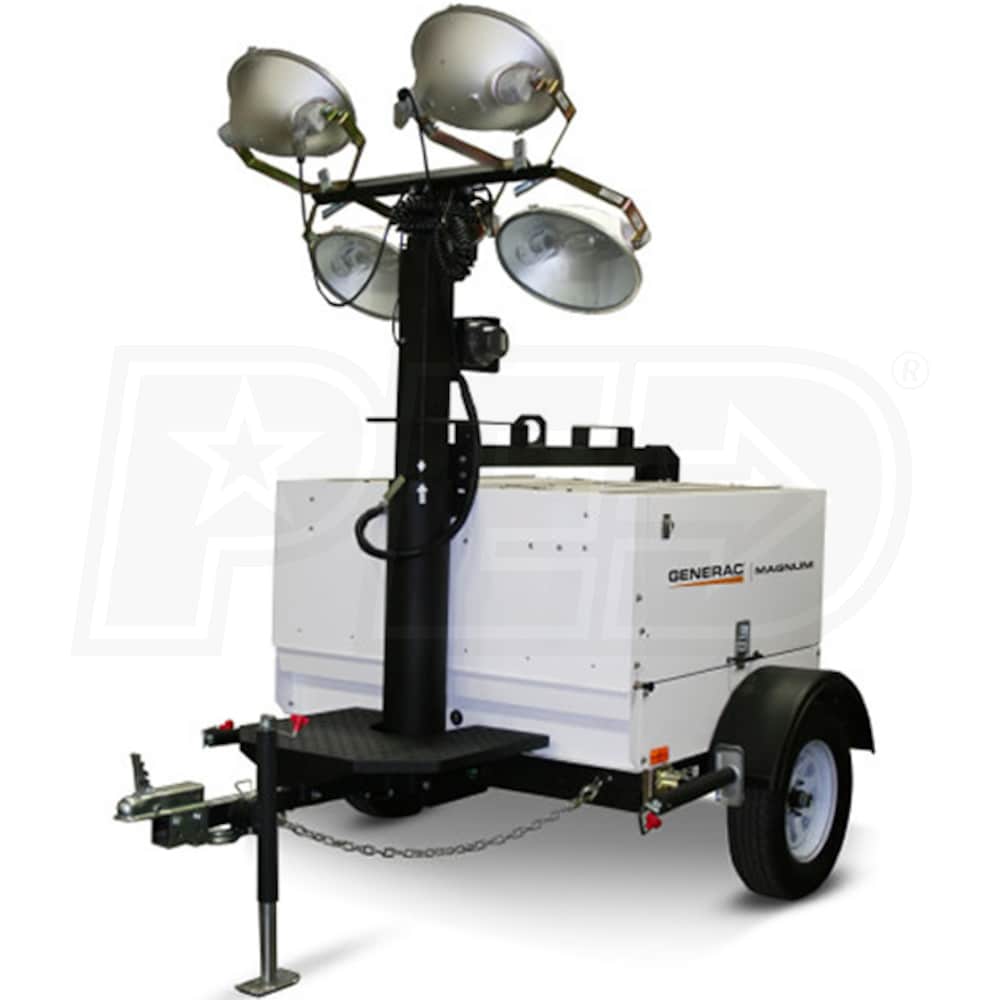

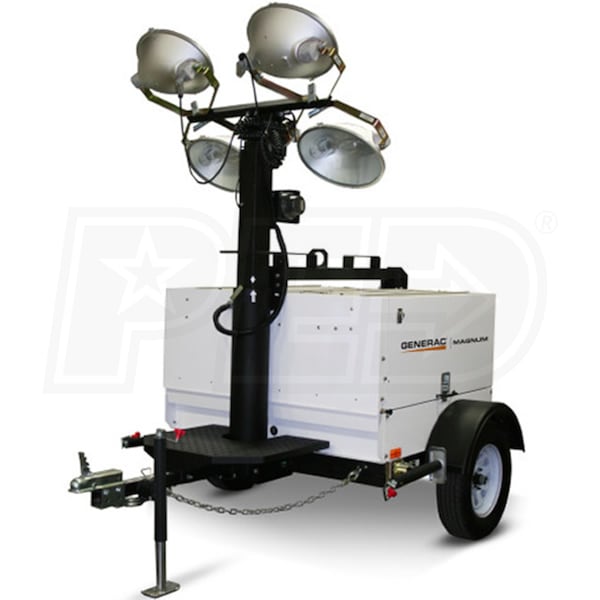

Generac MLT5080KV-STD - 8kW Towable Diesel Vertical Mast Light Tower w/ Kubota Engine & Electric Winch

Generac MLT5080KV-STD - 8kW Towable Diesel Vertical Mast Light Tower w/ Kubota Engine & Electric Winch
Our Price
Compare Prices
Shipping Info
Model: MLT5080KV-STD
$14,299.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Shipping$14,299.00Buy Now
Free Freight$14,299.00Visit Site
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, California, Connecticut, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
8,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Kubota
Grade
Professional
Style
Tow-Behind
Run Watts
8,000
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Kubota
Features
Features
  • MLT5080KV-STD - 8kW Vertical Mast Light Tower (Kubota« / Electric Winch)
  • Designed & engineered to perform in the most extreme environments
  • 4 x 1000-Watt Metal Halide Lamps
  • Provides light coverage for up to 7 acres; Individual On/Off switches
  • Oval aluminum reflectors w/ tempered glass lens & silicone gaskets
  • Friction disc mounting for tool less positioning; Internal cabinet light storage
  • 25-Foot, 5-Section, Tubular-Steel Vertical Mast w/ Electric Winch
  • Allows for quick setup and takedown
  • Vertical mast allows for more compact storage and transportation
  • Equipped with single lifting eye and fork pockets
  • 359░ Ground-Level Mast/Fixture Rotation w/ Locking System
  • Distinctive angle fixture mount for common light distribution
  • 1.12L Kubota« D1105 Liquid Cooled Diesel Engine (EPA Tier 4 Final)
  • Fuel efficient design runs at 1800 RPM for extended engine life
  • 56-Gallon Polyethylene Internal Fuel Tank
  • Provides up to 80 hours of run time with all 4-lights On
  • 120/240V - 66/33A Marathon Electric Brushless Alternator
  • Robust design provides up to 8 kW of standby output
  • (2) 120V 20A GFCI Duplex Outlets & (1) 240V 30A (L6-30R) Twistlock Outlet
  • Individually breakered for added safety during operation
  • 14-Gauge Steel Enclosure - 68 dB(A) @ 23'
  • Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
  • Multi-lingual operating/safety decals; Manual holder w/ operating manual
  • Wide, 78" Wheel Base, Tubular Steel Trailer
  • 3500 lb. Leaf spring axle; Single wall polyethylene fenders
  • (4) 2000 lb. Adjustable leveling jacks; Transport/lock in horizontal storage position
  • Front step platform for easy adjustment of light fixtures
  • DOT Approved Tail, Side, Brake and Directional Lights
  • 15" P205R/75R15 - 6 ply wheel/Tire; 68.5" Axle Span
  • Combo Hitch; 2" Ball Hitch and 2.5" Pintle Ring
  • Includes Starting Battery
  • CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
  • 1 Year / Unlimited Hours, 2-Year / 2,000 Hour Limited Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
HP
15.4 HP
CC
1120 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Fuel Type
Diesel
Rated Amps
66/33 Amps
Tank Size
56 Gallons
Fuel Tank Material
Plastic
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
No
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
Overview
Certification
EPA Tier 4
Made in USA
Yes
Weight
2035 Pounds
Product Style
Light Tower
Product Length
120 Inches
Product Width
79 Inches
Product Height
111 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Grade
Style
Run Watts
8,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Kubota
Grade
Professional
Style
Tow-Behind
Run Watts
8,000
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Kubota
Features
Features
  • MLT5080KV-STD - 8kW Vertical Mast Light Tower (Kubota« / Electric Winch)
  • Designed & engineered to perform in the most extreme environments
  • 4 x 1000-Watt Metal Halide Lamps
  • Provides light coverage for up to 7 acres; Individual On/Off switches
  • Oval aluminum reflectors w/ tempered glass lens & silicone gaskets
  • Friction disc mounting for tool less positioning; Internal cabinet light storage
  • 25-Foot, 5-Section, Tubular-Steel Vertical Mast w/ Electric Winch
  • Allows for quick setup and takedown
  • Vertical mast allows for more compact storage and transportation
  • Equipped with single lifting eye and fork pockets
  • 359░ Ground-Level Mast/Fixture Rotation w/ Locking System
  • Distinctive angle fixture mount for common light distribution
  • 1.12L Kubota« D1105 Liquid Cooled Diesel Engine (EPA Tier 4 Final)
  • Fuel efficient design runs at 1800 RPM for extended engine life
  • 56-Gallon Polyethylene Internal Fuel Tank
  • Provides up to 80 hours of run time with all 4-lights On
  • 120/240V - 66/33A Marathon Electric Brushless Alternator
  • Robust design provides up to 8 kW of standby output
  • (2) 120V 20A GFCI Duplex Outlets & (1) 240V 30A (L6-30R) Twistlock Outlet
  • Individually breakered for added safety during operation
  • 14-Gauge Steel Enclosure - 68 dB(A) @ 23'
  • Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
  • Multi-lingual operating/safety decals; Manual holder w/ operating manual
  • Wide, 78" Wheel Base, Tubular Steel Trailer
  • 3500 lb. Leaf spring axle; Single wall polyethylene fenders
  • (4) 2000 lb. Adjustable leveling jacks; Transport/lock in horizontal storage position
  • Front step platform for easy adjustment of light fixtures
  • DOT Approved Tail, Side, Brake and Directional Lights
  • 15" P205R/75R15 - 6 ply wheel/Tire; 68.5" Axle Span
  • Combo Hitch; 2" Ball Hitch and 2.5" Pintle Ring
  • Includes Starting Battery
  • CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
  • 1 Year / Unlimited Hours, 2-Year / 2,000 Hour Limited Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
HP
15.4 HP
CC
1120 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Fuel Type
Diesel
Rated Amps
66/33 Amps
Tank Size
56 Gallons
Fuel Tank Material
Plastic
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
No
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
Overview
Certification
EPA Tier 4
Made in USA
Yes
Weight
2035 Pounds
Product Style
Light Tower
Product Length
120 Inches
Product Width
79 Inches
Product Height
111 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
HP
15.4 HP
CC
1120 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Fuel Type
Diesel
Rated Amps
66/33 Amps
Tank Size
56 Gallons
Fuel Tank Material
Plastic
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
No
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
Overview
Certification
EPA Tier 4
Made in USA
Yes
Weight
2035 Pounds
Product Style
Light Tower
Product Length
120 Inches
Product Width
79 Inches
Product Height
111 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
