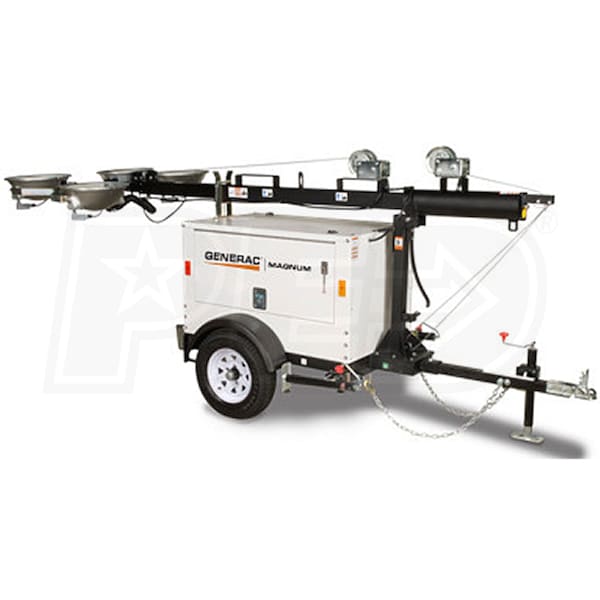

Generac MLT3060M-STD - 6kW Towable Diesel Horizontal Mast Light Tower w/ Mitsubishi Engine & Manual Winch

Model:

MLT3060M-STD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac MLT3060M-STD - 6kW Towable Diesel Horizontal Mast Light Tower w/ Mitsubishi Engine & Manual Winch
Generac MLT3060M-STD - 6kW Towable Diesel Horizontal Mast Light Tower w/ Mitsubishi Engine & Manual Winch
Model: MLT3060M-STD
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Professional

Style

Tow-Behind

Run Watts

6,000 Rated Watts

Voltage

120/240 Three-Phase

Fuel

Diesel

Engine

Mitsubishi

  • MLT3060M-STD - 6kW Horizontal Mast Light Tower (Mitsubishi® / Manual Winch)
  • Designed & engineered for optimum performance, reliability and longevity
  • 4 x 1000-Watt Metal Halide Lamps
  • Provides light coverage for up to 7 acres; Individual On/Off switches
  • Oval aluminum reflectors w/ tempered glass lens & silicone gaskets
  • Friction disc mounting for tool less positioning
  • 30-Foot, 3-Section Horizontal Mast w/ Manual Winch
  • Dual-Winch system located at ergonomic height; Simple, single person operation
  • 359° Ground-Level Mast/Fixture Rotation w/ Locking System
  • Distinctive angle fixture mount for common light distribution
  • .95L Mitsubishi® L3E Liquid Cooled Diesel Engine (EPA Tier 4 Final)
  • Fuel efficient design runs at 1800 RPM for extended engine life
  • 30-Gallon Polyethylene Internal Fuel Tank
  • Provides up to 60 hours of run time with all 4-light On
  • 3.5" Fill port for easier access
  • 120/240V - 50/25A Marathon Electric Brushless Alternator
  • Robust design provides up to 6 kW of standby output
  • (2) 120V 20A GFCI Duplex Outlet & (1) 240V 30A (L6-30R) Twistlock Outlet
  • Individually breakered for added safety during operation
  • 14-Gauge Steel Enclosure - 68 dB(A) @ 23'
  • Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
  • Multi-lingual operating/safety decals; Manual holder w/ operating manual
  • Tubular Steel Trailer w/ 48" Removable Tongue
  • (4) 2000 lb. Adjustable leveling jacks; Transport/lock in horizontal storage position
  • Front step platform for easy adjustment of light fixtures
  • DOT Approved Tail, Side, Brake and Directional Lights
  • 2200 lb. Leaf spring axle; Single wall polyethylene fenders
  • 13" ST175/80D13 - 6 ply wheel/tire; 40.75" Axle Span
  • 2" Ball hitch & safety chains w/ spring loaded safety hooks
  • Includes Starting Battery
  • CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
  • 2-Year / 2,000 Hour Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
MLT3060M-STD
specs product image PID-76316
Overview
Weight
1694 Pounds
Certification
EPA Tier 4
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Light Tower
Product Length
117 Inches
Product Width
58 Inches
Product Height
111 Inches
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
6000 Watts
Fuel Type
Diesel
Rated Amps
50/25 Amps
Tank Size
30 Gallons
Fuel Tank Material
Plastic
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
No
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Mitsubishi
Starting System
12-Volt Button Start
HP
12.2 HP
CC
950 CC
Engine RPM
1800 RPM
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
