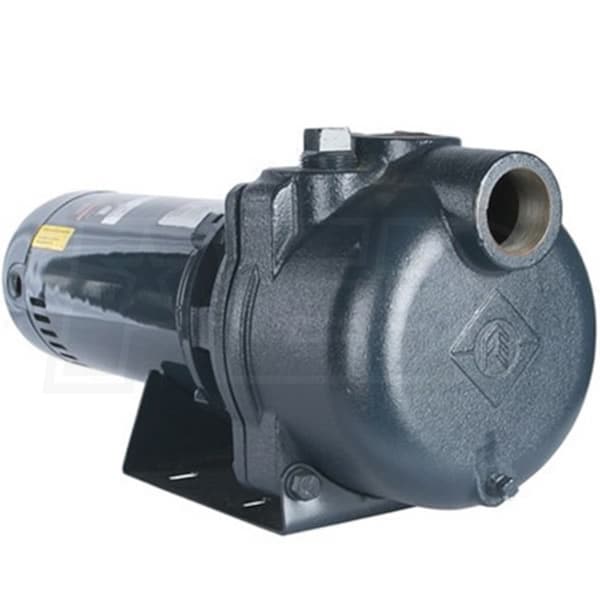

Franklin Electric Turf Boss 80 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump w/ SS Impeller

Model:

92981020

Write A Review
$1,451.20
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Friday, Mar 29th
Shipping to60601

Franklin Electric Turf Boss 80 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump w/ SS Impeller
Franklin Electric Turf Boss 80 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump w/ SS Impeller
Model: 92981020
$1,451.20
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/2 Inch

Style

Sprinkler

GPM

80 Gallons



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • FPS Series Turf Boss 2 HP Sprinkler Pump (230V)
  • Great for residential and light commercial applications
  • Sprinkler systems, light agg. irrigation & industrial liquid transfer
  • Heavy Duty Cast Iron Pump Case w/ Base Plate
  • Highly durable, additional support, quiet operation and long life
  • 230V A.O. Smith 56J Motor (3450 RPM)
  • *Please Note* NOT A Dual Voltage Motor, Only works @ 230V
  • 304 Stainless Steel Impeller w/ Stainless Steel Eye Seal
  • For Maximum Durability & efficient operation you can rely on
  • Lifts Water From A Depth Up To 25' - Self-Priming Design
  • 1" Priming plug for faster start-up, No additional priming required
  • 5/8" Rotating Mechanical Seal
  • Provides a reliable seal against water leakage
  • Engineered For Easy Service
  • Back pull-out design, leaves plumbing & base/case in place
  • 1-1/2" FNPT Suction & Discharge
  • Allows for use in a variety of applications
  • 52 PSI Max & Handles Water Temperatures up to 120°F
  • 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

92981020
specs product image PID-50334
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
1-1/2 Inch
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
52
Total Head Lift
130 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
2 hp
Overview
Product Category
Water Pump
Weight
60 Pounds
Consumer Warranty
1 Year
Product Length
21.6 Inches
Product Width
9 Inches
Product Height
8.87 Inches
Additional Model Numbers

FTB2CI-SSI, 92981020

Reviews

(6)
Franklin Electric 92981020 Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Jim, the Water Pump Expert
I am looking to replace two well pumps I have attached to my dock due to electrocution worries. One is for a sprinkler system. it pumps up 90 ft to the valves and then another 40 ft to the highest zone. 1 1/2 pipe all the way. This other is for a "creek/waterfalls. It pumps up 90ft in a 3" pipe and then free flows back down to the lake. What pumps do you recommend?
