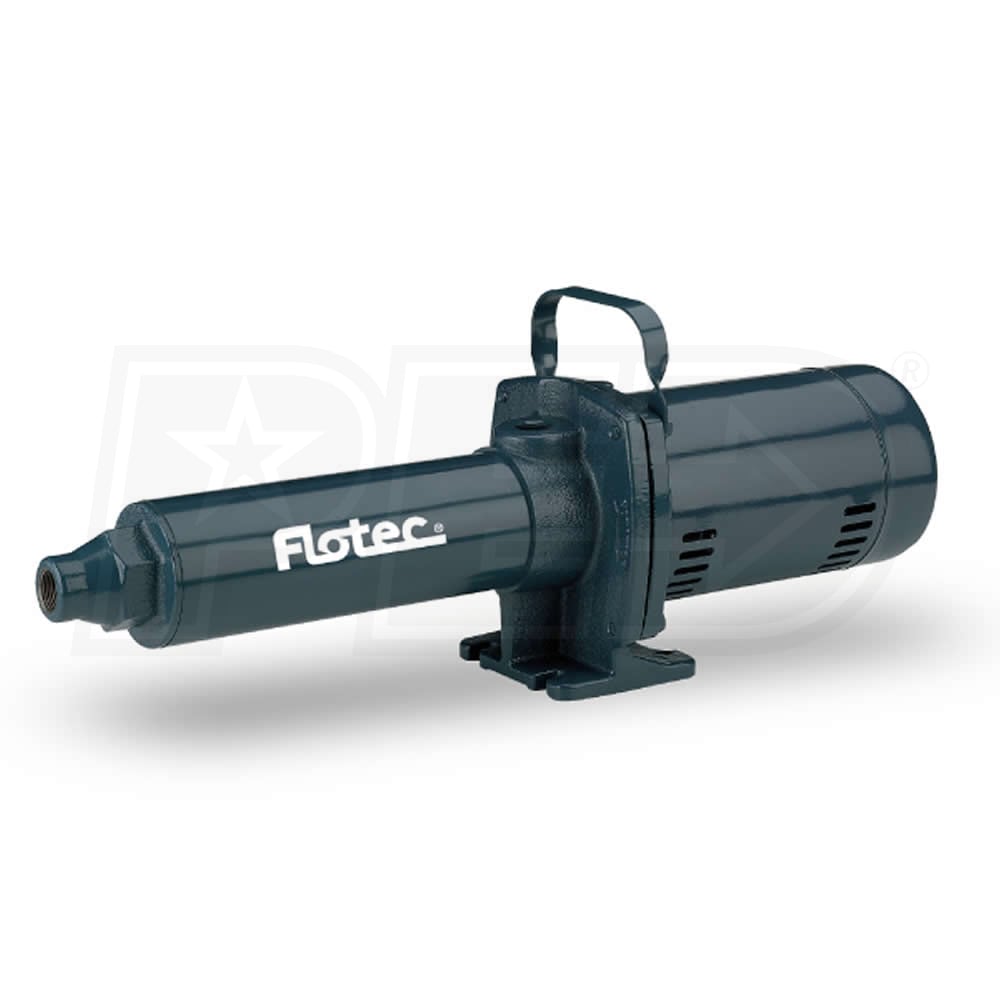

Flotec FP5732 - 1 HP Cast Iron Multi-Stage High Pressure Booster Pump (190 PSI)
Model: FP5732-01
+
Share This Product
-
Product Description
-
5Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
3/4"
Style
GPM
13
Gallons
Inlet Size
3/4"
GPM
13 Gallons
Features
Features
- Cast Iron, Multi-Stage High Pressure Booster Pump
- Boost your existing pressure by 50 to 130 PSI
- Residential, commercial or agricultural high pressure washing
- Strong Pump Performance
- Superior "dead-head" resistance
- Increasing water pressure from city mains or private water systems
- Stainless Steel Motor Shaft
- Includes heavy-duty ball bearings and on-board thermal overload protection
- Preset at 230V, also allows for 115V
- Rated for continuous duty
- Heavy-Duty Cast Iron Pump Adapter and Discharge
- 3/4" FNPT suction and discharge fittings
- Maximum capacity: 13 GPM
- Maximum pressure: 190 PSI
- Maximum inlet pressure: 80 PSI
- Maximum total pressure: 315 PSI
- 1 Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
9.6 @230v / 19.2 @115v
Thermal Protection
Yes
Pump
Gallons Per Minute
13 Gallons
Inlet Diameter
3/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Maximum PSI
190
Submersible
No
Engine
Continuous Operation
Yes
Shaft Seal
Stainless Steel
Horsepower
1 hp
Overview
Weight
48 Pounds
Consumer Warranty
1 Year
UPC
022315165779
Inlet Size
3/4"
Style
GPM
13
Gallons
Inlet Size
3/4"
GPM
13 Gallons
Features
Features
- Cast Iron, Multi-Stage High Pressure Booster Pump
- Boost your existing pressure by 50 to 130 PSI
- Residential, commercial or agricultural high pressure washing
- Strong Pump Performance
- Superior "dead-head" resistance
- Increasing water pressure from city mains or private water systems
- Stainless Steel Motor Shaft
- Includes heavy-duty ball bearings and on-board thermal overload protection
- Preset at 230V, also allows for 115V
- Rated for continuous duty
- Heavy-Duty Cast Iron Pump Adapter and Discharge
- 3/4" FNPT suction and discharge fittings
- Maximum capacity: 13 GPM
- Maximum pressure: 190 PSI
- Maximum inlet pressure: 80 PSI
- Maximum total pressure: 315 PSI
- 1 Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
9.6 @230v / 19.2 @115v
Thermal Protection
Yes
Pump
Gallons Per Minute
13 Gallons
Inlet Diameter
3/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Maximum PSI
190
Submersible
No
Engine
Continuous Operation
Yes
Shaft Seal
Stainless Steel
Horsepower
1 hp
Overview
Weight
48 Pounds
Consumer Warranty
1 Year
UPC
022315165779
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Running Amps
9.6 @230v / 19.2 @115v
Thermal Protection
Yes
Pump
Gallons Per Minute
13 Gallons
Inlet Diameter
3/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Maximum PSI
190
Submersible
No
Engine
Continuous Operation
Yes
Shaft Seal
Stainless Steel
Horsepower
1 hp
Overview
Weight
48 Pounds
Consumer Warranty
1 Year
UPC
022315165779
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
What type of cord or gauge do you recommend?
Lee
from Colorado
April 18, 2018
Answer
Since this pump is rated for dual-voltage (115V or 230V), it does require that you wire it to your specifications. Please note that it is pre-wired for 230V out of the factory. That information is available in the Pump Manual.
