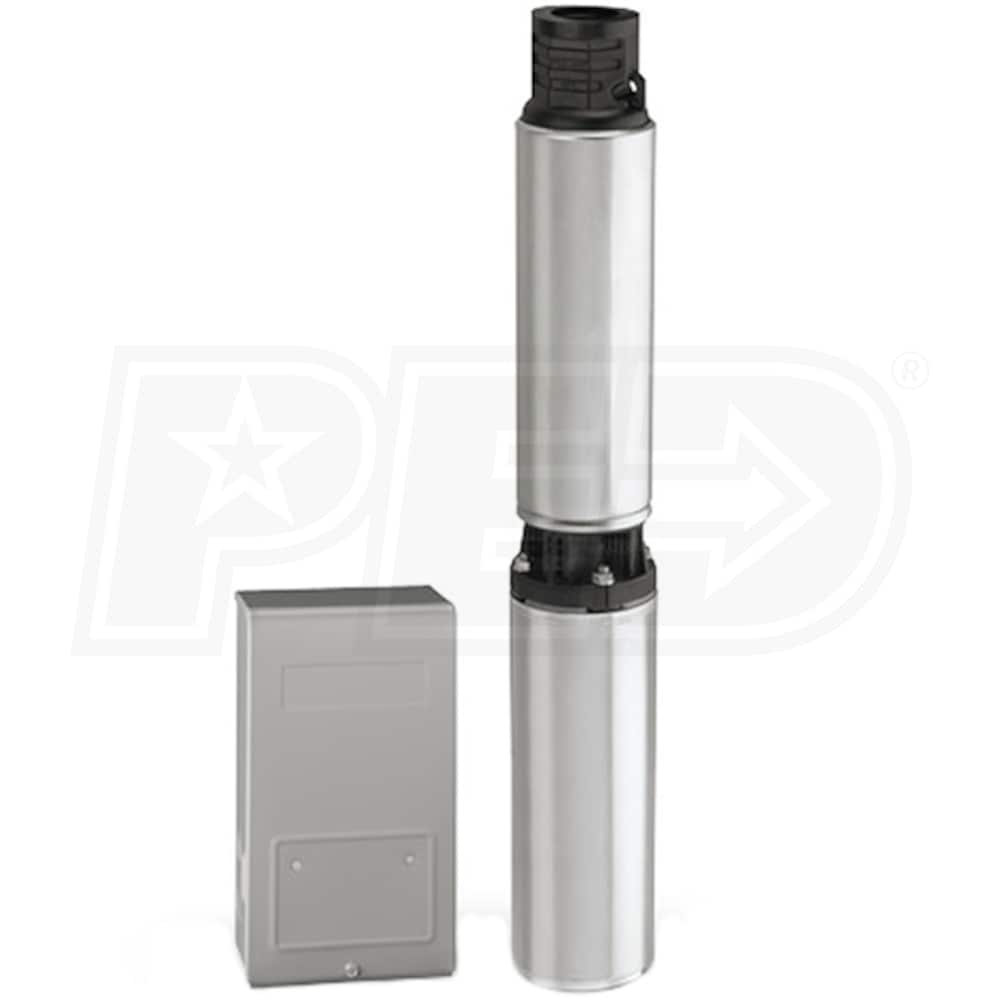

Flotec FP3222 - 10 GPM 3/4 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box

Flotec FP3222 - 10 GPM 3/4 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box
Our Price
Compare Prices
Shipping Info
Model: FP3222-12
$539.00

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Shipping$539.00Buy Now
Free Shipping$539.00Visit Site
$539.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Deep Well
GPM
10
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
10 Gallons
Features
Features
  • 3-Wire, 4" Submersible Well Pump
  • 3 wires plus ground wire
  • 230-Volt power (15 amp breaker recommended)
  • Control box included
  • For Residential & Agricultural Water Systems
  • Provides optimum amount of water and pressure for general home and farm use
  • High Performance
  • Proven floating stack impeller design
  • For sand resistance and reduced sand locking
  • Durable Construction
  • Stainless steel pump and motor housing
  • Corrosion-resistant for long pump life
  • Designed For Wells 20’ - 200’ In Depth
  • Pumps up to 702 GPH @ 100’ Depth - (40 PSI)
  • Designed For 4" Wells Or Larger
  • 1ผ” NPT discharge
  • 3 Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Maximum PSI
127
Total Head Lift
200 Feet
GPH @ 20 feet
888
Submersible
Yes
Engine
Horsepower
0.75 hp
Overview
Weight
35 Pounds
Product Width
3.78 Inches
Consumer Warranty
3 Years
UPC
022315101951

Inlet Size
N/A
Style
Deep Well
GPM
10
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
10 Gallons
Features
Features
  • 3-Wire, 4" Submersible Well Pump
  • 3 wires plus ground wire
  • 230-Volt power (15 amp breaker recommended)
  • Control box included
  • For Residential & Agricultural Water Systems
  • Provides optimum amount of water and pressure for general home and farm use
  • High Performance
  • Proven floating stack impeller design
  • For sand resistance and reduced sand locking
  • Durable Construction
  • Stainless steel pump and motor housing
  • Corrosion-resistant for long pump life
  • Designed For Wells 20’ - 200’ In Depth
  • Pumps up to 702 GPH @ 100’ Depth - (40 PSI)
  • Designed For 4" Wells Or Larger
  • 1ผ” NPT discharge
  • 3 Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Maximum PSI
127
Total Head Lift
200 Feet
GPH @ 20 feet
888
Submersible
Yes
Engine
Horsepower
0.75 hp
Overview
Weight
35 Pounds
Product Width
3.78 Inches
Consumer Warranty
3 Years
UPC
022315101951
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Wire
3-Wire
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4"
Housing Material
Stainless Steel
Maximum PSI
127
Total Head Lift
200 Feet
GPH @ 20 feet
888
Submersible
Yes
Engine
Horsepower
0.75 hp
Overview
Weight
35 Pounds
Product Width
3.78 Inches
Consumer Warranty
3 Years
UPC
022315101951
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Does this pump have surge protection and lighting protection?
Vernon E.
from Texas
June 23, 2017
Answer
According to Flotec, YES it does Vernon!
