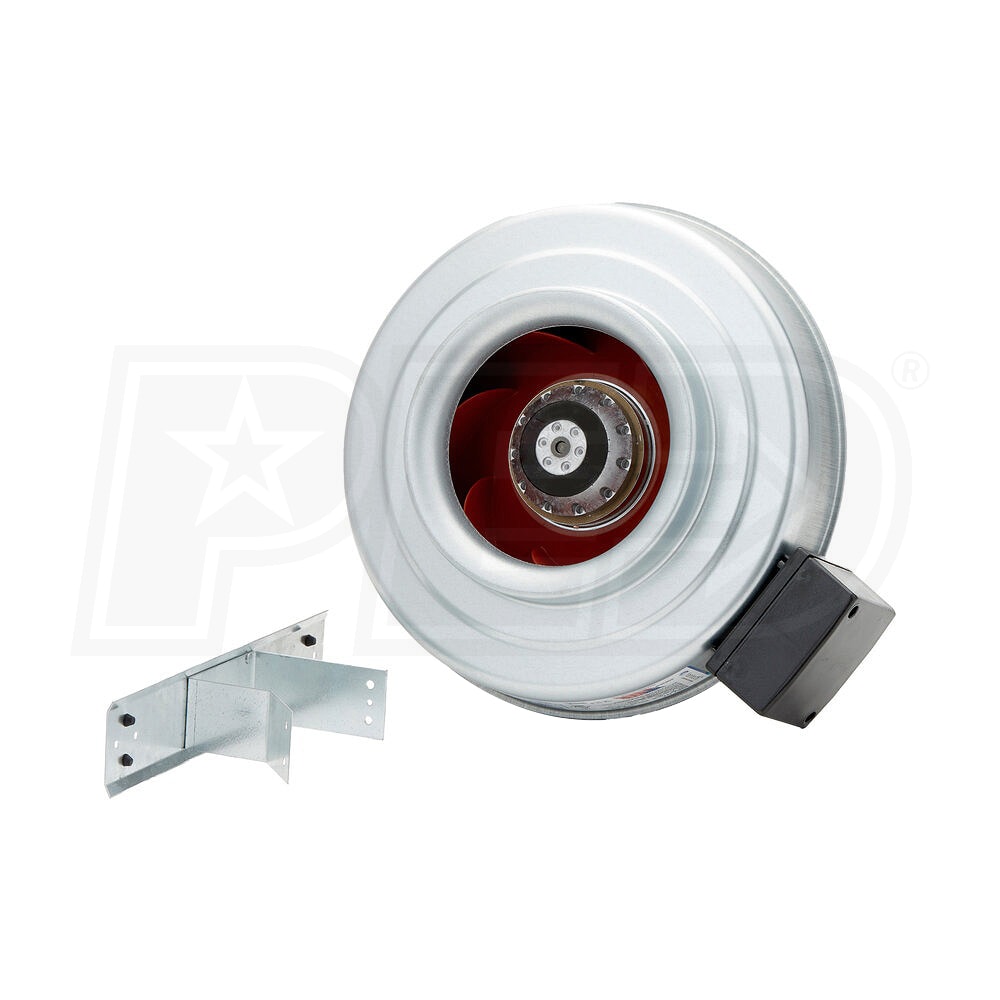

Fantech FG - 461 CFM - Inline Duct Fan - 8" Duct - 120V

Model:

FG8

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Fantech FG - 461 CFM - Inline Duct Fan - 8
Fantech FG - 461 CFM - Inline Duct Fan - 8" Duct - 120V
Model: FG8
Was $266.00
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Featuring a galvanized steel housing, the Fantech FG 8 Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any inline application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 461 CFM. This inline duct fan is constructed with a 8" round duct. The FG 8 duct fan is rated for air temperatures of up to 140 degrees Fahrenheit and feature a backward curved impeller for improved air flow. Fans include a bracket for mounting to a ceiling or wall. FG Series Inline Fans are rated for outdoor use.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.

Specifications

FG8
specs product image PID-31151
Overview
Product Category
Fans
UPC
650737480806
General Information
Type
Duct Fan
Product Line
FG
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
461 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.14 Amps
Dimensions
Duct Connection
8 Inches
Product Diameter
13 3/8 Inches
Shipping Width
17 Inches
Shipping Height
12 Inches
Shipping Length
17 Inches
Shipping Weight
12 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
