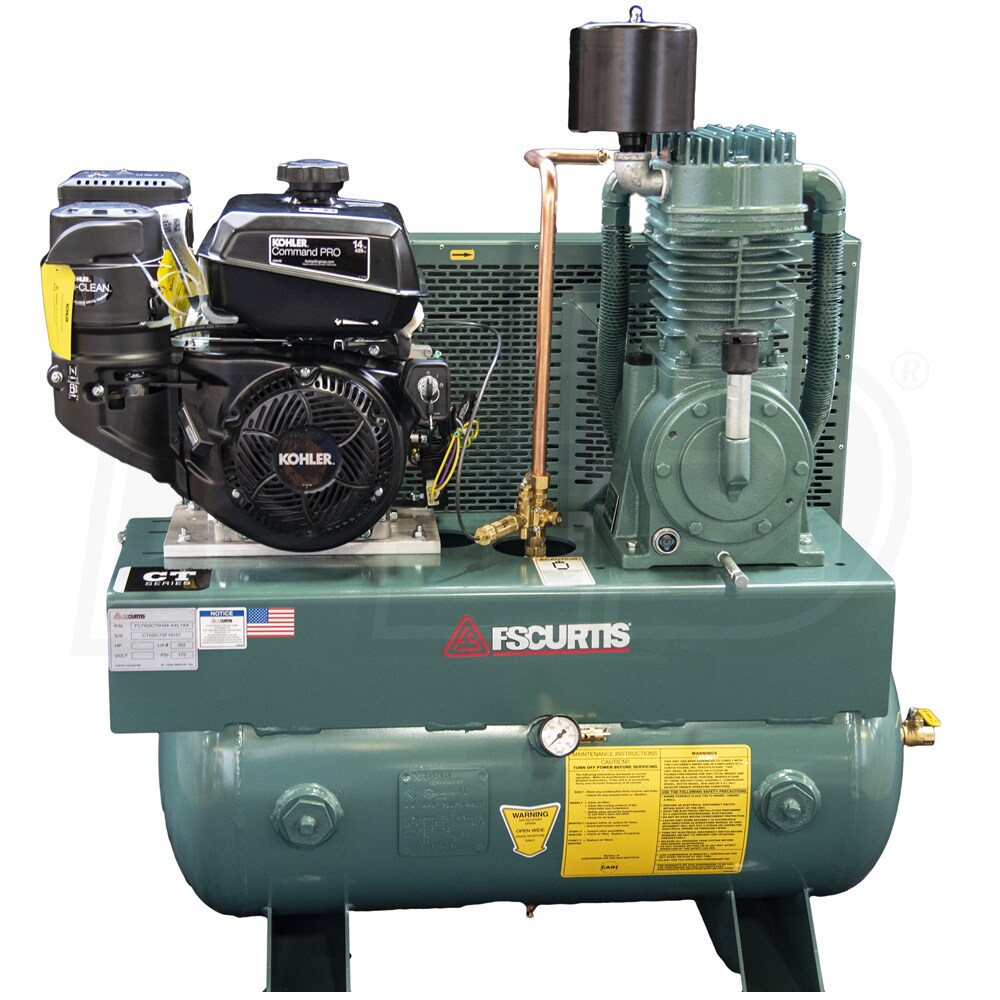

FS-Curtis CT14-K 14-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine
Model:
FCTKDC75H3X-AXL1XX
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Kohler
CFM
25.4
Tank Size
30
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Rugged & Simple Industrial Design
- Combines performance & reliability in an economical package
- Ideal choice for light fleet, contractor, & light service trucks
- 14-HP Kohler Commercial-Grade Gas Engine
- Reliable engine is easy to start; runs smooth & quiet
- 100% Cast-Iron Cylinders & Cylinder Heads
- Slow-turning pump & deep fins increase pump life
- High-Flow, Heavy-Duty Stainless-Steel Valve System
- 25.4 CFM @ 175 PSI; delivers more CFM per horsepower
- ASME Rated 30-Gallon Horizontal Tank
- Plenty of reserve for impact wrenches, drills, grinders, etc.
- 12 Volt DC Starter With Alternator
- Perfect for fleet & service applications (Battery & Cables Not Included)
- Robust Intercooler
- Increases compressor efficiency
- Heavy-Duty Stamped-Steel Belt Guard
- OSHA approved for safety & durability
- 1 Year Factory Warranty
- Extends to 2 years using FS-Curtis maintenance products
- ***Battery & Cables Not Included***
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
FCTKDC75H3X-AXL1XX
General Information
Product Category
Air Compressor - Portable
Engine
HP
14
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
25.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
463 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
21 Inches
Product Height
45.5 Inches
Power Type
Gas
