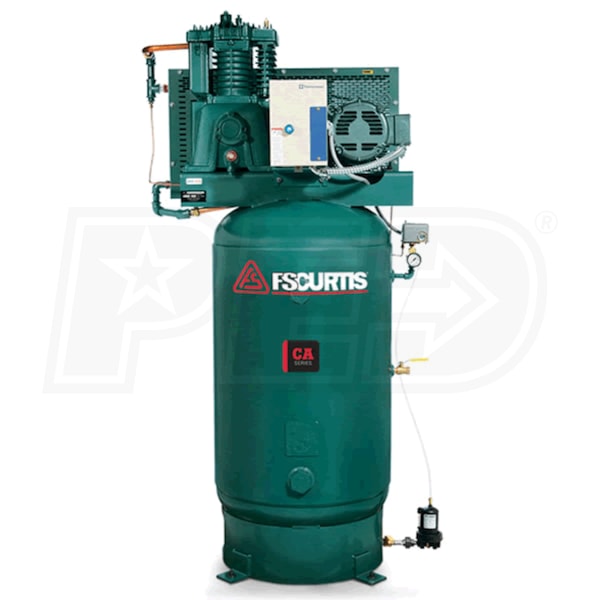

FS-Curtis CA7.5 7.5-HP 80-Gallon UltraPack Two-Stage Air Compressor (230V 1-Phase)
Model: FCA07E57V8U-A2L1XX
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$3,391.12
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Voltage
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Free Shipping$3,391.12Buy Now
Free Freight$3,391.12Visit Site
Share
  • Product Description
  • 1
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
23.2
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
23.2 CFM Rated @ 175 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • UltraPack Saves Time & Money
  • Increases air quality while reducing maintenance needs, Includes options & accessories that increase efficiency
  • Durable Cast Iron Pump
  • Slow-turning pump increases pump life; large pressure gauge is easy to monitor
  • UL-approved automatic start/stop pressure switch
  • Magnetic Motor Starter
  • Safely starts the NEMA motor, provides under-voltage & overload protection for longer motor life
  • Air Cooled Aftercooler
  • Reduces moisture in the air supply; helps lower outlet air temperature to facilitate refrigerated air dryer use
  • Low Oil Level Shutdown Switch
  • Protects the pump; unit is factory-filled with high quality synthetic-blend oil
  • 80 Gallon ASME-Approved Air Receiver
  • Automatic tank drain simplifies maintenance; prevents rust in the tank
  • Tank isolator pads reduce noise & vibration
  • Heavy Duty Stainless Steel Valve System
  • Delivers more CFM per horsepower: 23.2 CFM at 175 PSI
  • Heavy Duty Stamped-Steel Belt Guard
  • Totally enclosed, OSHA approved protection
  • 1 Year Limited Factory Warranty
  • Can be extended to 5 years on the pump with registration & use of genuine FS-Curtis parts & lubricant
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
580 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
39 Inches
Product Width
36 Inches
Product Height
74 Inches
Power Type
Electric
Grade
Commercial
Style
Two Stage 1-Phase
CFM
23.2
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
23.2 CFM Rated @ 175 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • UltraPack Saves Time & Money
  • Increases air quality while reducing maintenance needs, Includes options & accessories that increase efficiency
  • Durable Cast Iron Pump
  • Slow-turning pump increases pump life; large pressure gauge is easy to monitor
  • UL-approved automatic start/stop pressure switch
  • Magnetic Motor Starter
  • Safely starts the NEMA motor, provides under-voltage & overload protection for longer motor life
  • Air Cooled Aftercooler
  • Reduces moisture in the air supply; helps lower outlet air temperature to facilitate refrigerated air dryer use
  • Low Oil Level Shutdown Switch
  • Protects the pump; unit is factory-filled with high quality synthetic-blend oil
  • 80 Gallon ASME-Approved Air Receiver
  • Automatic tank drain simplifies maintenance; prevents rust in the tank
  • Tank isolator pads reduce noise & vibration
  • Heavy Duty Stainless Steel Valve System
  • Delivers more CFM per horsepower: 23.2 CFM at 175 PSI
  • Heavy Duty Stamped-Steel Belt Guard
  • Totally enclosed, OSHA approved protection
  • 1 Year Limited Factory Warranty
  • Can be extended to 5 years on the pump with registration & use of genuine FS-Curtis parts & lubricant
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
580 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
39 Inches
Product Width
36 Inches
Product Height
74 Inches
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
580 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
39 Inches
Product Width
36 Inches
Product Height
74 Inches
Power Type
Electric
Reviews
(1)
+
FS-Curtis FCA07E57V8U-A2L1XX Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
Is it a Baldor motor? And how many amps does it pull?
James S.
from New Mexico
December 15, 2019
Answer
This has a WEG motor and the amp draw is 30.6.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
+
What RPM does the motor spin at? What RPM does the pump operate at?
Robert
from Texas
December 12, 2019
Answer
 Motor RPM is 1755. The pump RPM (min-max) is 800-1250.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
