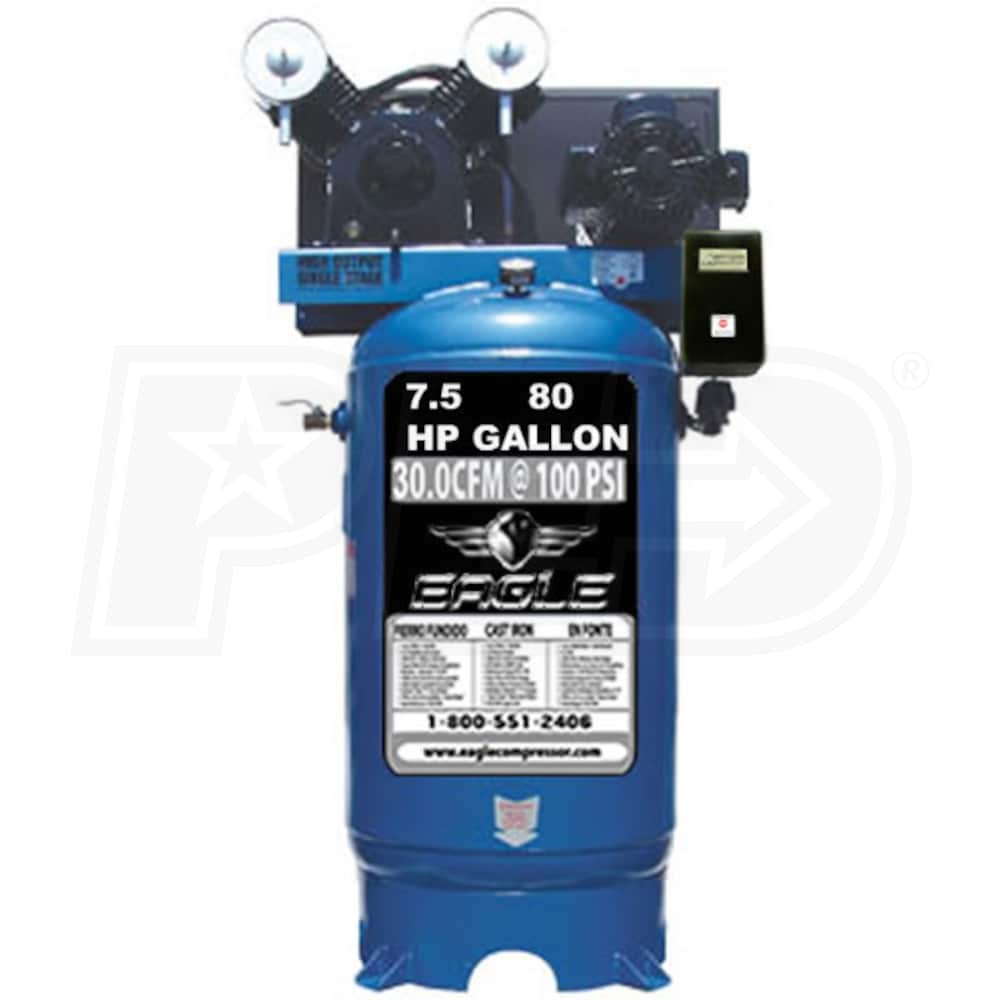

Eagle 7.5-HP 80-Gallon Single Stage Air Compressor (208-230V 1-Phase)

Eagle 7.5-HP 80-Gallon Single Stage Air Compressor (208-230V 1-Phase)
Model: C7180V1-MS
$2,199.99
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$50.00
Free ShippingNo Sales Tax* (Except IL)$2,199.99Buy Now
Free FreightNo Sales Tax* (Except IL)$2,199.99Visit Site
No Sales Tax* (Except IL)$2,249.99Visit Site
Factory-Direct
Ships in 4-7 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Contractor
Style
Single Stage 1-Phase
CFM
30
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Contractor
CFM
30 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Rugged Compressor With Cast Iron Cylinders
  • "V" design minimizes vibration, improves cooling, extends life
  • Individual & Removable Cylinders
  • Smoother & cooler operation for optimum durability
  • Heavy duty pressure switch has on/ off control
  • Thermally Protected 7.5-HP Single Phase Electric Motor
  • Requires a 30 Amp circuit; magnetic starter included
  • Metal Air Filters With "Auto Drop" Features
  • Helps compressor run quietly
  • 80 Gallon ASME Air Tank Rated To 200 PSI
  • Convenient oil drain on front of unit for easy maintenance
  • Oil sight glass lets you check level at a glance
  • High Efficiency Reed Valves
  • Provide maximum performance: 30 CFM at 100 PSI
  • Efficient Heat Removal From Pulley Fan
  • Cooler running & longer compressor life
  • Sturdy Metal Belt Guard
  • Protects both the belt & the operator
  • Outlet Valve Included
  • 3/4" ball valve integrates easily into your system
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
30
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
30
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
150 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
516 Pounds
Product Length
36 Inches
Product Width
23.5 Inches
Product Height
68 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
777589001475
Grade
Contractor
Style
Single Stage 1-Phase
CFM
30
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Contractor
CFM
30 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • Rugged Compressor With Cast Iron Cylinders
  • "V" design minimizes vibration, improves cooling, extends life
  • Individual & Removable Cylinders
  • Smoother & cooler operation for optimum durability
  • Heavy duty pressure switch has on/ off control
  • Thermally Protected 7.5-HP Single Phase Electric Motor
  • Requires a 30 Amp circuit; magnetic starter included
  • Metal Air Filters With "Auto Drop" Features
  • Helps compressor run quietly
  • 80 Gallon ASME Air Tank Rated To 200 PSI
  • Convenient oil drain on front of unit for easy maintenance
  • Oil sight glass lets you check level at a glance
  • High Efficiency Reed Valves
  • Provide maximum performance: 30 CFM at 100 PSI
  • Efficient Heat Removal From Pulley Fan
  • Cooler running & longer compressor life
  • Sturdy Metal Belt Guard
  • Protects both the belt & the operator
  • Outlet Valve Included
  • 3/4" ball valve integrates easily into your system
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
30
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
30
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
150 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
516 Pounds
Product Length
36 Inches
Product Width
23.5 Inches
Product Height
68 Inches
Consumer Warranty
1 Year
Power Type
Electric
UPC
777589001475
