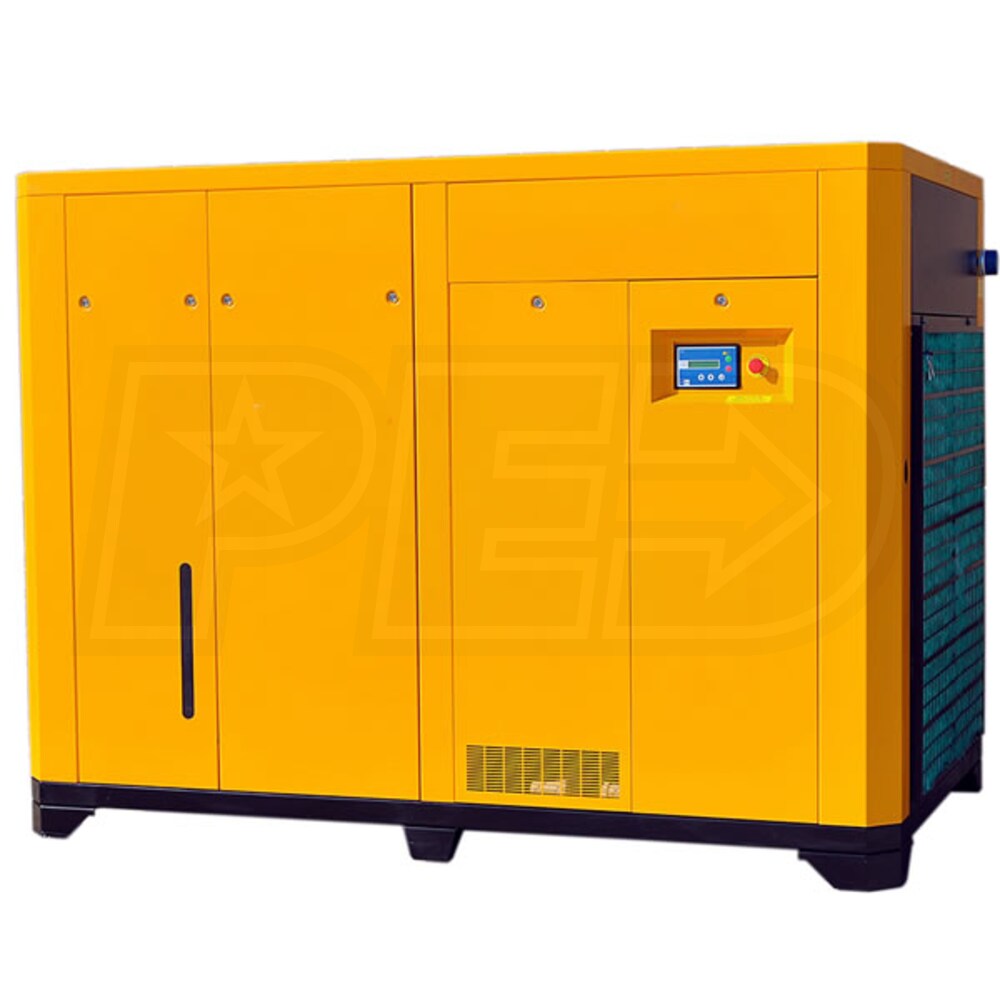

EMAX 150-HP VSD Tankless Rotary Screw Air Compressor w/ Variable Speed Drive (460V 3-Phase)

EMAX 150-HP VSD Tankless Rotary Screw Air Compressor w/ Variable Speed Drive (460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: ERV1500003-460
$49,700.00
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping$49,700.00Buy Now
Free Freight$49,700.00Visit Site
Factory-Direct
Ships in 3-4 Weeks
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
706
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
706 CFM Rated @ 100 PSI
Tank Size
0 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

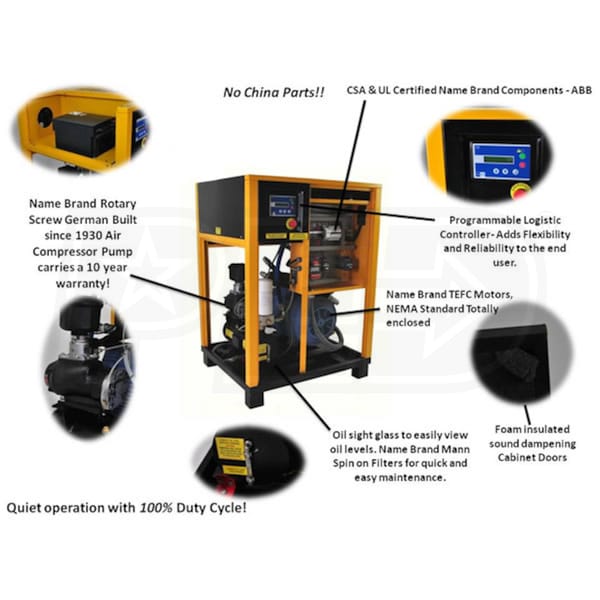

Features
Features
  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Drive-Tek
  • Variable Speed Drive reduces energy demand up to 33%
  • Standard Y-Delta Soft Start Motor
  • Reduced energy demand & amp draw on start up
  • PLC Controller- Advanced Maintenance Intelligence Monitor
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Allows convenient remote start/stop
  • Spin-Tek
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove or install- saving time & money
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Rated up to 706 CFM at 100 PSI (145 PSI maximum)
  • Heavy-Duty Sound Attenuated Cabinet
  • Provides lower decibel operation than a typical rotary screw unit
  • Rated at 83 dBA; 3" NPT air outlet
  • Designed For Use With Stationary Air Receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs
  • 10 Year Limited Factory Pump Warranty (See Manual For Details)
  • 5 year factory warranty on cabinet & motor; 2 years on rest of unit
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
150
Pump
CFM
706
CFM Rated @
100 PSI
Pump Type
Rotary
Max PSI
145 PSI

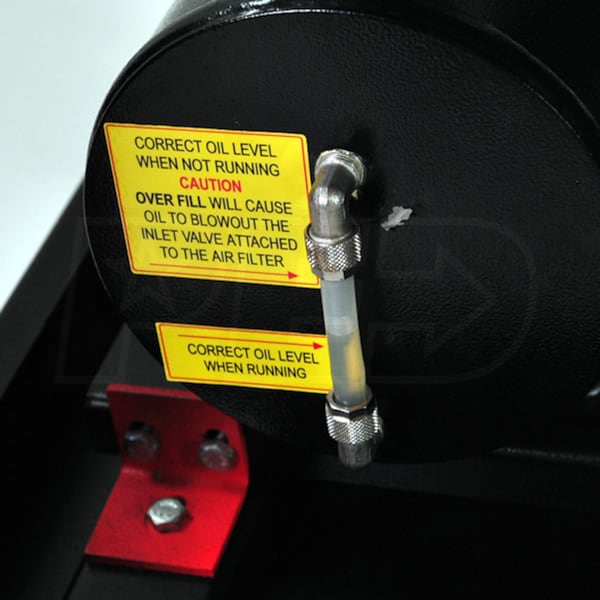

Oil Sight Glass
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Certification
UL/CSA/ETL/ASME
Weight
6000 Pounds
Product Length
102 Inches
Product Width
63 Inches
Product Height
75 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
706
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
706 CFM Rated @ 100 PSI
Tank Size
0 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Drive-Tek
  • Variable Speed Drive reduces energy demand up to 33%
  • Standard Y-Delta Soft Start Motor
  • Reduced energy demand & amp draw on start up
  • PLC Controller- Advanced Maintenance Intelligence Monitor
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Allows convenient remote start/stop
  • Spin-Tek
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove or install- saving time & money
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Rated up to 706 CFM at 100 PSI (145 PSI maximum)
  • Heavy-Duty Sound Attenuated Cabinet
  • Provides lower decibel operation than a typical rotary screw unit
  • Rated at 83 dBA; 3" NPT air outlet
  • Designed For Use With Stationary Air Receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs
  • 10 Year Limited Factory Pump Warranty (See Manual For Details)
  • 5 year factory warranty on cabinet & motor; 2 years on rest of unit
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
150
Pump
CFM
706
CFM Rated @
100 PSI
Pump Type
Rotary
Max PSI
145 PSI
Oil Sight Glass
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Certification
UL/CSA/ETL/ASME
Weight
6000 Pounds
Product Length
102 Inches
Product Width
63 Inches
Product Height
75 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
150
Pump
CFM
706
CFM Rated @
100 PSI
Pump Type
Rotary
Max PSI
145 PSI
Oil Sight Glass
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Certification
UL/CSA/ETL/ASME
Weight
6000 Pounds
Product Length
102 Inches
Product Width
63 Inches
Product Height
75 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
