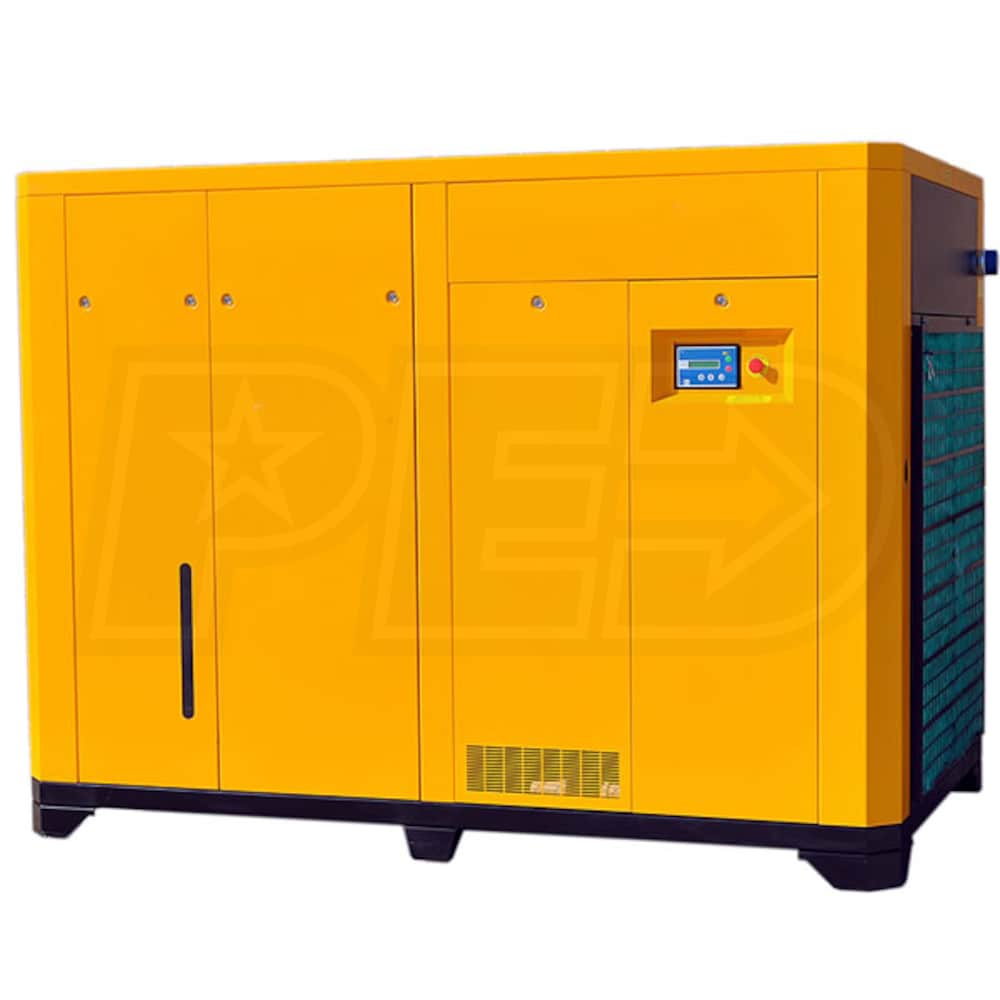

EMAX 100-HP VSD Tankless Rotary Screw Air Compressor w/ Variable Speed Drive (460V 3-Phase)
EMAX 100-HP VSD Tankless Rotary Screw Air Compressor w/ Variable Speed Drive (460V 3-Phase)
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
423.6
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
423.6 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Drive-Tek
- Variable Speed Drive reduces energy demand up to 33%
- Standard Y-Delta Soft Start Motor
- Reduced energy demand & amp draw on start up
- PLC Controller- Advanced Maintenance Intelligence Monitor
- Monitors maintenance, temperature, oil level, filtration & hours
- Allows convenient remote start/stop
- Spin-Tek
- Unique easy access oil filters & air/oil separators
- Requires no tools to remove or install- saving time & money
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Rated up to 423.6 CFM at 100 PSI (145 PSI maximum)
- Heavy-Duty Sound Attenuated Cabinet
- Provides lower decibel operation than a typical rotary screw unit
- Rated at 80 dBA; 2" NPT air outlet
- Designed For Use With Stationary Air Receiver (Not Included)
- Air receivers can be purchased separately to meet your specific needs
- 10 Year Limited Factory Pump Warranty (See Manual For Details)
- 5 year factory warranty on cabinet & motor; 2 years on rest of unit
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT019 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
100
Pump
CFM
423.6
CFM Rated @
100 PSI
Max PSI
145 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
2 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
3606 Pounds
Certification
UL/CSA/ETL/ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
82 Inches
Product Width
50 Inches
Product Height
73 Inches
Power Type
Electric
Additional Model Numbers
ERV1000003-460, 815002010595
Grade
Style
CFM
423.6
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
423.6 CFM Rated @ 100 PSI
Tank Size
0 Gallons
