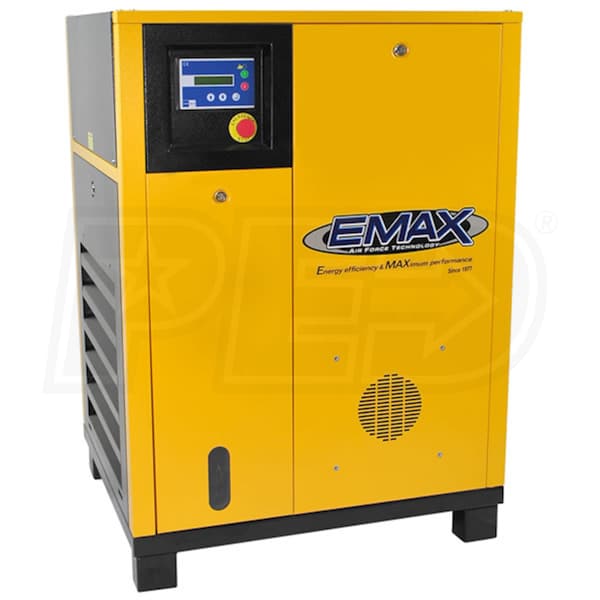

EMAX 15-HP Rotary Screw Air Compressor (230V 3-Phase)
Model: ERS0150003
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
62
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
62 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Rotary Screw Air System
- 208/230V 3-phase drives 1750 RPM motor
- Drive-Tek
- Reduces energy demand up to 33%
- VFD Soft Start Motor
- Provides reduced energy demand & amp draw on start up
- PLC Controller
- Monitors maintenance, temperature, oil level, filtration & hours
- Also monitors remote start/stop
- Spin-Tek
- Unique easy access oil filters & air/oil separators
- Requires no tools to remove/install saving time and money
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Heavy Duty Sound Attenuated Cabinet
- Provides lower 67 dBA operation than a typical rotary screw
- Designed For Use With Stationary Air Receiver (Not Included)
- 2 year limited factory warranty on all electrical components
- 5 year limited factory warranty on cabinet & motor
- 10 yr. limited warranty on Air End Pump w/purchase of service kit
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT003 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
62
CFM Rated @
100 PSI
Max PSI
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
804 Pounds
Certification
UL
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
32 Inches
Product Width
36 Inches
Product Height
50 Inches
Power Type
Electric
UPC
815002010359
Grade
Style
CFM
62
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
62 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Rotary Screw Air System
- 208/230V 3-phase drives 1750 RPM motor
- Drive-Tek
- Reduces energy demand up to 33%
- VFD Soft Start Motor
- Provides reduced energy demand & amp draw on start up
- PLC Controller
- Monitors maintenance, temperature, oil level, filtration & hours
- Also monitors remote start/stop
- Spin-Tek
- Unique easy access oil filters & air/oil separators
- Requires no tools to remove/install saving time and money
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Heavy Duty Sound Attenuated Cabinet
- Provides lower 67 dBA operation than a typical rotary screw
- Designed For Use With Stationary Air Receiver (Not Included)
- 2 year limited factory warranty on all electrical components
- 5 year limited factory warranty on cabinet & motor
- 10 yr. limited warranty on Air End Pump w/purchase of service kit
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT003 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
62
CFM Rated @
100 PSI
Max PSI
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
804 Pounds
Certification
UL
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
32 Inches
Product Width
36 Inches
Product Height
50 Inches
Power Type
Electric
UPC
815002010359
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
62
CFM Rated @
100 PSI
Max PSI
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
804 Pounds
Certification
UL
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
32 Inches
Product Width
36 Inches
Product Height
50 Inches
Power Type
Electric
UPC
815002010359
