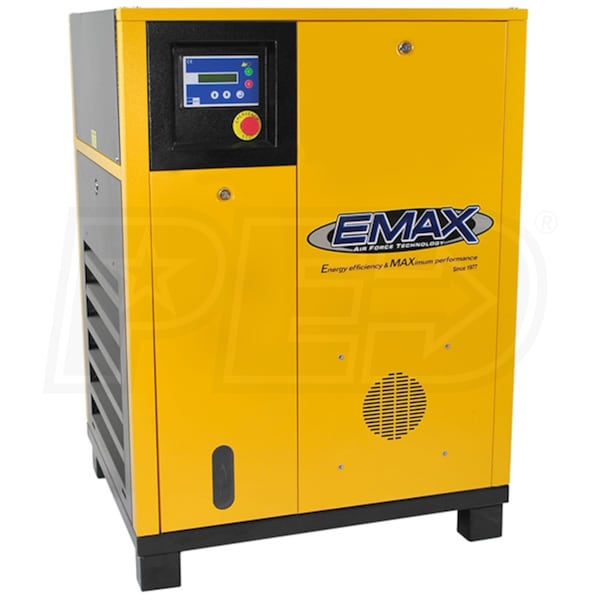

EMAX 10-HP Rotary Screw Air Compressor (208/230V 1-Phase)
EMAX 10-HP Rotary Screw Air Compressor (208/230V 1-Phase)
+
Share This Product
-
Product Description
-
1Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
45
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
45 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Rotary Screw Air System
- 208/230V 1-Phase motor drives 1750 RPM motor
- Drive-Tek
- Reduces energy demand up to 33%
- Standard Wye-Delta Soft Start Motor
- Provides reduced energy demand and amp draw on start up
- PLC Controller - Advanced Maintenance Intelligence Monitor
- Maintenance, temperature, oil level, filtration and hours
- Remote start/stop
- Spin-Tek
- Unique easy access oil filters & air/oil separators
- Requires no tools to remove/install saving time and money
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Heavy Duty Sound Attenuated Cabinet
- Provides lower decibel operation than a typical rotary screw
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT001A Maintenance Kit required to validate warranty coverage
- Designed For Use With Stationary Air Receiver (Not Included)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
45
CFM Rated @
100 PSI
Max PSI
150 PSI
Pump Type
Rotary
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
930 Pounds
Certification
UL
Consumer Warranty
10 Years
Commercial Warranty
2 Years
Product Length
33 Inches
Product Width
24 Inches
Product Height
42 Inches
Power Type
Electric
Grade
Style
CFM
45
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Commercial
CFM
45 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Rotary Screw Air System
- 208/230V 1-Phase motor drives 1750 RPM motor
- Drive-Tek
- Reduces energy demand up to 33%
- Standard Wye-Delta Soft Start Motor
- Provides reduced energy demand and amp draw on start up
- PLC Controller - Advanced Maintenance Intelligence Monitor
- Maintenance, temperature, oil level, filtration and hours
- Remote start/stop
- Spin-Tek
- Unique easy access oil filters & air/oil separators
- Requires no tools to remove/install saving time and money
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Heavy Duty Sound Attenuated Cabinet
- Provides lower decibel operation than a typical rotary screw
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT001A Maintenance Kit required to validate warranty coverage
- Designed For Use With Stationary Air Receiver (Not Included)
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
45
CFM Rated @
100 PSI
Max PSI
150 PSI
Pump Type
Rotary
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
930 Pounds
Certification
UL
Consumer Warranty
10 Years
Commercial Warranty
2 Years
Product Length
33 Inches
Product Width
24 Inches
Product Height
42 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
45
CFM Rated @
100 PSI
Max PSI
150 PSI
Pump Type
Rotary
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
930 Pounds
Certification
UL
Consumer Warranty
10 Years
Commercial Warranty
2 Years
Product Length
33 Inches
Product Width
24 Inches
Product Height
42 Inches
Power Type
Electric
