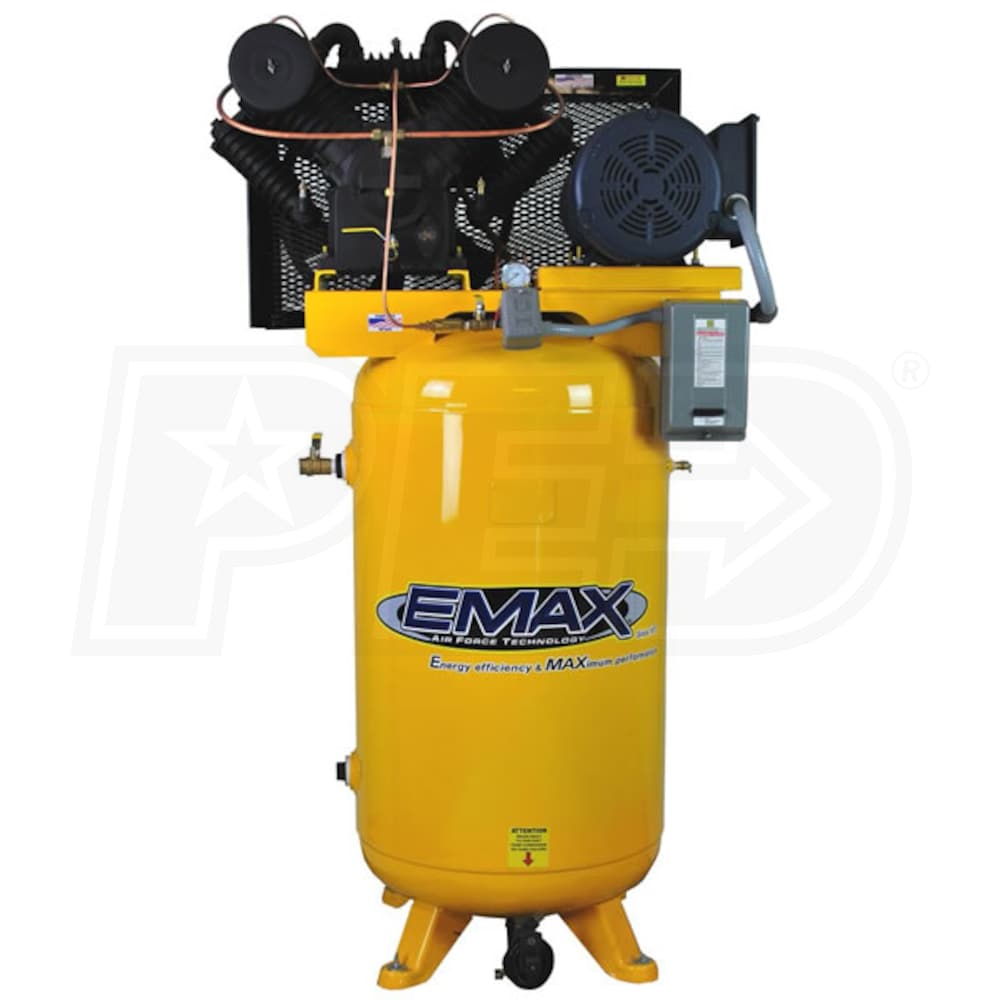

EMAX 10-HP 80-Gallon V-4 Two-Stage Air Compressor (230V 1-Phase)

EMAX 10-HP 80-Gallon V-4 Two-Stage Air Compressor (230V 1-Phase)
Model: EP10V080V1
$3,099.00
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$50.00
Free ShippingNo Sales Tax* (Except IL)$3,099.00Buy Now
Free FreightNo Sales Tax* (Except IL)$3,099.00Visit Site
No Sales Tax* (Except IL)$3,149.00Visit Site
Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
Two Stage 1-Phase
CFM
34
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
34 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • Piston Series V-4 2-Stage 800 RPM Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum performance & longevity
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • Built-In Inter-Cooler & After-Coolers
  • Allows air to be cooled between stages
  • Second cooling stage cools the air before it goes into the tank
  • 10-HP Grade Industrial Motor
  • Low 1750 RPM design extends useful life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Magnetic Starter
  • Gives you longer life on your controls
  • Prevents overloads and gives you trouble-free operation
  • Limited to defect in materials & workmanship
  • Auto Tank Drain
  • 110V dual timer controlled, eliminates daily maintenance
  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 5 Year Limited Warranty On Air Compressor Pump & Tank
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
34
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
915 Pounds
Product Length
45 Inches
Product Width
48 Inches
Product Height
78 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002012476
Grade
Consumer
Style
Two Stage 1-Phase
CFM
34
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
34 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • Piston Series V-4 2-Stage 800 RPM Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum performance & longevity
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • Built-In Inter-Cooler & After-Coolers
  • Allows air to be cooled between stages
  • Second cooling stage cools the air before it goes into the tank
  • 10-HP Grade Industrial Motor
  • Low 1750 RPM design extends useful life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Magnetic Starter
  • Gives you longer life on your controls
  • Prevents overloads and gives you trouble-free operation
  • Limited to defect in materials & workmanship
  • Auto Tank Drain
  • 110V dual timer controlled, eliminates daily maintenance
  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 5 Year Limited Warranty On Air Compressor Pump & Tank
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
34
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
915 Pounds
Product Length
45 Inches
Product Width
48 Inches
Product Height
78 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002012476
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
34
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Weight
915 Pounds
Product Length
45 Inches
Product Width
48 Inches
Product Height
78 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002012476
