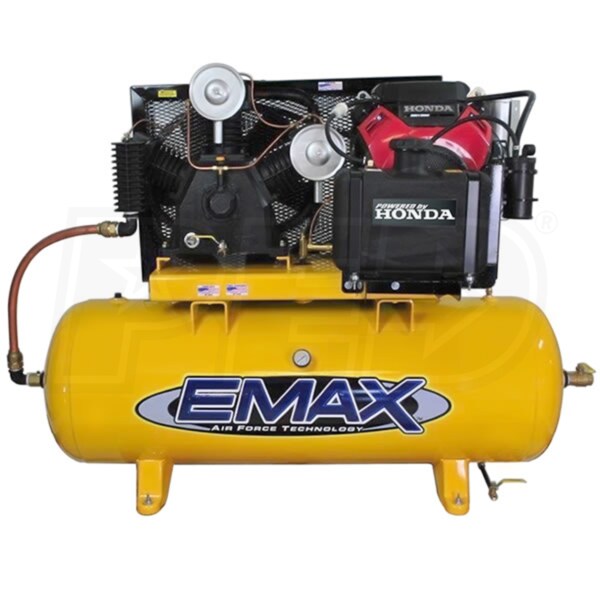

EMAX 24-HP 120-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model:
EGES24120T
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
57
Tank Size
120
- 24-HP Honda GX Engine w/ Electric Start
- OHV design provides excellent torque & fuel efficiency
- Provides long life & proven durability (gas tank not included)
- Low 3200 RPM Pump
- Solid cast iron construction & B-10 bearing extends life
- Flow-Tek Concentric Disc Valves
- Delivers maximum air flow & reliability with low replacement cost
- Cool-Tek Cool Running Compressor
- 35% lower operating temperature
- Reduces moisture build up & extends pump life
- Air-Stream Technology
- Provides up to 50% longer pump life
- "One Turn" Belt Adjuster
- Fast & easy maintenance
- Reduces vibration & extends belt life
- Gate Valve Oil Drain
- Provides quick, clean oil changes; simplifies maintenance
- 120 Gallon ASME Air Receiver
- 5 year factory warranty on pump & tank; 2 years on other components
- This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- ***Battery & Cables Not Includes; Must Be Purchased Separately***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EGES24120T
Engine
HP
24
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Pump
CFM
57
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
1110 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
2 Years
Product Length
86 Inches
Product Width
48 Inches
Product Height
74 Inches
Power Type
Gas
UPC
815002011820
