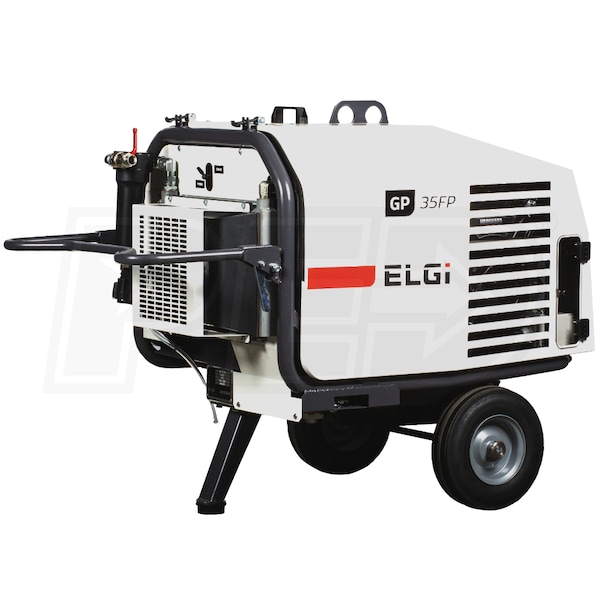

ELGi GP 35FP - 23 HP Portable Rotary Screw Air Compressor (35 CFM / 218 PSI)

Model:

GP35FP

Write A Review
$12,825.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

ELGi GP 35FP - 23 HP Portable Rotary Screw Air Compressor (35 CFM / 218 PSI)
ELGi GP 35FP - 23 HP Portable Rotary Screw Air Compressor (35 CFM / 218 PSI)
Model: GP35FP
$12,825.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Grade

Commercial

Engine Brand

Briggs & Stratton Vanguard

CFM

35

Tank Size

0

  • ELGi GP 35FP Portable Rotary Screw Air Compressor
  • An ideal choice for fiber optic cable blowing professionals
  • 627cc 23-HP Vanguard V-Twin OHV Gasoline Engine
  • Electric start for easier operation (Includes Battery)
  • OHV design optimizes performance for increased engine life and fuel efficiency
  • Superior balance for reduced engine nose and vibration
  • 3.9-Gallon Fuel Tank
  • Provides over 2-hours of runtime on a single tank of gas
  • ELGi Belt Drive Rotary Screw Air End
  • Produce 35 CFM @ 218 PSI (Max)
  • Minimum working pressure 80 PSI
  • Integrated Aftercooler & Moisture Separator
  • Reduces service air temperature to 3.6F over ambient

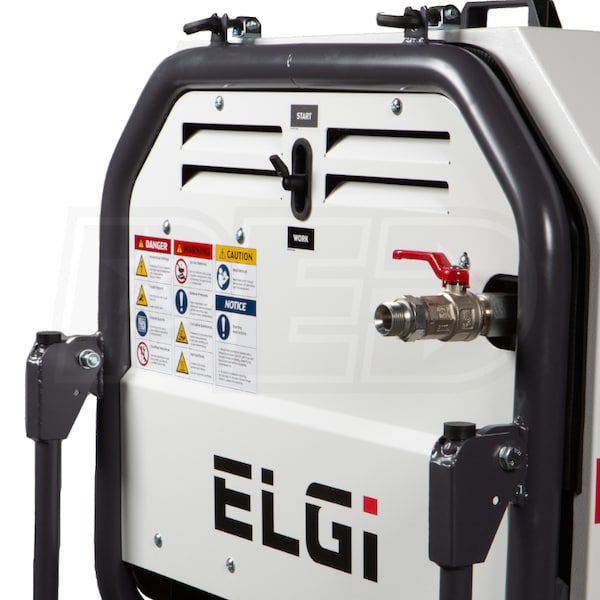

  • (1) 3/4" Air Outlet w/ Ball Valve
  • Compatible with most fiber optic cable blowing equipment
  • Easy Service & Maintenance

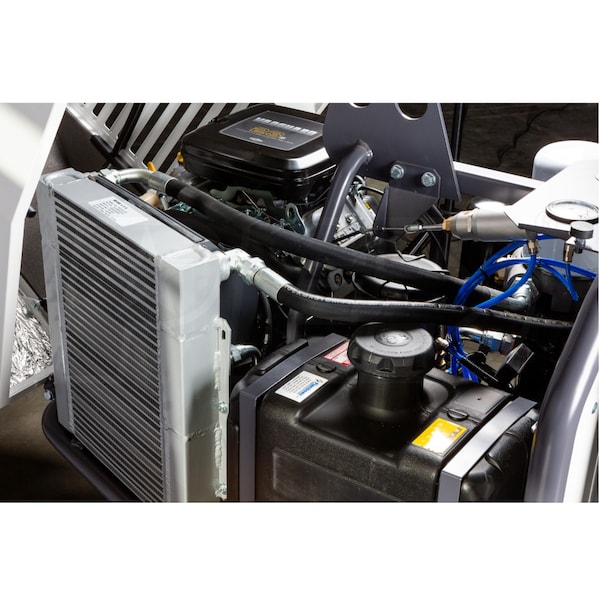

  • Enclosure lifts to allow access to all engine/air components
  • Portable Design

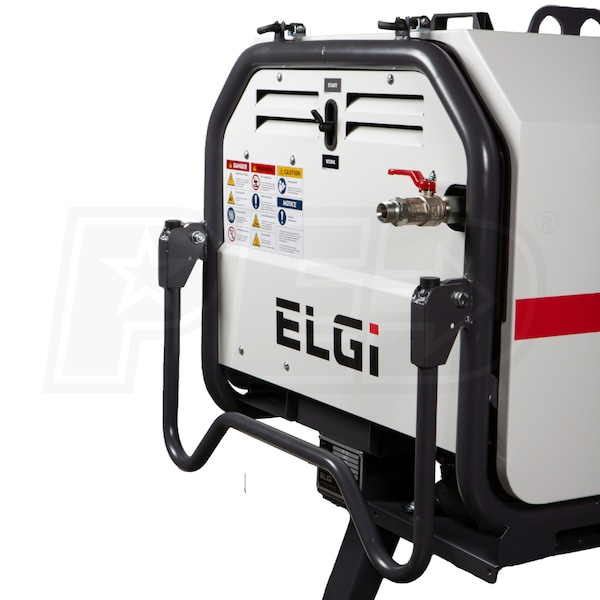

  • Folding handle and pneumatic tires for easier transportation
  • Integrated Lifting Point & Forklift Pockets
  • Make this easy to lift on the jobsite or when loading/unloading
  • 1-Year / 2,000-Hour Full Machine Warranty
  • 3-Year Vanguard Commercial Limited Engine Warranty
  • 5-Year/ Unlimited Hour ELGi Air End Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GP35FP
specs product image PID-143450
Engine
HP
23
Auto Idle
Yes
Engine Brand
Briggs & Stratton Vanguard
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Fuel Tank Size
3.9
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
218 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
218 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Duty Cycle
100%
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Air Tools
NPT
3/4"
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
573 Pounds
CA (CARB) Compliant
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
46 Inches
Product Width
30.5 Inches
Product Height
40 Inches
Power Type
Gas
