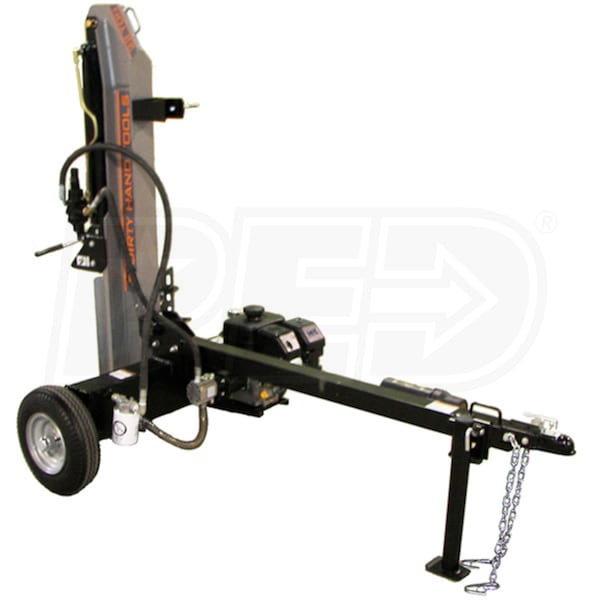

Dirty Hand Tools 22-Ton Horizontal / Vertical Gas Log Splitter

Model:

100171

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Dirty Hand Tools 22-Ton Horizontal / Vertical Gas Log Splitter
Dirty Hand Tools 22-Ton Horizontal / Vertical Gas Log Splitter
Model: 100171
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

  • 22-Ton Splitting Force
  • Plenty of power to split hardwood with ease
  • 6.5 Gallon Hydraulic System Capacity
  • 5-gallon reservoir
  • 13-gallon per minute, 2-stage pump
  • 6.5HP/196cc Kohler SH265 4-Cycle Engine
  • Fast 11 second cycle time - down and back
  • Patented Full Length Beam
  • Handle up to 25-inch logs with ease
  • 8-inch foot plate and removable stripper plates
  • Includes log catcher and built-in log cradle
  • 8-Inch High Wedge
  • Heat treated steel for maximum durability
  • 16-Inch O.D. High Speed Road Tires
  • DOT approved
  • 2-Inch Ball Coupler With Safety Chains
  • Flip down stand
  • 3-2-1 Warranty
  • 3 year warranty on workmanship
  • 2 year warranty on the engine; one year warranty on hydraulics
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

100171
specs product image PID-11198
Engine
Engine Brand
Kohler
Starting System
Recoil Start
HP
6.5 HP
CC
196 CCs
Fuel Tank Size
0.95 Gallons
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
5 Gallons
Max Pump PSI
3400 PSI
Cylinder Diameter
4 Inches
Cylinder Length
24 Inches
Cycle Time
11 Seconds
Tonnage
22 Tons
Overview
Assembly Required
Yes
Weight
595 Pounds
Consumer Warranty
3 Years
Product Length
88.0 Inches
Product Width
46.0 Inches
UPC
856206004003
Wedge
Wedge Material
Steel
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons

Reviews

(88)
Dirty Hand Tools 100171 Reviews & Ratings
Customer Photos and Videos
review image 1
review image 2
review image 3
+3
review image 4
review image 5
review image 6
Customer Rating
4.73
(88 Ratings)
5
(72)
4
(11)
3
(3)
2
(1)
1
(1)
Verified Buyer
Verified Buyer
Owned For 2 Years & Still Splitting Very Well!
By Mark H.
Cutler, Ohio
Purchased 04/07/2018 |
Review Posted 10/20/2020
I have split many rounds with this log splitter, including large 24-inch diameter by 18 inch long rounds of oak and ash with no problem. The log splitter still starts up with the first pull and runs great! I have towed it a few times to properties and back and have had no issues with towing/wheels/ etc.

The only issue I have with this splitter is the hose fittings tend to vibrate loose and start dripping hydraulic fluid. Plus, the unit on a whole is rather "noisy", so I use earplugs when I split for any length of time.

I can't complain one bit about how easy the log splitter starts with a single pull even after two years of use. I have split numerous cords of all kinds of wood with this splitter, always in the vertical position. I have yet to use it in the horizontal position. It seems to run forever on a single tank of gas.

I wish the "ruler" sticker on the unit was placed in a different spot because it has worn off long ago. I have used a sharpie to put my most frequent measurements on the unit. I cut my rounds into as many 18" lengths as possible. I have split white oak, red oak, sweetgum, cherry, maple, pine, boxelder, ash, elm, hickory, walnut, and the unit has been able to handle all wood types I have put in it!

Overall, I would recommend this log splitter to anyone that splits wood for winter use. It has saved me TONS of time and my physical energy with all the wood I have split to date and will split in the future.
Mark H. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Id Buy It Again, Exceeded Expectations, Reliable
Cons:
Hoses Vibrate Loose, Overall Noisy
Verified Buyer
Verified Buyer
Leaky Hydraulics
By Jason D.
Perryopolis, Pennsylvania
Purchased 03/17/2019 |
Review Posted 07/08/2019
I bought mine online because I did not want a rusty one sitting outside at a store. I read the instructions and assembled it which was not hard. First log I split I have hydraulic fluid leaking in two places. First the cylinder seal was DOA. The factory assembler also did not tighten the fitting on top of the valve enough. DHT was good with warranty and is shipping me a new cylinder but I have to disassemble the machine and put it back together which is costing me valuable work time.
Jason D. Does Not Recommend This
Was this review helpful?
Expert Response
Thank you for the feedback, and we are sorry to hear about the frustrating circumstances regarding your defective cylinder/seal. Though we are happy to hear that DHT provided sufficient support in sending you a replacement, we do apologize for the time you have to spend in order to make the repair.

Should you experience any further difficulties, or need some guidance when replacing the components, please do not hesitate to reach out to us directly at any time. We would be happy to help.

We greatly value your business, and hope to earn another opportunity to work with you in the future, thank you.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
4/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
2/5
icon-review-marker
Value
2/5
icon-review-marker
Cons:
Unreliable, Durability, Low Quality
Verified Buyer
Verified Buyer
Nice Splitter
By Matt W.
Mount Shasta, California
Purchased 06/10/2016 |
Review Posted 05/20/2019
I've had my Dirty Hands 22-ton splitter for four seasons now and has been responsible for splitting more than 10 chords per year (I help other folks with their yearly load). Over the years I have been impressed with it's work capacity (5 to 6 chord splitting sessions) and the 22 ton hydraulic system has only stalled on only two pieces of wood. It seems that I can get through close to two chords on a tank of gas which I feel is quite good. The only issue I have is that the splitter vibrates too much and that if you're working on your concrete driveway the tongue of the machine will move/wander a bit. Besides that I feel it was a quality purchase.
Matt W. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Easy To Use, I'd Buy It Again
Cons:
Vibrates Too Much
Verified Buyer
Verified Buyer
This Product Is A Beast
By Adam W.
Burlington, New Jersey
Purchased 04/06/2019 |
Review Posted 04/29/2019
I'm very impressed with the power and craftsmanship. I am completing satisfied with my purchase.
Adam W. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, High Quality, I'd Buy It Again, Exceeded Expectations
Cons:
Heavy
Verified Buyer
Verified Buyer
Best Gift I Bought My Husband Ever!
By Marna V.
Oregon
Purchased 03/15/2019 |
Review Posted 04/05/2019
Not a lightweight! Built strong for a tough job.
Marna V. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Easy To Use, High Quality, Durable
Verified Buyer
Verified Buyer
Looking For Help
By Dabney H.
Fairfax, Virginia
Purchased 03/04/2019 |
Review Posted 03/26/2019
I was excited to get the splitter home and running. After a simple assembly, I filled the oil and hydraulic fluid as directed. The motor started fine, however, it lugs terribly under load and almost stops running. After splitting wood for approximately one hour the hydraulic cylinder started to make a high pitch whine, I immediately stopped running the splitter and noticed the cylinder and hydraulic tank were extremely hot, almost too hot to touch without a gloved hand. I stopped running the splitter and contacted customer support. Unfortunately, I have not heard back from anyone and am still waiting for direction on having the splitter serviced.
Dabney H. Does Not Recommend This
Was this review helpful?
Expert Response
Thank you for following up with us on your initial experience using your log splitter. Have you reached out to us to discuss what is going on with your splitter in greater detail? Based on the order notes, it doesn't look like it. If this is the case, and you have yet to hear back from Dirty Hands, please reach out to us so we can help you get this straightened out.

Your business is greatly appreciated, and we hope to work together again soon.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
2/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Price
Cons:
Unreliable, Durability
Verified Buyer
Verified Buyer
Had Some Leaks
By Robert D.
Kansas City, Missouri
Purchased 02/04/2019 |
Review Posted 02/27/2019
Had some leaks.
Robert D. Recommends This
Was this review helpful?
Expert Response
Please reach out to us directly with further details HERE if you are still experiencing any leaking.

We appreciate your business very much and hope to work with you again soon, thank you!
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Verified Buyer
Verified Buyer
This Is Just What I Have Needed For Many Years
By Renfred Z.
Orange Park, Florida
Purchased 12/25/2018 |
Review Posted 02/07/2019
The product arrived and thanks to the hydraulic lift, driver, and myself we got it on my driveway. I am 71 years old and I assembled and unpackaged the machine myself without any help. The instructions are easy to understand and the way it was packaged allowed me to assemble it without help. I filled it with 5 gallons of hydraulic oil then put engine oil in and fueled it up. I also installed by myself the large table. With the table one needs a long flexible funnel to fill the gas tank. I highly recommend the large table, not the little one that comes with it. It is worth the $100 because it protects the hydraulic tank and engine from logs falling accidentally on the key components. By the way, the engine started on the second crank. My daughters love to split wood now.
Renfred Z. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Easy To Use, Fast, Reliable
Cons:
Should Come With Large Table
Verified Buyer
Verified Buyer
No More Axe Swinging
By Garry A.
Palmetto, Florida
Purchased 10/09/2018 |
Review Posted 11/07/2018
Split every log I put it on!
Garry A. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, High Quality, Fast, Reliable
Owned For 3 Years. Great Splitter For The Price. Fast Cycle Time
By Joe M.
New York, New York
Review Posted 11/04/2018
As in the title, I am very happy with the purchase. The only complaint is that all of the fittings leak. The assembler must have been short on thread sealer that day because every fitting has given me leak issues. I recommend this but be sure to seal all threads prior to use.
Joe M. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Easy To Use, Fast, Reliable
Cons:
Assembly

How-To Articles

Power Equipment How-To Library
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
Dirty Hand Tools 22-Ton Horizontal / Vertical Gas Log Splitter
Dirty Hand Tools 100171
Dirty Hand Tools 100171
Dirty Hand Tools 100171
Dirty Hand Tools 100171
Dirty Hand Tools 100171
Customer Review Images
