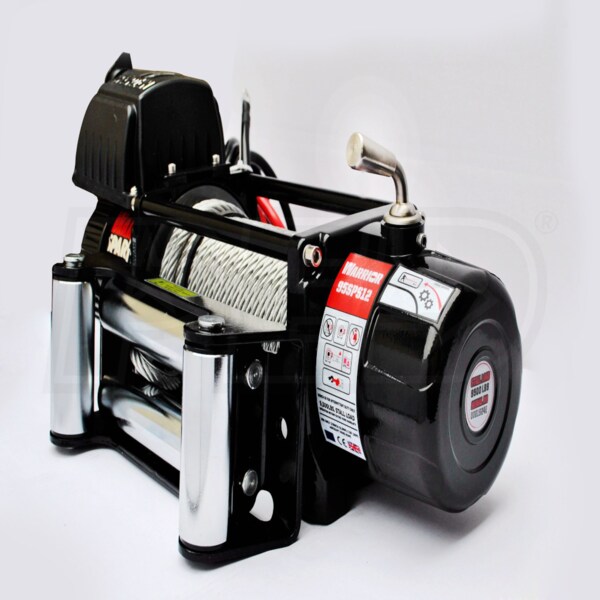

Detail K2 Spartan 9,500 LB 12-Volt Electric Winch

Model:

9500

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Detail K2 Spartan 9,500 LB 12-Volt Electric Winch
Detail K2 Spartan 9,500 LB 12-Volt Electric Winch
Model: 9500
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • High-Performance 12-Volt Motor
  • Weather sealed design protects against the elements
  • Highly capable and responsive 4.6HP/3.2kw motor
  • Spartan Strength
  • Rated line pull of 9,500 lbs. for consumer and industrial use
  • Hoists a 0.36" (dia.) x 65.6' long steel cable with a 5/16" hook
  • 100% loaded tested for performance you can trust
  • Heat Treated Planetary Gearing System
  • Designed to perform efficiently under intense load reducing wear
  • Gear reduction ratio of 230:1 with a 2.5"x 8.8" drum size
  • Full Load-Holding Brake
  • Designed to automatically stop and hold the load/motor in place
  • Acts as a failsafe if the motor loses power
  • Chip Resistant Gloss Paint Finish
  • Keeps this Spartan looking pretty; defends against corrosion
  • The Complete Package:
  • Steel wire cable and stainless steel roller fairlead
  • Full set of mounting hardware and heavy-duty battery leads
  • 10 ft. remote control handset and mounting hardware
  • 9-Volt Battery Sold Separately
  • Lifetime Limited Warranty on Gears | 3-Year on Motor
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

9500
specs product image PID-99372
Winches
Mounting Pattern
10 x 4.5 Inches
Rated Line Pull
9500 Pounds
Overview
Assembly Required
Yes
Weight
73 Pounds
Certification
CE
Product Length
21.3 Inches
Product Width
6.3 Inches
Product Height
10.2 Inches
UPC
826518003155
Additional Model Numbers

9500., 9500
