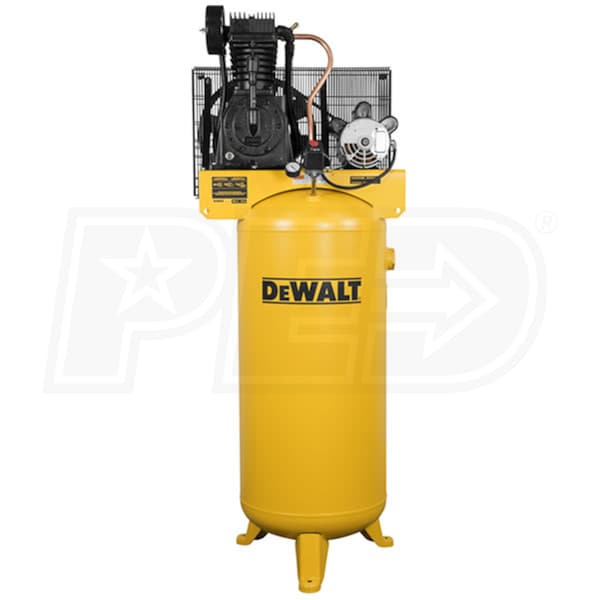

DeWalt 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)

DeWalt 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: DXCMV5076055
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Number of Reviews (5)
Write A Review
$1,279.00
In-Stock
Ships from DeWalt
Factory items ship direct from the manufacturer
Shipping times vary
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons
+$50.00
Free Shipping$1,279.00Buy Now
Free Freight$1,279.00Visit Site
$1,329.00Visit Site
In-Stock
Ships from DeWalt
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 5
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
Two Stage 1-Phase
CFM
15.3
CFM Rated @ 100 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
15.3 CFM Rated @ 100 PSI
Tank Size
60 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 5 HP Electric Motor With Thermal Overload Protection
  • T.O.P.S. protects the motor from voltage fluctuations
  • Magnetic starter not required
  • Patented Two Stage Cast Iron Industrial Duty Pump
  • Provides 15.3 CFM at 100 PSI for big jobs & multiple users
  • Patented Cast Iron Flywheel
  • Large fins for low pump RPM, improved cooling, longer pump life
  • Patented Asymmetrical, Deep Groove Cooling Fins
  • Cooler pumps last longer & run more effectively
  • Integrated Control Panel
  • Tank & output pressure gauges are large & easy to see
  • Easy access to pressure regulator & 2 quick-connect air outlets
  • 2 Year Factory Pump Warranty
  • 1 year Factory Warranty on all other parts
  • 60 Gallon Air Tank
  • ASME rated for safety; 175 PSI maximum pressure
  • Shipped With Synthetic Blend Compressor Oil
  • Easy to wire into your 230 volt, single phase system
  • Pump Warranty Extension
  • Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
15.3
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Air Filter
No
Overview
Certification
ASME
Weight
424 Pounds
Product Length
40 Inches
Product Width
31 Inches
Product Height
80 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
UPC
846212053966
Grade
Consumer
Style
Two Stage 1-Phase
CFM
15.3
CFM Rated @ 100 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
15.3 CFM Rated @ 100 PSI
Tank Size
60 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 5 HP Electric Motor With Thermal Overload Protection
  • T.O.P.S. protects the motor from voltage fluctuations
  • Magnetic starter not required
  • Patented Two Stage Cast Iron Industrial Duty Pump
  • Provides 15.3 CFM at 100 PSI for big jobs & multiple users
  • Patented Cast Iron Flywheel
  • Large fins for low pump RPM, improved cooling, longer pump life
  • Patented Asymmetrical, Deep Groove Cooling Fins
  • Cooler pumps last longer & run more effectively
  • Integrated Control Panel
  • Tank & output pressure gauges are large & easy to see
  • Easy access to pressure regulator & 2 quick-connect air outlets
  • 2 Year Factory Pump Warranty
  • 1 year Factory Warranty on all other parts
  • 60 Gallon Air Tank
  • ASME rated for safety; 175 PSI maximum pressure
  • Shipped With Synthetic Blend Compressor Oil
  • Easy to wire into your 230 volt, single phase system
  • Pump Warranty Extension
  • Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
15.3
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Air Filter
No
Overview
Certification
ASME
Weight
424 Pounds
Product Length
40 Inches
Product Width
31 Inches
Product Height
80 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
UPC
846212053966
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
15.3
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Air Filter
No
Overview
Certification
ASME
Weight
424 Pounds
Product Length
40 Inches
Product Width
31 Inches
Product Height
80 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
UPC
846212053966
Reviews
(5)
+
DeWalt DXCMV5076055 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Gabrielle, the Air Compressor Expert
icon-social-fb1
+
Can this unit be wired with 208 volt and work properly?
Rob
from Maryland
January 23, 2018
Answer
I'm sorry to bring bad news to you, but it is very difficult and expensive to convert this unit to another voltage. You will normally need to have a device called a buck booster installed by a certified electrician. If you have any other questions about this or other products from our website, don't hesitate to give us a call. We're here to help.
