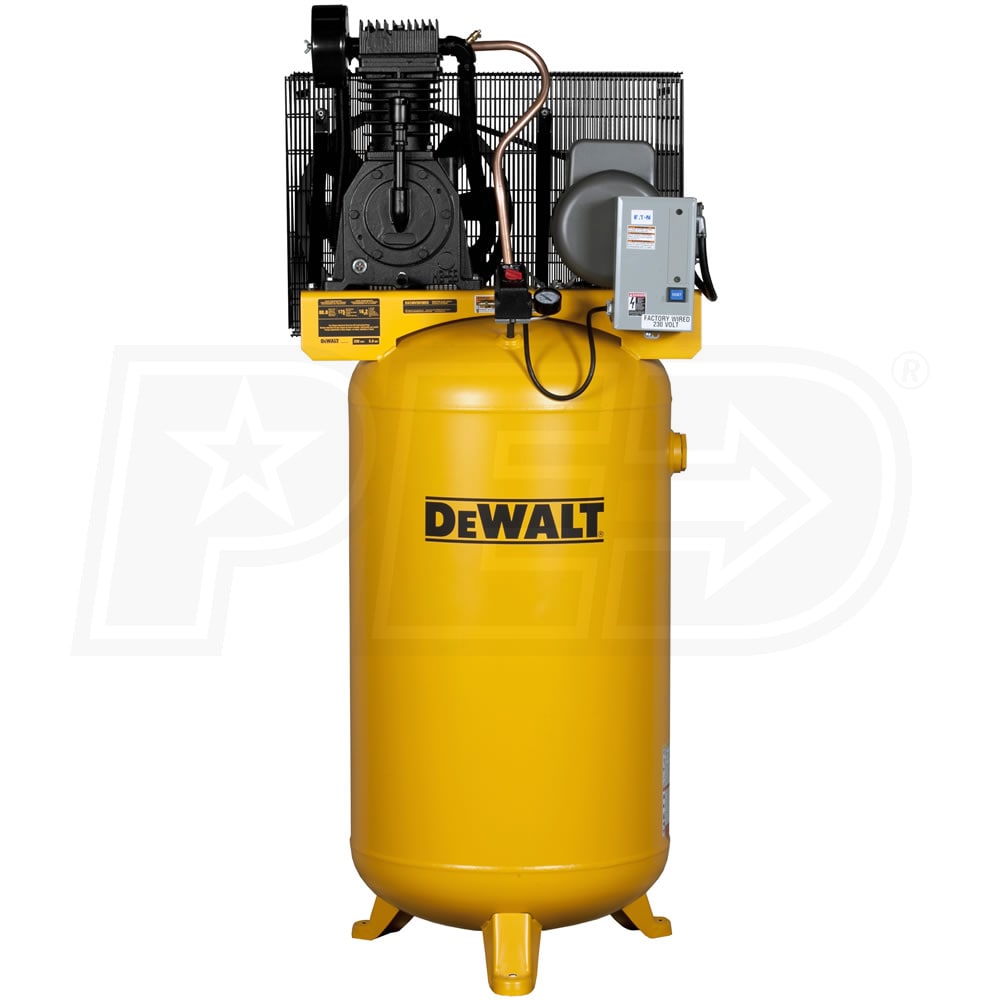

DeWalt 5-HP 80-Gallon Two-Stage Air Compressor (240V 1-Phase)
Model: DXCMV5018055
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$2,069.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from DeWalt
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Free Shipping$2,069.00Buy Now
Free Freight$2,069.00Visit Site
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
17.9
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
17.9 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • 5 HP Baldor Electric Motor
  • 4 pole, 1725 RPM, NEMA rated motor for maximum performance
  • Magnetic starter included
  • Patented Two Stage Cast Iron Industrial Duty Pump
  • Provides 17.9 CFM at 100 PSI for big jobs & multiple users
  • Patented Cast Iron Flywheel
  • Large fins for low pump RPM, improved cooling, longer pump life
  • Patented Asymmetrical, Deep Groove Cooling Fins
  • Cooler pumps last longer & run more effectively
  • Extra Capacity Oil Reservoir With Sight Glass
  • Ensures lower oil temperatures for longer life
  • Integrated Control Panel
  • Tank & output pressure gauges are large & easy to see
  • Easy access to pressure regulator & 2 quick-connect air outlets
  • 80 Gallon Air Tank
  • ASME rated for safety; 175 PSI maximum pressure
  • Shipped With Synthetic Blend Compressor Oil
  • Easy to wire into your 240 volt, single phase system
  • 2 Year Limited Factory Warranty
  • Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
22
Recommended Breaker
40 Amp Breaker
Engine
HP
5
Pump
CFM
17.9
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
470 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212009338
Grade
Commercial
Style
Two Stage 1-Phase
CFM
17.9
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
17.9 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • 5 HP Baldor Electric Motor
  • 4 pole, 1725 RPM, NEMA rated motor for maximum performance
  • Magnetic starter included
  • Patented Two Stage Cast Iron Industrial Duty Pump
  • Provides 17.9 CFM at 100 PSI for big jobs & multiple users
  • Patented Cast Iron Flywheel
  • Large fins for low pump RPM, improved cooling, longer pump life
  • Patented Asymmetrical, Deep Groove Cooling Fins
  • Cooler pumps last longer & run more effectively
  • Extra Capacity Oil Reservoir With Sight Glass
  • Ensures lower oil temperatures for longer life
  • Integrated Control Panel
  • Tank & output pressure gauges are large & easy to see
  • Easy access to pressure regulator & 2 quick-connect air outlets
  • 80 Gallon Air Tank
  • ASME rated for safety; 175 PSI maximum pressure
  • Shipped With Synthetic Blend Compressor Oil
  • Easy to wire into your 240 volt, single phase system
  • 2 Year Limited Factory Warranty
  • Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
22
Recommended Breaker
40 Amp Breaker
Engine
HP
5
Pump
CFM
17.9
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
470 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212009338
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
22
Recommended Breaker
40 Amp Breaker
Engine
HP
5
Pump
CFM
17.9
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
470 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212009338
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
What are the pump RPM and decibel ratings on this particular DeWalt model?
Donald B.
from Washington
September 19, 2019
Answer
The RPM of the pump is 861, and the decibel rating is 85.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
1
