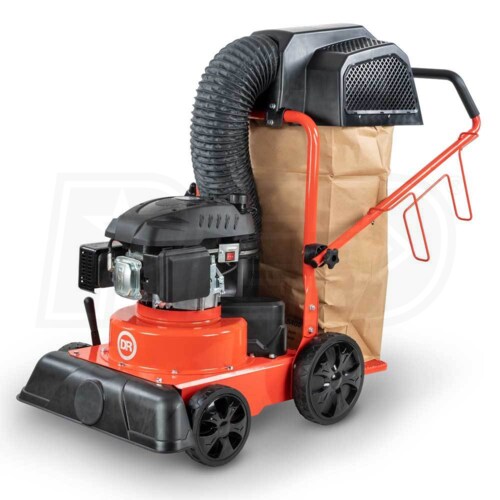

DR PILOT XTSP (24") 4.3HP Leaf & Lawn Self-Propelled Direct Bagging Walk-Behind Vacuum & (1.5") Wood Chipper w/ Electric Start
Model:
WL31004DEN
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Dale, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- PILOT XTSP Leaf & Lawn Walk-Behind Vacuum / Chipper
- Picks up leaves, grass clipping, twigs, nuts & chip branches
- Perfect for smaller properties and landscaped areas
- DR HP 4.3HP / 173cc OHV RV170 Engine w/ Electric Start
- 6.6 ft-lbs. high torque delivers high performance
- Dual element air filter protects the engine from debris
- Self-Propelled with Drive Lever
- Variable speed control lets you set the pace
- 3 forward speeds 0 - 2 mph and 1 reverse position
- Wide 24-Inch Vacuum Path
- Collect up to 3 cu. ft. (3 bushel / 50 lbs.) of lawn debris
- Powerful vacuum force creates more compression and suction power
- 4 Position Adjustable Intake Height
- Snout height adjuster handle adjusts from 1" to 4"
- 1" minimum off the ground for maximum vacuum power
- 4" maximum for less suction, or to create clearance for uneven terrain
- All Steel 5 Blade Impeller
- Covered with a Lifetime Warranty
- Serrated fins aggressively mulch and reduce collected material 10:1
- 1.5" Onboard Chipper
- Hopper size opening 2.78" x 2.68"
- Dispose of branches up to 1.5 inches in diameter
- Hardened tool steel 3" chipping knife has speed of 144 mph
- Direct-Bagging
- EZ-bagger cover and support ring hold bag firmly into place
- Uses standard 30-gallon paper leaf bags and built-in bag caddie holds 10 bags
- Durable Steel Frame w/ Never-Flat Wheels
- 8" front wheels for easy rolling, even on challenging terrain
- Ergonomic handlebar with foam grip adjusts from 32" to 42"
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
WL31004DEN
Impeller
Impeller Material
Steel
Engine
Engine Brand
DR
Starting System
12-Volt Key Start w/ Recoil
Engine Cycle
4-Cycle
HP
4.3 HP
CC
173 CCs
Fuel Tank Size
0.26 Gallons
Engine Cylinders
1 Cylinder
Torque
6.6 Lbs
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Feed Chute
Wood Diameter
1.5 Inches
Feed Type
Gravity
Replaceable Blades
Yes
Number of Blades
1 Blade
Material Type
Wood
Overview
Product Category
Leaf Vacuum
Weight
120 Pounds
CA (CARB) Compliant
Yes
Certification
EPA
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
52 Inches
Product Width
26 Inches
Product Height
52 Inches
Power Type
Gas
UPC
843530008104
Vacuum
Removable Hose
No
Towing
Towable
No
Drive
Speeds
Variable
Maximum Speed
2 MPH
Drive System
Self-Propelled
Wheels
Front Tire Size
8 x 2 Inch
Rear Tire Size
10 x 2 Inch
Tire Type
Plastic Wheels
