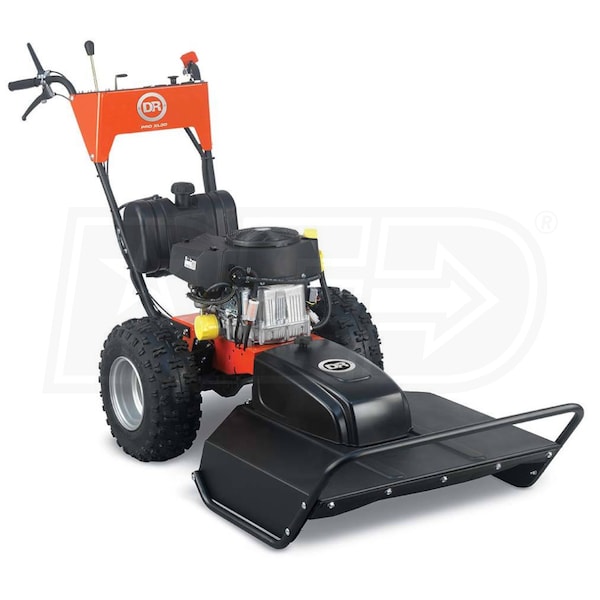

DR PRO XL30 (30") 17.5HP Field & Brush Rough Cut Walk-Behind Mower w/ Electric Start

Model:

AT45230BEN

Write A Review
Product Discontinued
Sorry, this product is no longer available.
DR PRO XL30 (30
DR PRO XL30 (30") 17.5HP Field & Brush Rough Cut Walk-Behind Mower w/ Electric Start
Model: AT45230BEN
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Mid-Grade

Style

Rough Cut

Surface Area

Small Home

Terrain

Hilly

Width

30 Cutting Inches

Engine

Briggs & Stratton



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • PRO XL30 Field & Brush Rough Cut Mower
  • Full-featured self-propelled mower & accept attachments
  • Tackle thick field grass and clear out overgrown brush
  • Briggs & Stratton 17.5 HP / 500cc Professional Series Engine
  • Turn-key electric starting for easy starting
  • Full-pressure oil pump with a spin-off oil filter is great for slopes
  • Cast iron cylinder sleeve and dual-element air filters for extended life
  • Gear-Driven Transmission
  • 3 forward gears lock in your ground speed and 1 reverse gear
  • 1st gear for heavy mowing, 2nd for moderate mowing & 3rd for transport
  • Power Steering
  • Navigate around obstacles with full 180° turn & slopes up to 20°
  • Each wheel is equipped with its own brake, operated by a hand lever
  • 30-Inch, Welded 12-Gauge Pivoting Deck w/ Brush Guard
  • Powder coating is tough, durable, and resists scratches
  • Cuts 6' high grass, 8' high weeds & 2.5" thick saplings
  • Deck pivots from side to side to follow the contour of rough terrain
  • Deck is removable to make servicing blades, cleaning & storing easier
  • Superior Mulching
  • Hardened steel blade chops material into fine mulch
  • 3-sided enclosed deck and brush bar assist in cutting material finely
  • Custom-Made Blade Spindle
  • 1.375" thick cast iron with oversized double-sealed bearings
  • Designed to provide years of maintenance-free use and abuse
  • Built-in into deck housing and reinforced for vibration-free performance
  • Ergonomic Controls
  • Handle blade engagement and traction drive levers
  • Large knob handle for throttle /choke control lever & shift lever
  • Handlebars easily adjust for comfortable mowing on rough terrain
  • Includes plug for optional hour meter accessory (Sold Separately)
  • 18" Puncture Resistant Tires
  • Sealant-filled lugged tread tires provide superior traction
  • Provides flotation to travel over any terrain and reduces vibration
  • Attachments Add 4-Season Versatility (Sold Separately)
  • Commercial grade electric clutch for quick swapping of attachments
  • Convert to a 42" finish mower, 30" snow thrower, woodchipper or 42" grader blade
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

AT45230BEN
specs product image PID-143229
Engine
Engine Brand
Briggs & Stratton
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
17.5 HP
CC
500 CCs
Fuel Tank Size
2 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
Yes
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Product Category
Mower - Walk-Behind
Weight
303 Pounds
CARB Compliant
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
83 Inches
Product Width
32.5 Inches
Product Height
48.2 Inches
Dimensions
Handlebar Height High: 42" - Low: 38"
Power Type
Gas
Deck
Cutting Options
Rear Discharge
Deck Material
12-Gauge
Attachment Capable
Yes
Spindle Material
Ductile Cast Iron
Blades
1 Blade
Deck Construction
Welded
Deck Positions
1 Position
Cutting Width
30 Inches
Cutting Height
3.5"
Number of Wheels
2 Wheels
Drive
Speeds
Variable
Forward Speeds
3 Forward
Reverse Speeds
1 Reverse
Transmission
Gear
Wheels
Rear Tire Size
18 x 6.5 x 8 Inch
Tire Type
Puncture Resistant
