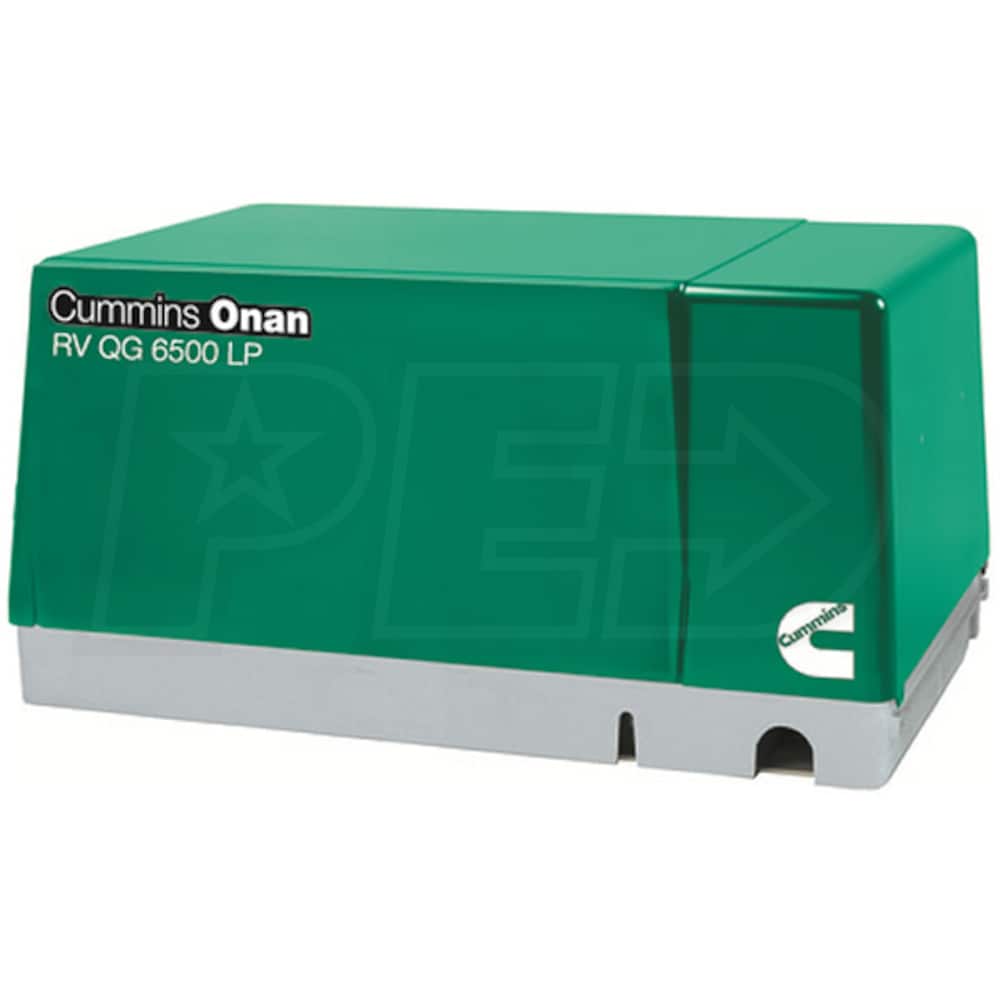

Cummins Onan RV QG 6500 LP - 6.5HGJAB-904 - 6.5kW RV Generator (LP)

Model:

A063B875

Write a Review
$5,653.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 16-20 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
synchrony card logo
$99 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Free Shipping$5,653.00Buy Now
Free Freight$5,653.00Visit Site
Cummins Onan RV QG 6500 LP - 6.5HGJAB-904 - 6.5kW RV Generator (LP)
Cummins Onan RV QG 6500 LP - 6.5HGJAB-904 - 6.5kW RV Generator (LP)
Model: A063B875
$5,653.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Recreational

Style

RV

Run Watts

6,500 Rated Watts

Voltage

120 Single-Phase

Fuel

LP

Engine

Cummins Onan



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 6.5 kW LP Powered RV Generator (Model 904)
  • Provides more power for larger size RVs (30A & 30A Breakers)
  • Runs two 15,000 BTU AC units w/ 1500 additional watts available
  • Cummins Onan 4-Cycle OHV V-Twin Engine (.7 Gal/H @ 1/2 Load)
  • Quietest in its class w/ excellent fuel efficiency
  • Microprocessor Controlled
  • Digital voltage regulator prevents damaging voltage spikes
  • Self-diagnostic capability to simplify troubleshooting
  • Sound-Attenuating Enclosure w/ Thru Flow Cooling System
  • Lowers noise levels while providing cross-flow cooling
  • Integral USDA Forest Service-approved spark-arrestor muffler
  • Universal Mounting Tray
  • Structural capability to support the generator set in RV apps.
  • 4-Point focalized mounting system with vibration isolators
  • Integral Control Panel
  • Instant one-touch stop switch
  • Added Features
  • Fuel filter, oil filter, air filter & mechanical governor
  • Automotive type starter & electric fuel solenoid
  • 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A063B875
specs product image PID-6318
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6500 Watts
Fuel Type
LP
LP Fuel Consumption @ 50% Load
0.8 gallons/hr
LP Fuel Consumption @ 100% Load
1.2 gallons/hr
Rated Amps
54.2 Amps
Decibel Rating @ 3m
67
Idle Control
No
Circuit Breaker Size
30 Amps
Min. Air Inlet - Front
4.7" x 18.7"
Min. Air Outlet - Bottom
6.3" x 17.8"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
11.6 HP
CC
653 CC
Consumer Engine Warranty
3 Years
Engine RPM
2880 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
290 Pounds
Consumer Warranty
3 Years
Product Length
33.6 Inches
Product Style
RV Generator
Product Width
22.2 Inches
Product Height
16.7 Inches
Additional Model Numbers

RV QG 6500, A063B875
