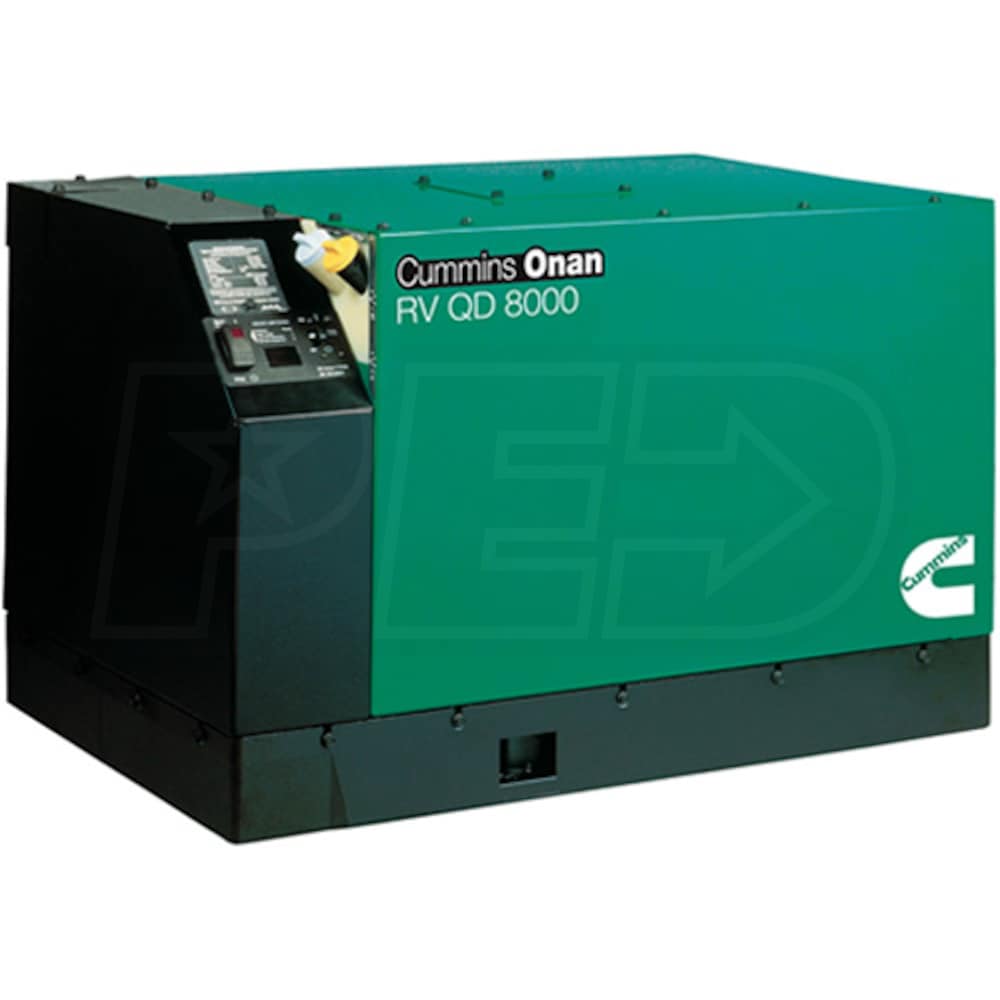

Cummins Onan RV QD8000 - 8HDKAK-1046N - 8.0kW RV Generator (Diesel)
Model: A058J268
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$9,424.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Free Shipping$9,424.00Buy Now
Free Freight$9,424.00Visit Site
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
8,000
Rated Watts
Voltage
120 Single-Phase
Fuel
Engine
Grade
Recreational
Style
RV
Run Watts
8,000
Voltage
120 Single-Phase
Fuel
Diesel
Engine
Cummins Onan
Features
Features
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 8.0 kW Diesel Powered RV Generator (Model 1046)
  • Designed for dual AC Type A RVs (35A 2-Pole Breaker)
  • Runs two 15,000 BTU AC units w/ 3000 additional watts available
  • Cummins Onan 719cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.49 Gal/h 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • High Quality, Pure Sine Wave Electrical Output
  • Digital voltage regulator prevents damaging spikes
  • Computer-Controlled Variable Speed Operation
  • Matches engine speed to load demand, minimizes noise levels
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features
  • 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
Specifications
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Fuel Type
Diesel
Rated Amps
67 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
(66 @ 3M - Half Load) db(A)
Hour Meter
Yes
Min. Air Inlet - Front
6.4" x 20"
Min. Air Outlet - Bottom
7.3" x 12.7"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
16.6 HP
CC
719 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Overview
Weight
420 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Product Length
36.3 Inches
Product Width
23.6 Inches
Product Height
22.3 Inches
Additional Model Numbers
RV QD 8000, A058J268
Grade
Style
Run Watts
8,000
Rated Watts
Voltage
120 Single-Phase
Fuel
Engine
Grade
Recreational
Style
RV
Run Watts
8,000
Voltage
120 Single-Phase
Fuel
Diesel
Engine
Cummins Onan
Features
Features
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 8.0 kW Diesel Powered RV Generator (Model 1046)
  • Designed for dual AC Type A RVs (35A 2-Pole Breaker)
  • Runs two 15,000 BTU AC units w/ 3000 additional watts available
  • Cummins Onan 719cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.49 Gal/h 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • High Quality, Pure Sine Wave Electrical Output
  • Digital voltage regulator prevents damaging spikes
  • Computer-Controlled Variable Speed Operation
  • Matches engine speed to load demand, minimizes noise levels
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features
  • 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
Specifications
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Fuel Type
Diesel
Rated Amps
67 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
(66 @ 3M - Half Load) db(A)
Hour Meter
Yes
Min. Air Inlet - Front
6.4" x 20"
Min. Air Outlet - Bottom
7.3" x 12.7"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
16.6 HP
CC
719 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Overview
Weight
420 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Product Length
36.3 Inches
Product Width
23.6 Inches
Product Height
22.3 Inches
Additional Model Numbers
RV QD 8000, A058J268
Product Specs
+
Specifications
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Fuel Type
Diesel
Rated Amps
67 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
(66 @ 3M - Half Load) db(A)
Hour Meter
Yes
Min. Air Inlet - Front
6.4" x 20"
Min. Air Outlet - Bottom
7.3" x 12.7"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
16.6 HP
CC
719 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Overview
Weight
420 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Product Length
36.3 Inches
Product Width
23.6 Inches
Product Height
22.3 Inches
Additional Model Numbers
RV QD 8000, A058J268
Reviews
(1)
+
Cummins Onan A058J268 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Hello, I was curious if the Cummins Onan QD8000 could be wired to accept a standard 50Amp connection for our concession trailer. We are looking into replacing the portable 5K generator we have and mounting it on the front of the trailer on top of the tounge of the trailer. If it cant be wired for a 50A/4 prong plugin, can purchase a fuse box that would allow us to adapt our trailer to the generator? Any opinions on options would be appreciated. Thank you!
Keith Dalton
from North Dakota
March 30, 2014
Answer
This generator will not work with your concession trailer as the generators output is 120V only and cannot be converted to 240V per your 50A 4 wire information. This unit is designed for use in RV applications only and not recommended or designed for use in a concession trailer. We recommend you search for a true concession trailer generator that outputs 240V and comes with the appropriate warranty.
