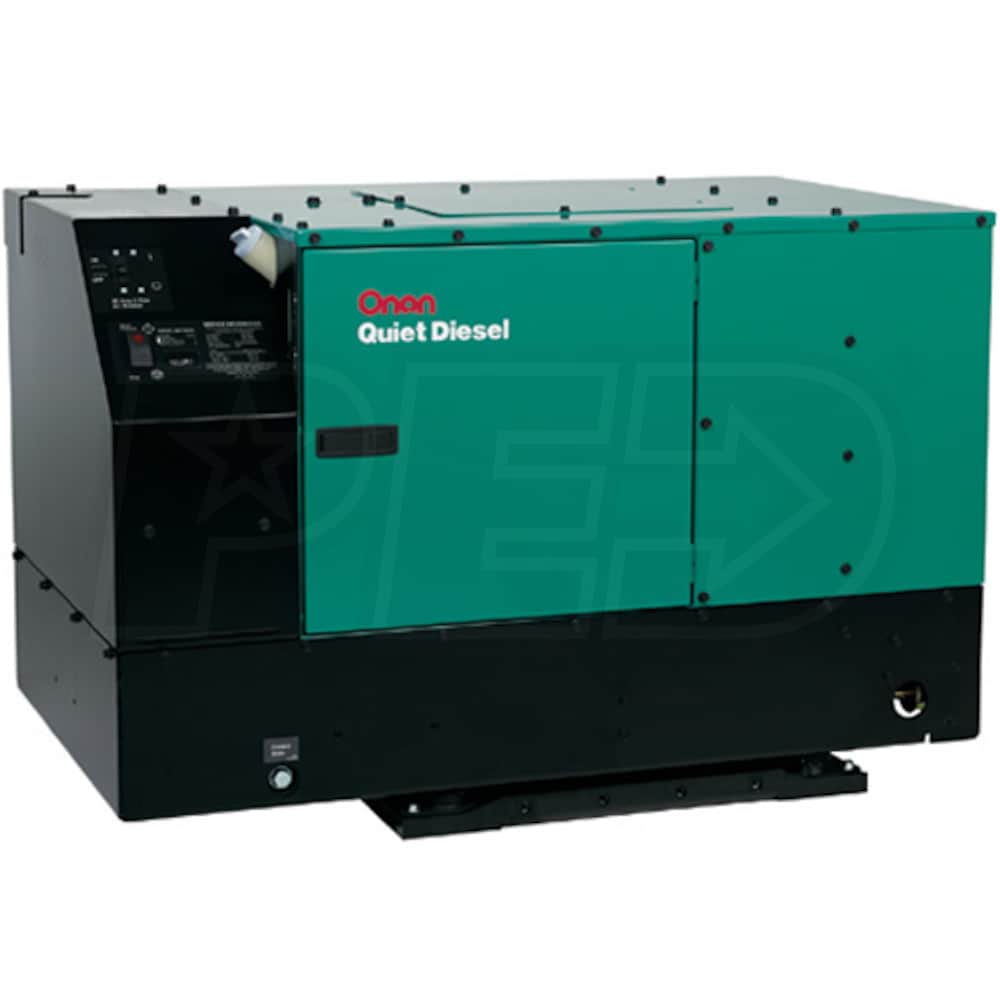

Cummins Onan RV QD10000 - 10HDKCA11506G - 10kW RV Generator (Diesel)

Cummins Onan RV QD10000 - 10HDKCA11506G - 10kW RV Generator (Diesel)
Our Price
Compare Prices
Shipping Info
Model: RV QD 10000
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$10,006.00
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
Add-Ons
Free Shipping$10,006.00Buy Now
Free Freight$10,006.00Visit Site
Factory-Direct
Ships in 3-4 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, Indiana, , , California or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
10,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Recreational
Style
RV
Run Watts
10,000
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Cummins Onan


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 10.0 kW Diesel Powered RV Generator (Model 11506)
  • Designed for Type A RVs w/ 3 AC units (45A 2-Pole Breaker)
  • Runs 3 15,000 BTU AC units w/ 2500 additional watts available
  • Cummins Onan 1647cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.43 Gal/h @ 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • High Quality, Pure Sine Wave Electrical Output
  • Digital voltage regulator prevents damaging spikes
  • Computer-Controlled Variable Speed Operation
  • Matches engine speed to load demand, minimizes noise levels
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features
  • 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
Specifications
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
27 HP
CC
1647 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
10000 Watts
Fuel Type
Diesel
Rated Amps
42 Amps
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
(68 @ 3M - Half Load) db(A)
Hour Meter
Yes
Min. Air Outlet - Bottom
15" x 16"
Min. Air Inlet - Front
19" x 12"
Grade Type
Recreational
Overview
Weight
765 Pounds
Product Style
RV Generator
Product Length
41.4 Inches
Product Width
24.5 Inches
Product Height
27 Inches
Consumer Warranty
3 Years
Grade
Style
Run Watts
10,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Recreational
Style
RV
Run Watts
10,000
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Cummins Onan


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 10.0 kW Diesel Powered RV Generator (Model 11506)
  • Designed for Type A RVs w/ 3 AC units (45A 2-Pole Breaker)
  • Runs 3 15,000 BTU AC units w/ 2500 additional watts available
  • Cummins Onan 1647cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.43 Gal/h @ 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • High Quality, Pure Sine Wave Electrical Output
  • Digital voltage regulator prevents damaging spikes
  • Computer-Controlled Variable Speed Operation
  • Matches engine speed to load demand, minimizes noise levels
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features
  • 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
Specifications
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
27 HP
CC
1647 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
10000 Watts
Fuel Type
Diesel
Rated Amps
42 Amps
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
(68 @ 3M - Half Load) db(A)
Hour Meter
Yes
Min. Air Outlet - Bottom
15" x 16"
Min. Air Inlet - Front
19" x 12"
Grade Type
Recreational
Overview
Weight
765 Pounds
Product Style
RV Generator
Product Length
41.4 Inches
Product Width
24.5 Inches
Product Height
27 Inches
Consumer Warranty
3 Years
Product Specs
+
Specifications
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
27 HP
CC
1647 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
10000 Watts
Fuel Type
Diesel
Rated Amps
42 Amps
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
(68 @ 3M - Half Load) db(A)
Hour Meter
Yes
Min. Air Outlet - Bottom
15" x 16"
Min. Air Inlet - Front
19" x 12"
Grade Type
Recreational
Overview
Weight
765 Pounds
Product Style
RV Generator
Product Length
41.4 Inches
Product Width
24.5 Inches
Product Height
27 Inches
Consumer Warranty
3 Years
Reviews
(1)
+
Cummins Onan RV QD 10000 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Is this, the 10 kw diesel generator, recommended for stationary/backup use for a home? Can you tell me the price? Thanks......Stan
Stanley Talago
from West Virginia
July 29, 2012
Answer
The RV generators are for use with Recreational Vehicles only and not for residential use and if used in a residential application the warranty would be void.
