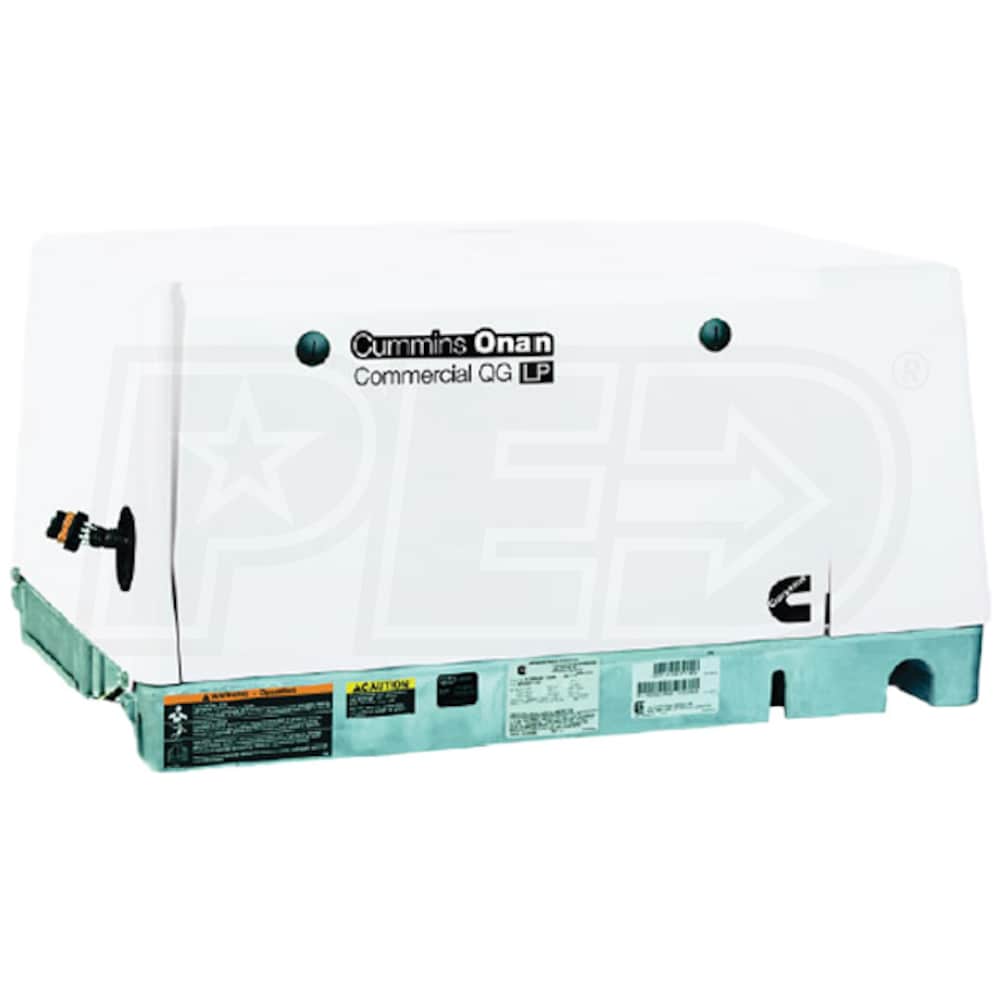

Cummins Onan QG 6500 - 6.5HGJAE-2145 - 6500 Watt LP Commercial Mobile Generator (120/240V 30A)
Model: A063B634
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 6.5 kW QG LP Commercial Mobile Generator (120/240V 30A)
- Quietest and lowest vibration generator set in its class
- Designed for tough commercial applications; Runs (2) ACs
- Cummins Onan 4-Cycle OHV V-Twin Engine (.9 Gal/H @ 1/2 Load)
- Allows for start & run without electric output to conserve fuel
- Microprocessor Controlled
- Digital voltage regulatotion provides stabilty as loads change
- Self-diagnostic capability to simplify troubleshooting
- Sound-Attenuating Enclosure w/ Thru Flow Cooling System
- Lowers noise levels while providing cross-flow cooling
- Integral USDA Forest Service-approved spark-arrestor muffler
- Integral Control Panel & Remote Waterproof Connector
- Instant one-touch stop switch & Remote disable/continuous stop
- 4-Point Mounting System w/ Coil Spring Vibration Isolators
- Universal mounting tray allows for easy installation
- Automatic Safety Shutdowns
- Low oil pressure, over/under speed, and overcurrent protection
- Added Features
- Electric fuel solenoid & 10' Gen-set output lead
- 2-Year / 2000 Hour Limited & 5-Year Drive Warranty (See Spec Sheet)
For Additional Models - Please Call Us @ 1-800-800-3317
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6500 Watts
Fuel Type
LP
LP Fuel Consumption @ 50% Load
.9 gallons/hr
LP Fuel Consumption @ 100% Load
1.5 gallons/hr
Rated Amps
27.1 Amps
Decibel Rating @ 3m
70
Hour Meter
Yes
Fuel Consumption
.52-1.5 gallons/hr
Circuit Breaker Size
30 Amps
Grade Type
Professional
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
CC
653 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
2880 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
290 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
RV Generator
Product Length
33.6 Inches
Product Width
22.2 Inches
Product Height
16.7 Inches
Additional Model Numbers
6.5 HGJAE-2145, A063B634
Transfer Switch Circuits
Circuit Breaker Type
2-Pole - 30A (120/240V)
