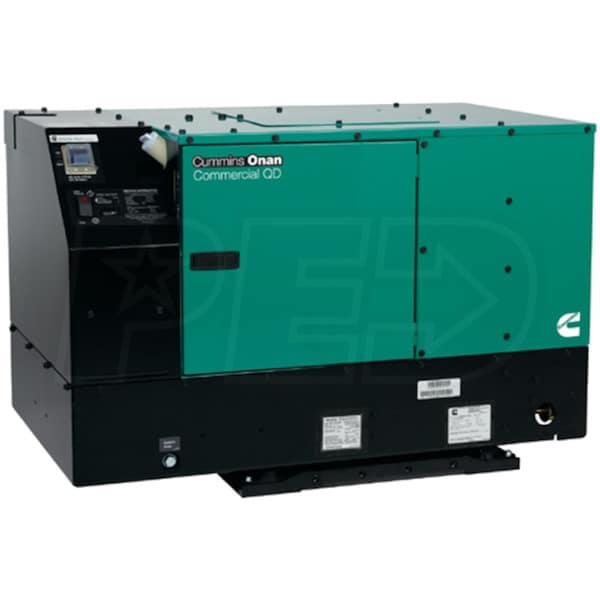

Cummins Onan QD 12000 - 12HDKCD-2209 - 12,000 Watt Quiet Diesel Commercial Mobile Generator (120/240V 50A)

Model:

A055E840

Write a Review
$12,414.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 16-20 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
synchrony card logo
$218 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Free Shipping$12,414.00Buy Now
Free Freight$12,414.00Visit Site
Cummins Onan QD 12000 - 12HDKCD-2209 - 12,000 Watt Quiet Diesel Commercial Mobile Generator (120/240V 50A)
Cummins Onan QD 12000 - 12HDKCD-2209 - 12,000 Watt Quiet Diesel Commercial Mobile Generator (120/240V 50A)
Model: A055E840
$12,414.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

RV

Run Watts

12,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

Kubota



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    For Additional Models - Please Call Us @ 1-800-800-3317
  • 12 kW Quiet Diesel Commercial Mobile Generator (120/240V)
  • Designed for tough commercial applications; 50A 2-Pole CB
  • Runs (3) 15,000 BTU AC units w/ 5000 additional watts available
  • Kubota 1647cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.48 Gal/h 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • Brush Type-AC Alternator w/ Digital Votage Regurlator
  • Provides relaible power & prevents damaging spikes
  • Computer-Controlled Constant Speed Operation
  • No waiting for power, ready when you need it
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control For Ease Of Use
  • Bulkhead Connections For Fuel & Battery (15A Battery Charging)
  • 2-Year / 2000 Hour Limited Warranty (See Spec Sheet)
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A055E840
specs product image PID-15748
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Fuel Type
Diesel
Rated Amps
50 Amps
Decibel Rating @ 3m
68
Idle Control
Yes
Hour Meter
Yes
Fuel Consumption
.11-1.20 gallons/hr
Circuit Breaker Size
50 Amps
Grade Type
Professional
Engine
Engine Brand
Kubota
Starting System
12-Volt Button Start
CC
1647 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
816 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
41.5 Inches
Product Style
RV Generator
Product Width
24.5 Inches
Product Height
27 Inches
Additional Model Numbers

12.0 HDKCD-2209, A055E840

Reviews

(1)
Cummins Onan A055E840 Reviews & Ratings

Product Q&A

(3)
Product Questions Answered by Jared, the Generator Expert
What type of battery would you recommend with this generator, and can you confirm if this unit comes with a muffler built in?
Steve
from New York
April 29, 2018
Hi Mike. Can you explain the difference between the HDKCD-2209 and the RV QD 12500? Thanks!
Steve
from New York
March 15, 2017
Is this OK to install and operate on a bus while it is moving on the road? We have the unit mounted in a school bus and want to ensure it is OK to operate it while the bus is moving on the road. Should we mount the unit on shock absorbing fasteners? What is the specification for vibration from the vehicle to the generator while in transit?
Al W.
from Texas
December 21, 2016
