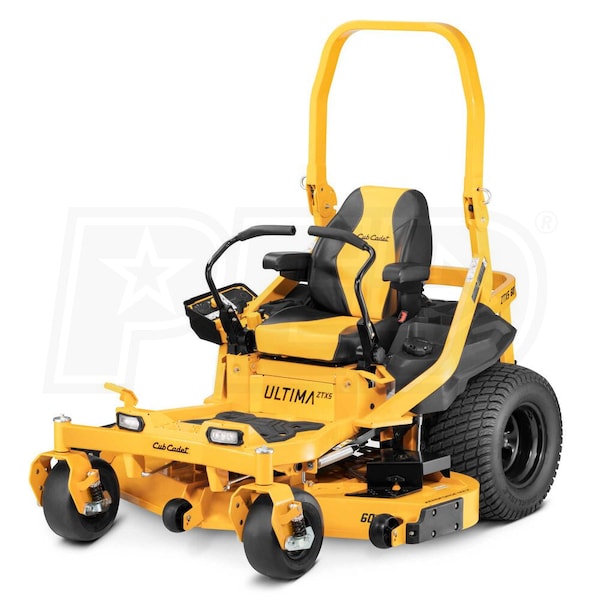

Cub Cadet Ultima ZTX5 (60") 24HP Kawasaki Zero Turn Lawn Mower

Model:

ZTX5 60

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Cub Cadet Ultima ZTX5 (60
Cub Cadet Ultima ZTX5 (60") 24HP Kawasaki Zero Turn Lawn Mower
Model: ZTX5 60
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jake, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Semi-Pro

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

60 Cutting Inches

Engine

Kawasaki FR730V



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Mower Is Too Large To Fit On Lift Gate For Delivery
  • Must have a loading dock or fork lift @ delivery locale to unload
  • 24HP/726cc Kawasaki FR730 V-Twin OHV 4-Cycle Engine
  • Lightweight design increases efficiency and improves fuel economy
  • Delivers the power required to tackle the thickest of them
  • V-twin cylinders reduce vibration for a smoother ride
  • Contains a metal engine cover with integrated clean out ports
  • Dual Hydro-Gear™ EZT-3200™ Hydrostatic Drive System
  • Delivers responsive maneuverability and a smoother ride
  • Provides optimal torque and speeds up to 8.5 MPH
  • 60-Inch, Fabricated (Welded) 3-Blade Mower Deck
  • Features Cub Cadet's best-in-class Aeroforce Max™ cutting system
  • Top discharge deck allows for an elite bagging performance
  • 17 cut heights ranging from 1"-5"
  • A Real Steel
  • Durable squared tubular steel frame design
  • Steel frame provides a better cut and trim quality
  • Corrosion protected with a Triple Guard Corrosion Defense System™
  • 5/16" steel yokes with suspension castors provide better control
  • Adjustable Lap Bars
  • Accommodates riders of all shapes and sizes
  • Ultra-Premium High Back Seat w/ Cushioned Arm Rests
  • Ergonomic, comfortable 24" high-back seat with suspension
  • Includes a ball-bearing seat slide and seat isolators
  • Fully adjustable and optimized to reduce riders fatigue
  • Maintenance Made Easy
  • The battery is conveniently located under the seat for easy access
  • Easily reach filters, spark plugs and oil with the open frame
  • Removable floorboard
  • Easily access the external oil filter
  • Turf Master Tires
  • Larger 23" x 12" tires provide excellent traction and a smoother ride
  • Distribute weight evenly - great for uneven surface types
  • Increased traction on slopes and in wet conditions
  • LED The Way
  • Features dual-LED headlights for unmatched visibility in low light
  • Roll-Over-Protection (ROPS) Capable
  • Provides additional safety benefits by reducing the risk of injury
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ZTX5 60
specs product image PID-104523
Engine
Engine Brand
Kawasaki FR730V
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
24 HP
CC
726 CCs
Fuel Tank Size
5.5 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
10-Gauge
Deck Construction
Welded
Spindle Material
Aluminum
Blades
3 Blades
Deck Positions
17 Positions
Cutting Width
60 Inches
Cutting Height
1"-5"
Deck Lift System
Manual Foot Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
8.5 MPH
Maximum Reverse Speed
3.5 MPH
Transmission Type
Hydrostatic
Drive System
ZT-3200 Hydro-Gear Transaxle
Accessories
Seat Type
High Back
Hour Meter
Included
Arm Rests
Included
Hitch
Included
Mulcher Kit
Optional
Headlights
Included
Wheels
Front Tire Size
13 x 6.5 Inch
Rear Tire Size
23 x 12 Inch
Tire Type
Pneumatic Wheels
Overview
Consumer Warranty
4 Years
Power Type
Gas
UPC
43033591589
Additional Model Numbers

47AIAAA8010, ZTX5 60
