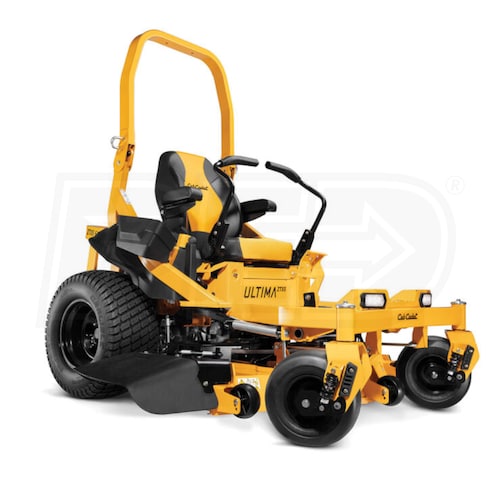

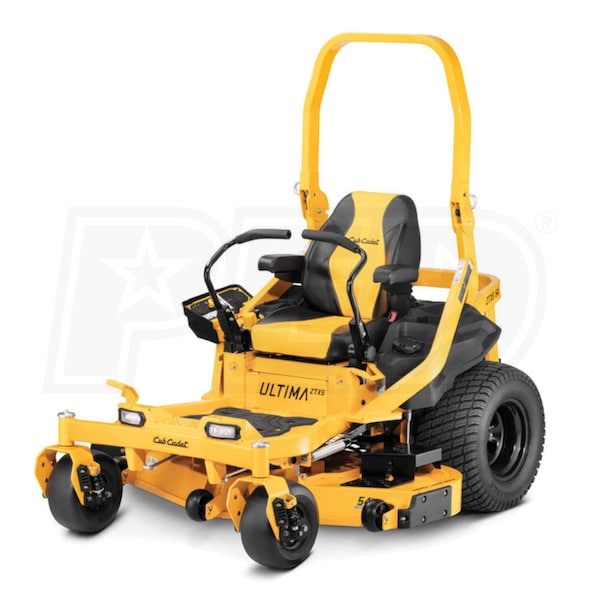

Cub Cadet Ultima ZTX5 (54") 25HP Kohler Zero Turn Mower

Model:

ZTX5 54

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Cub Cadet Ultima ZTX5 (54
Cub Cadet Ultima ZTX5 (54") 25HP Kohler Zero Turn Mower
Model: ZTX5 54
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Semi-Pro

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

54 Cutting Inches

Engine

Kohler Confidant ZT740

  • Mower Is Too Large To Fit On Lift Gate For Delivery
  • Must have a loading dock or forklift @ delivery locale to unload
  • 25HP/747cc Kohler Confidant ZT740 V-Twin OHV 4-Cycle Engine
  • Cast-iron cylinder bores and high-impact nylon shroud increase protection
  • Chopper grass screen guard limits grass and debris build-up
  • Heavy-duty air cleaner and steel guard help withstand tough mowing environments
  • Pressure lubrication system prolongs engine life
  • Dual Hydro-Gear™ ZT-3200™ Hydrostatic Drive System
  • Delivers responsive maneuverability and a smoother ride
  • Provides optimal torque and speeds up to 8.5 MPH
  • 54-Inch, Fabricated (Welded) 3-Blade Mower Deck
  • Features Cub Cadet's best-in-class Aeroforce Max™ cutting system
  • Top discharge deck allows for an elite bagging performance
  • 17 cut heights ranging from 1" - 5"
  • A Real Steel
  • Durable squared tubular steel frame design
  • Steel frame provides a better cut and trim quality
  • Corrosion protected with a Triple Guard Corrosion Defense System™
  • 5/16" steel yokes with suspension castors provide better control
  • Adjustable Lap Bars
  • Accommodates riders of all shapes and sizes
  • Ultra-Premium High Back Seat w/ Cushioned Arm Rests
  • Ergonomic, comfortable 24" high-back seat with suspension
  • Includes a ball-bearing seat slide and seat isolators
  • Fully adjustable and optimized to reduce riders fatigue
  • Maintenance Made Easy
  • Conveniently located battery under the seat for easy access
  • Effortlessly reach filters, spark plugs and oil with the open frame
  • Removable floorboard
  • Easily access the external oil filter
  • Turf Master Tires
  • Larger 23" x 12" tires provide excellent traction and a smoother ride
  • Distribute weight evenly - great for uneven surface types
  • Increased traction on slopes and in wet conditions
  • LED The Way
  • Features dual-LED headlights for unmatched visibility in low light
  • Roll-Over-Protection (ROPS) Capable
  • Provides additional safety benefits by reducing the risk of injury
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ZTX5 54
specs product image PID-112005
Engine
Engine Brand
Kohler Confidant ZT740
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
25 HP
CC
747 CCs
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Consumer Warranty
4 Years
Power Type
Gas
UPC
043033590285
Additional Model Numbers

47AIAAA7010, ZTX5 54

Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
10-Gauge
Deck Construction
Welded
Spindle Material
Aluminum
Blades
3 Blades
Deck Positions
17 Positions
Cutting Width
54 Inches
Cutting Height
1" - 5"
Deck Lift System
Manual Foot Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
8.5 MPH
Maximum Reverse Speed
3.5 MPH
Transmission Type
Hydrostatic
Drive System
ZT-3200 Hydro-Gear Transaxle
Accessories
Seat Type
High Back
Hour Meter
Included
Arm Rests
Included
Hitch
Included
Mulcher Kit
Optional
Headlights
Included
Wheels
Front Tire Size
13 x 6.5 Inch
Rear Tire Size
23 x 12 Inch
Tire Type
Pneumatic Wheels
