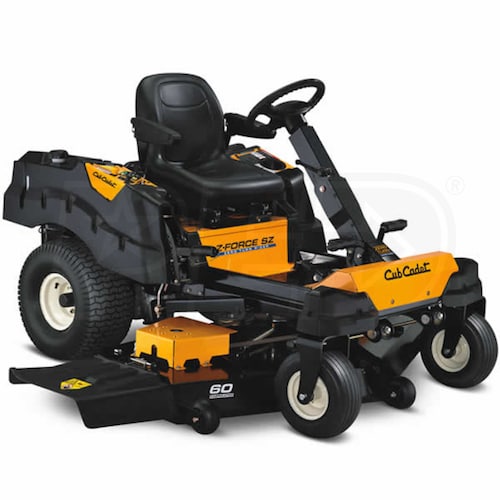

Cub Cadet Z-Force ZF S60 (60") 25HP Kohler Zero Turn Mower w/ Steering Wheel
Model:
17BSDGHD010
+
Share This Product
Features
Cub Cadet Z-Force ZF S60 (60") 25HP Kohler Zero Turn Mower w/ Steering Wheel
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Mower Is Too Large To Fit On Lift Gate For Delivery
- Must have a loading dock or fork lift @ delivery locale to unload

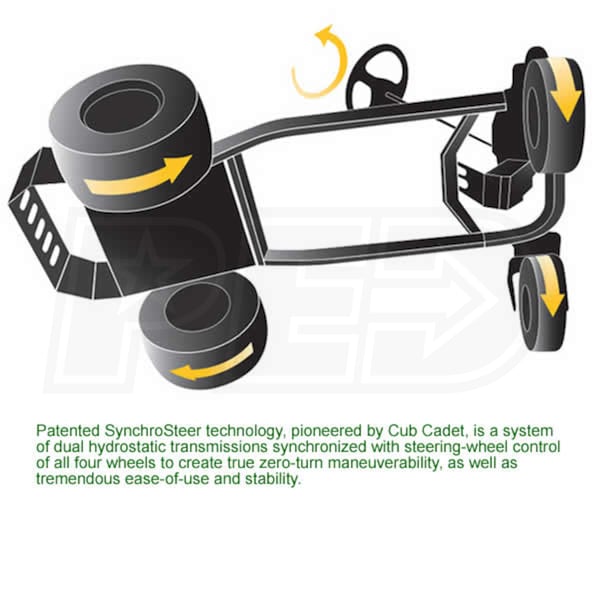

- Zero Turn Maneuverability With Steering Wheel Control
- Delivers car-like ease of operation
- 25HP/725cc Kohler 7000 Series V-Twin 4-Cycle OHV Engine
- Dual-seal air filter keeps debris out of the engine
- Fully pressurized lubrication with spin-on oil filter
- Dual Hydro Gear ZT2800 Hydrostatic Transmissions
- 10cc pumps and 16cc wheel motors on each drive wheel
- No shifting - just push the foot pedal and go
- Easy-to-use cruise control
- 60-Inch Fabricated (Welded) Floating Mower Deck
- Heavy duty 11-gauge steel w/ 3 blades and greaseable spindles
- 13-position, spring-assisted deck lift (lever operated)
- 2 greaseable heavy-duty gauge wheels/1-nose premium gauge wheel
- Patented SmartJet™ high-pressure deck washing system
- Fully Welded 12-Gauge Steel Frame
- E-Coat corrosion defense system for protection & durability
- 18-inch high-back seat w/ armrests
- Foot pedal parking brake w/ mechanical locking
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
17BSDGHD010
Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
25 HP
CC
725 CCs
Fuel Tank Size
2.8 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
2 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
850 Pounds
Consumer Warranty
3 Years
Product Length
70.0 Inches
Product Width
63.5 up/68.0 down Inches
Product Height
38.0 Inches
UPC
043033574926
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
11-Gauge
Deck Construction
Welded
Spindle Material
Aluminum
Blades
3 Blades
Deck Positions
13 Positions
Cutting Width
60 Inches
Cutting Height
1.0-4.0 Inches
Deck Lift System
Manual Hand Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
7 MPH
Maximum Reverse Speed
3 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
ZT2800 Hydro Drive
Accessories
Rear Bagger
Sold Separately
Engine Guard
No
Seat Type
High Back
Hour Meter
Included
Arm Rests
Included
Front Bumper
No
Trailer Hitch
Included
Mulcher Kit
Sold Separately
Headlights
Sold Separately
Wheels
Front Tire Size
13 x 5 Inch
Rear Tire Size
20 x 10 Inch
Tire Type
Pneumatic Wheels
Reviews
(6)
Cub Cadet 17BSDGHD010 Reviews & Ratings
Great Mower, Wife Actually Mows Having A Cub Cadet With Steering
By William M.
Guysville, Ohio
Purchased 01/19/2019 |
Review Posted 02/11/2019
Been sharing a smaller RTZ with neighbors for 5 years. They moved so we purchased our own, moved up to a 60-inch ZForce. Still winter so no chance to use. But if as good as the past 5 years, this one should be better. The original RTZ cut our mowing time in half and wife actually enjoys using.
William M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I'd Buy It Again, Durable, Easy To Use, Reliable
60-Inch Mower
By Leslie S.
Wilkesboro, North Carolina
Purchased 09/28/2018 |
Review Posted 10/29/2018
Loved the Cub Cadet. Had a 46-inch and the 60-inch is great. Took 2 weeks to arrive and had to have it delivered to a loading dock and then picked it up on my trailer to get it home. What a deal.
Leslie S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Exceeded Expectations, High Quality, I'd Buy It Again
Cub Cadet Z-Force ZF S60
By Jim Z.
Round Rock, Texas
Purchased 11/28/2016 |
Review Posted 12/22/2016
The only thing I really don't like is the placement of the gas cap. It is difficult to put gas in if your gas container's spout doesn't bend.
Jim Z. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Features, Fast, High Quality, I'd Buy It Again
Cons:
Packaging, Didn
Thanks Bruce
By Jerry Rogowski
Georgetown, Kentucky
Purchased 10/21/2016 |
Review Posted 11/12/2016
You desire a raise.
Jerry Rogowski Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Fast delivery!
By Chris Q.
Joplin, Missouri
Purchased 05/31/2016 |
Review Posted 06/23/2016
I originally ordered this mower from a big orange box store. It took them 8 business days to get it! It was the wrong deck size so I got a refund. I bought the correct deck size mower from Mowers Direct. I ordered it on Monday, had it in my driveway Wednesday! Oh and I saved 200 bucks buying it through Mowers Direct.
Chris Q. Recommends This
Was this review helpful?
Expert Response
We're happy we could help. Thanks for sharing your experience.
Dale V.
Power Equipment Expert
Rating Breakdown
5/5
5/5
5/5
5/5
Big mistake
By Gina D.
Eureka Springs, Arkansas
Purchased 03/07/2016 |
Review Posted 05/16/2016
After many hours of research on mowers we decided we wanted a mower with the biggest deck we could find with a steering wheel. We found this mower was carried by a nearby home improvement chain but it was out of stock even to order and ship to shore. We found it here and the free shipping + no sales tax made it seem like a great idea. It was brought directly to our home which meant we didn't have to spend $2000 on purchasing a trailer to get it there either! Seemed ideal.
After 12.5 hours of run time the mower quit. Just stopped moving, engine starts, sounds great but the mower doesn't move. After making several phone calls and poor customer service, we were told since it was under warranty it could be repaired at a certified Cub Cadet repair shop--over an hour away from our home. So here we are with a BRAND NEW mower we owned for ONE month that is useless. Our choices are to purchase a large trailer and take a half day off work to take it to the repair store and another half day off work to go pick it up when it is repaired OR to call someone locally to come repair it and pay for the repairs out of our pocket.
We did immediately google the problem with the mower and it seems common but the solutions given do not pertain to what's wrong with ours (i.e. missing belt, the belt is fine).
We are also going to have to pay for our 8 acres to be brushhogged because while trying to find someone to come repair it and wait for them to be available, the grass has grown knee high.
This is by far the worst purchase/mistake I've ever made. I should've known as I already have a broken down Cub Cadet sitting next to my workshop--I just assumed because I bought it used and it was junk. I guess I was wrong.
After 12.5 hours of run time the mower quit. Just stopped moving, engine starts, sounds great but the mower doesn't move. After making several phone calls and poor customer service, we were told since it was under warranty it could be repaired at a certified Cub Cadet repair shop--over an hour away from our home. So here we are with a BRAND NEW mower we owned for ONE month that is useless. Our choices are to purchase a large trailer and take a half day off work to take it to the repair store and another half day off work to go pick it up when it is repaired OR to call someone locally to come repair it and pay for the repairs out of our pocket.
We did immediately google the problem with the mower and it seems common but the solutions given do not pertain to what's wrong with ours (i.e. missing belt, the belt is fine).
We are also going to have to pay for our 8 acres to be brushhogged because while trying to find someone to come repair it and wait for them to be available, the grass has grown knee high.
This is by far the worst purchase/mistake I've ever made. I should've known as I already have a broken down Cub Cadet sitting next to my workshop--I just assumed because I bought it used and it was junk. I guess I was wrong.
Gina D. Does Not Recommend This
Was this review helpful?
Expert Response
Sorry to hear about the mower can you please let us know if the issue has been fixed or you still have issues with the product.
Dale V.
Power Equipment Expert
Rating Breakdown
1/5
1/5
1/5
1/5
Cons:
Low Quality, Unreliable, Packaging, Durability
