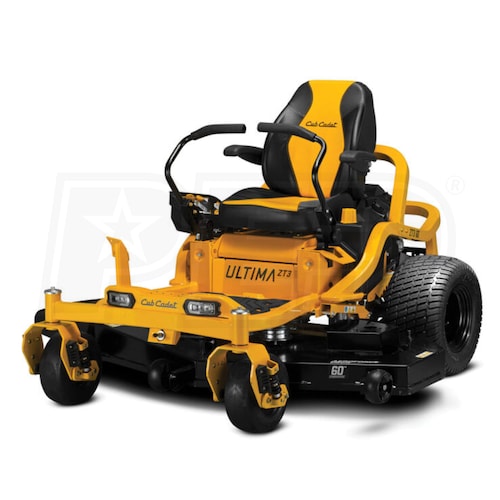

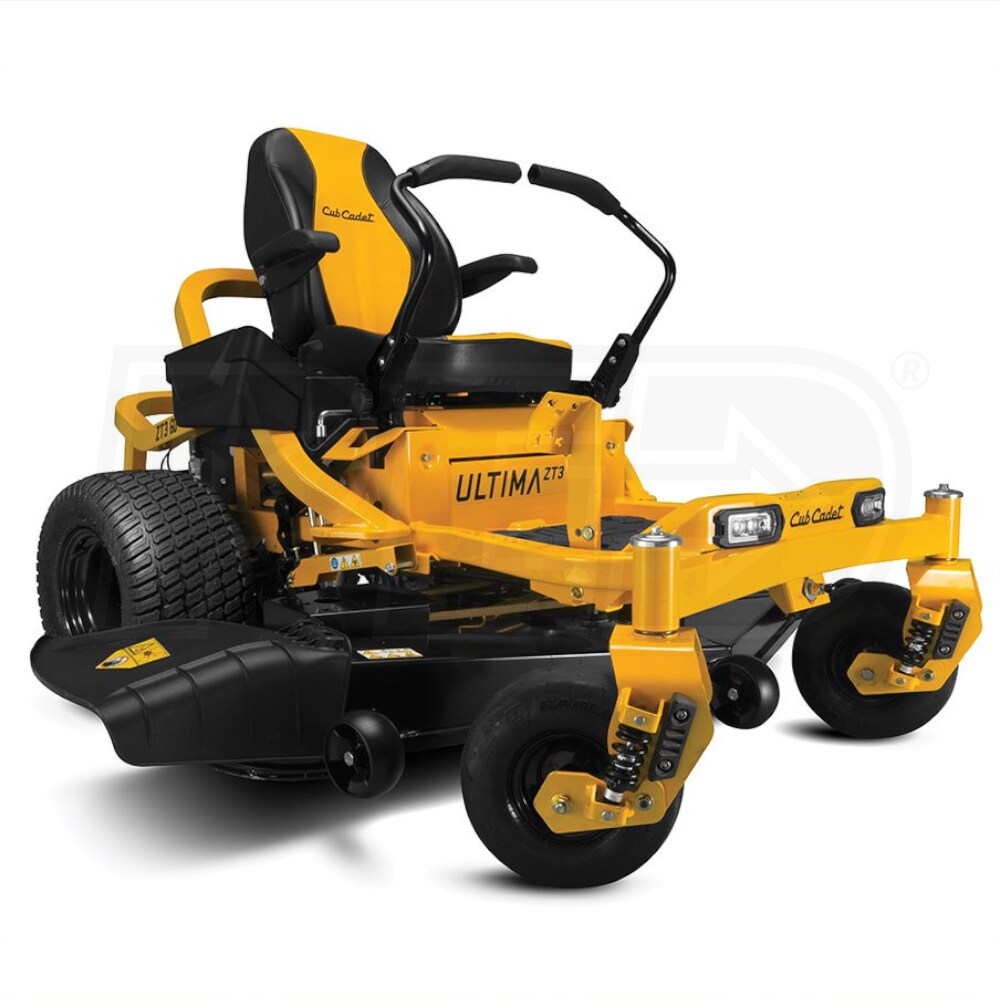

Cub Cadet Ultima ZT3 (60") 24HP Kawasaki Zero Turn Mower

Model:

ZT3 60

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Cub Cadet Ultima ZT3 (60
Cub Cadet Ultima ZT3 (60") 24HP Kawasaki Zero Turn Mower
Model: ZT3 60
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Semi-Pro

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

60 Cutting Inches

Engine

Kawasaki

  • Mower Is Too Large To Fit On Lift Gate For Delivery
  • Must have a loading dock or fork lift at delivery locale to unloa
  • 24HP/726cc Kawasaki FR730 V-Twin OHV 4-Cycle Engine
  • Lightweight design increases efficiency and improves fuel economy
  • Delivers the power required to tackle the thickest of them
  • V-twin cylinders reduce vibration for a smoother ride
  • Dual Hydro-Gear™ TZ-450™ Hydrostatic Drive System
  • Delivers responsive maneuverability and a smoother ride
  • Provides optimal torque and speeds up to 7.5 MPH
  • 60-Inch, Fabricated (Welded) 3-Blade Mower Deck
  • Features Cub Cadet's best-in-class Aeroforce Max™ cutting system
  • Extra-wide mower deck allows you to get more done in fewer passes
  • Optimizes airflow and suction for better bagging and cut quality
  • 15 cut heights ranging from 1"-4.5"
  • Automotive-Inspired Seat
  • Ergonomic, comfortable 24" high-back seat with cushioned armrests
  • Includes a ball-bearing seat slide and seat isolators
  • Fully adjustable and optimized to reduce riders fatigue
  • Adjustable Lap Bars
  • Accommodates riders of all shapes and sizes
  • A Real Steel
  • Durable squared tubular steel frame design
  • Reduces chassis flex for a more even cut and increased stability
  • Corrosion protected with a Triple Guard Corrosion Defense System™
  • Turf Master Tires
  • Large 20" x 12" tires provide excellent traction and a smoother ride
  • Distribute weight evenly - great for uneven surface types
  • Increased traction on slopes and in wet conditions
  • LED The Way
  • Features dual-LED headlights for unmatched visibility in low light
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ZT3 60
specs product image PID-104518
Engine
Engine Brand
Kawasaki
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
24 HP
CC
726 CCs
Fuel Tank Size
3.5 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Consumer Warranty
3 Years
Product Length
84 Inches
Product Width
65 Inches
Product Height
34.75 Inches
Power Type
Gas
UPC
043033596744
Additional Model Numbers

17AZEAC5010, ZT3 60

Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
11-Gauge
Deck Construction
Welded
Spindle Material
Aluminum
Blades
3 Blades
Deck Positions
15 Positions
Cutting Width
60 Inches
Cutting Height
1" - 4.5"
Deck Lift System
Manual Foot Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
7.5 MPH
Maximum Reverse Speed
3.5 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
TZ-450 Hydro-Gear Transaxle
Accessories
Seat Type
High Back
Hour Meter
Included
Arm Rests
Included
Hitch
Included
Mulcher Kit
Optional
Headlights
Included
Washout Port
No
Wheels
Front Tire Size
11 x 6 Inch
Rear Tire Size
20 x 12 Inch
Tire Type
Pneumatic Wheels
