Cub Cadet Ultima ZTS1 (50") 23HP Kohler Zero Turn Mower

Model:

ZTS1 50

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Cub Cadet Ultima ZTS1 (50
Cub Cadet Ultima ZTS1 (50") 23HP Kohler Zero Turn Mower
Model: ZTS1 50
Was $5,099.00
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Mid-Grade

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

50 Cutting Inches

Engine

Kohler KT725



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

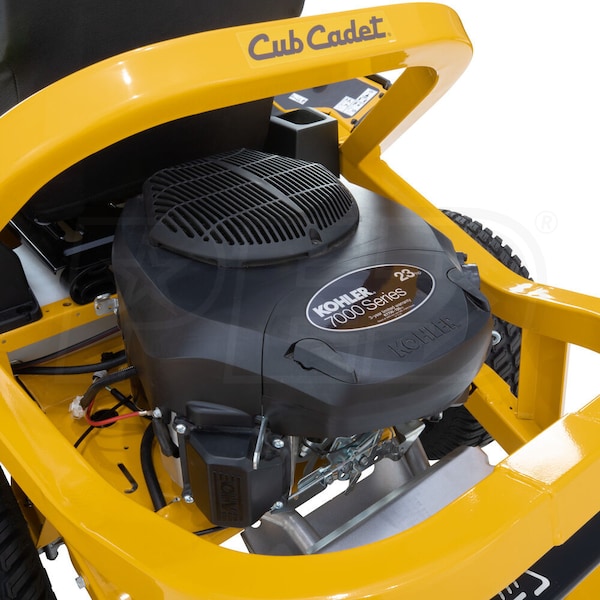

  • 23HP/725cc Kohler K7000 Series OHV 4-Cycle Engine
  • V-Twin cylinders run cooler and cleaner without sacrificing power
  • Pro-grade features, easy starts, durable components & powerful cuts
  • Dual Hydro-Gear ZT-2200 (EZT) Transmissions
  • Mows up to 7 MPH in forward and 3.5 MPH in reverse
  • Great for hauling various ground-engaging attachments
  • Delivers power with 10cc motor, 10cc pump and 1" axle shaft
  • 50-Inch, 3 Blade 11-Gauge Fabricated Mower Deck
  • User-friendly, lever operated 15-position spring-assisted deck lift
  • 3 anti-scalp wheels to prevent scalping on rough terrain
  • AeroForce deck delivers signature cut, fewer clumps, finer clippings & evenness
  • Synchro-Steer Technology
  • Offers 4-wheel control for enhanced precision and control
  • Stability for straight-line mowing on hillsides and slopes up to 20°

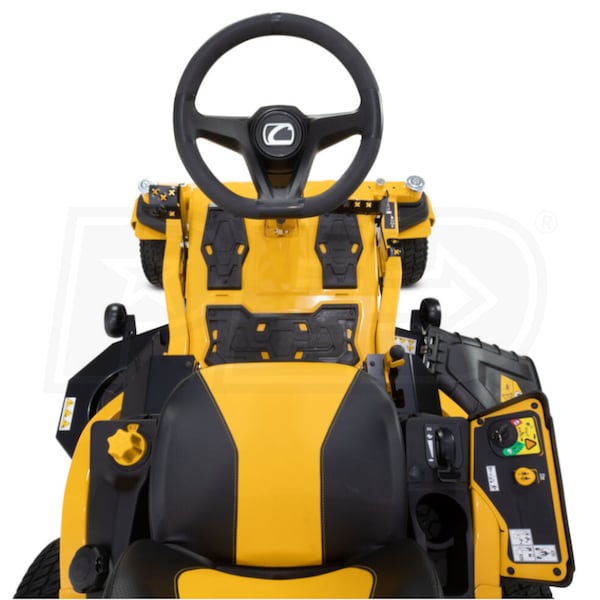

  • Comfort Grip Steering Wheel & Seat
  • Soft-touch grip wheel with tilted steering column
  • 20" adjustable high back seat with polymer seat isolators
  • Durable Steel Frame
  • 2" x 2" continuous square tubular steel frame
  • Automotive-grade triple guard corrosion defense system
  • High-Performance Features
  • Dual-LED headlights, anti-slip foot mat and cup holder
  • Premium Turf Master wheels provide great traction on uneven terrain
  • PTO Electric blade engagement; added safety and less wear on drive belts

Specifications

ZTS1 50
specs product image PID-117333
Engine
Engine Brand
Kohler KT725
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
23 HP
CC
725 CCs
Fuel Tank Size
3.5 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
684 Pounds
CARB Compliant
No
Consumer Warranty
3 Years
Power Type
Gas
UPC
043033597475
Additional Model Numbers

17ARGBYLA10, ZTS1 50

Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
11-Gauge
Deck Construction
Welded
Blades
3 Blades
Deck Positions
15 Positions
Cutting Width
50 Inches
Cutting Height
1 - 4.5"
Deck Lift System
Manual Foot Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
7 MPH
Maximum Reverse Speed
3.5 MPH
Transmission Type
Hydrostatic
Drive System
EZT-2200 Hydro-Gear Transaxle
Accessories
Rear Bagger
Sold Separately
Seat Type
High Back
Hour Meter
Sold Separately
Arm Rests
No
Hitch
Included
Mulcher Kit
Sold Separately
Floor Mat
Yes
Headlights
Included
Washout Port
No
Wheels
Front Tire Size
13 x 6.5 Inch
Rear Tire Size
20 x 10 Inch
Tire Type
Pneumatic Wheels
