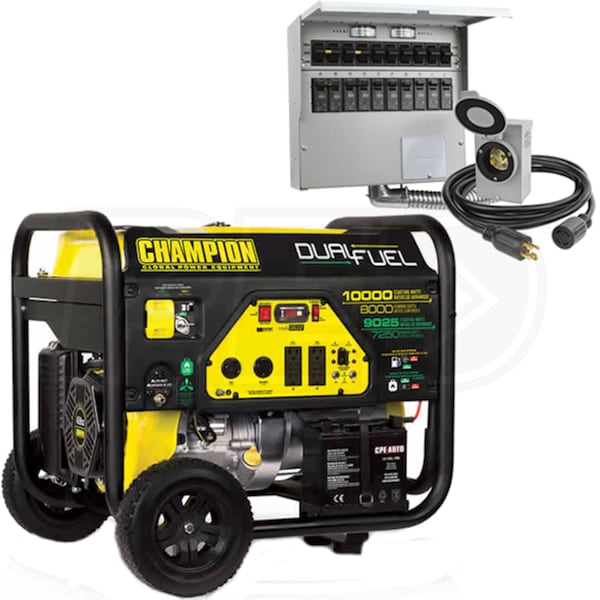

Champion 100297 - 8000 Watt Electric Start Dual Fuel Portable Generator (CARB) w/ 30-Amp Power Transfer Kit
Model:
EGD-100297KIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Portable
Run Watts
8,000 Rated Watts
Surge Watts
10,000
Starting Watts
Fuel
Gasoline/LP
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Emergency Power Bundle (Generator & Power Transfer Kit)
- Provide emergency power to your panel when you need it most
- Champion Dual-Fuel Portable Generator
- Provides up to 8000 running watts & up to 10,000 starting watts on gasoline
- Provides up to 7250 running watts & up to 9025 starting watts on propane
- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 459cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutoff Sensor
- Cast iron sleeve for long life and easy maintenance
- Provides added protection to extend the life of the generator
- Patented Fuel Selector Switch
- Simply turn the dial to the fuel choice you're using
- 6.1-Gallon Metal (Gasoline) Fuel Tank
- Provides up to 8 hours of run time
- 20 or 30-lb Tank Compatible (Not Included)
- Provides up to 7 hours of run time @ 1/2 load (20 lb.)
- Intelligauge Digital Display
- Monitor your voltage, frequency & operating hours
- (1) 120/240V (L14-30R) 30-amp Twistlock Outlet
- Maximize your power options by connecting to a manual transfer switch (MTS)
- VoltGuard Over Voltage Protection
- Helps protect your appliances & home from damaging voltage spikes
- 10" Never-Flat Wheels & U-Shaped Folding Handle
- Makes this generator extremely portable for easy emergency deployment
- Also Includes 3.3' LPG Hose & 1st Bottle Of Engine Oil
- Includes Pro/Tran 2 10-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside manual transfer switches
- (10) Total Circuits (1" Interchangeable Style)
- (1) 20A 2-Pole, (2) 20A 1-Pole & (6) 15A 1-Pole
- 30-Amp AND 20-Amp Compatible (30A Breaker Not Included)
- A & B Circuits can be used for a 30-A 2-Pole circuit (Owner Supplied)
- 10' 30-Amp (L14-30) Power Cord & 30-Amp (L14-30) Power Inlet Box
- Heavy-Duty, rubber molded design rated up to 7500w @ 240V
- Rain-tight design w/ flip-lid keeps dirt & debris out
- 3-Year Limited Warranty (Generator) - EPA & CARB Compliant
- 5-Year Limited Warranty (Manual Transfer Switch)
- (1) Champion 100297 - 8000 Watt Electric Start Dual Fuel Portable Generator (CARB) (100297)
- (1) Reliance Controls Pro/Tran 2 - 30-Amp Power Transfer Switch Kit for Portable Generators w/ 10' Cord (10 Circuit) (310CRK)
Product Includes
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
Product Includes
- (1) Champion 100297 - 8000 Watt Electric Start Dual Fuel Portable Generator (CARB) (100297)
- (1) Reliance Controls Pro/Tran 2 - 30-Amp Power Transfer Switch Kit for Portable Generators w/ 10' Cord (10 Circuit) (310CRK)
EGD-100297KIT
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
209.4 Pounds
CA (CARB) Compliant
Yes
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27.7 Inches
Product Width
28.7 Inches
Product Height
26 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
10000 Watts
Fuel Type
Gasoline/LP
Rated Amps
33.3 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.1 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74 dbA
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Transfer Switch
Manual (Included)
Transfer Switch Amperage
30-Amps
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
459 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
100297
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
209.4 Pounds
CA (CARB) Compliant
Yes
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27.7 Inches
Product Width
28.7 Inches
Product Height
26 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
10000 Watts
Fuel Type
Gasoline/LP
Rated Amps
33.3 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.1 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74 dbA
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
459 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
310CRK
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 120V
2
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
