Features
Force
7 Tons
Style
Gas
Type
Horizontal
Log Length
20 Inches
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 7 Ton Horizontal Log Splitter
- Handles logs up to 20" long
- 80cc Champion 4-Cycle OHV Engine
- Makes quick work on medium to light weight splitting
- Automatic low oil shutdown sensor
- 2 Stage, 3 Gallon Per Minute Pump
- Allows for 20 second cycle time
- 3 Gallon Hydraulic Oil Capacity
- Reservoir holds 1 gallon; hydraulic fluid NOT included
- 10" Never Flat Tires
- No need to worry about tires losing air or going flat
- Lightweight for easy portability
- Fits in the bed of most trucks
- Assembly Required - Please see Owner's Manual for Instructions
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
90720
General Information
Product Category
Log Splitter
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
80 CCs
Fuel Tank Size
0.4 Gallons
Idle Control
No
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
1.3 Gallons
Max Pump PSI
3000 PSI
Cylinder Diameter
3 Inches
Cylinder Length
17.7 Inches
Cycle Time
20 Seconds
Tonnage
7 Tons
Overview
Product Category
Log Splitter
Assembly Required
Yes
Weight
143 Pounds
Consumer Warranty
1 Year
Product Length
53.0 Inches
Product Width
23.5 Inches
Product Height
18.0 Inches
Power Type
Gas
UPC
896682907207
Wedge
Wedge Material
Steel
Wedge Size
6 Inches
Wedge Style
2-way
Replaceable Wedge
No
Log Capacity
Max Log Length
20 Inches
Max Log Diameter
14 Inches
Towing
Towable
No
D.O.T. Lights
No
Fenders
No
Accessories
Jack Stands
No
Log Cradles
No
| Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
|---|---|---|---|---|---|---|---|
| Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Reviews
(76)
Champion 90720 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Dale, the Log Splitter Expert
How-To Articles
How to Reduce the Spread of the Emerald Ash Borer
Let's put things into perspective. Once upon a time, an estimated 8.7 billion a...
How to Pick the Perfect Electric Wood Splitter
If you're looking for a safe, easy, and clean way to split firewood, electric l...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

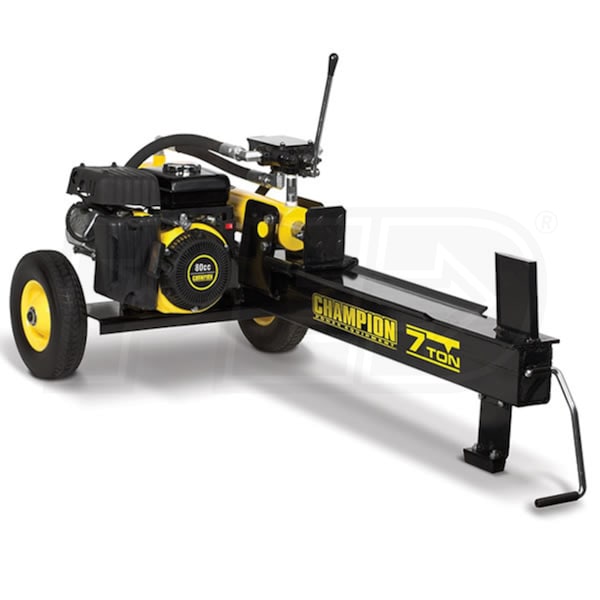

Champion 7-Ton Horizontal Gas Log Splitter w/ Champion 80cc Engine
