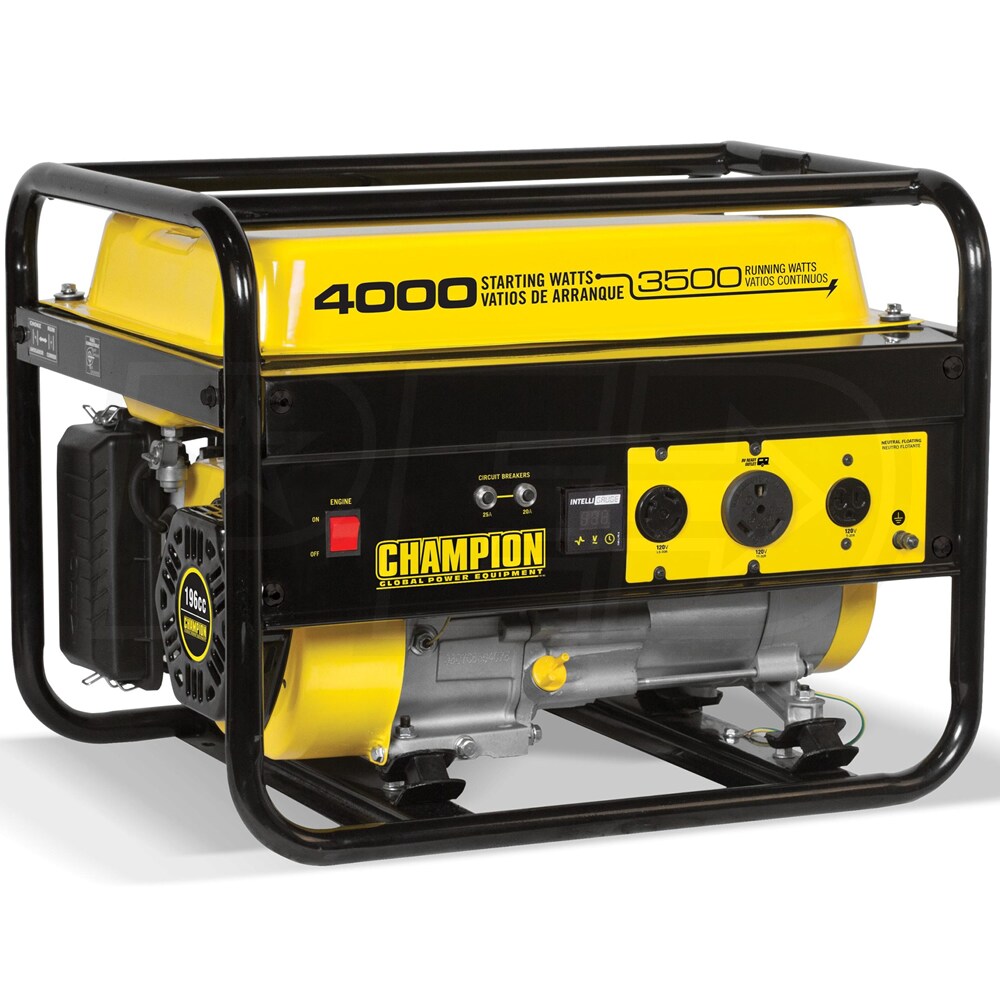

Champion 46596 - 3500 Watt Portable Generator w/ RV Outlet (49-State)

Model:

46596

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 46596 - 3500 Watt Portable Generator w/ RV Outlet (49-State)
Champion 46596 - 3500 Watt Portable Generator w/ RV Outlet (49-State)
Model: 46596
Was $349.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Optional Accessories 7
$76.50
Only 1 In-Stock
$24.95
Only 1 In-Stock
$6.50
In-Stock
$44.99
$24.99
Only 2 In-Stock
$19.99
Factory-Direct

Features

Grade

Recreational

Style

Portable

Run Watts

3,500 Rated Watts

Surge Watts

4,000
Starting Watts

Fuel

Gasoline

Engine

Champion

Champion 46596 - 3500 Watt Portable Generator w/ RV Outlet (49-State)


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Champion Power Equipment 3500 Watt Portable Generator
  • Ideal for RV's, camping, hunting and traveling
  • 196cc Champion OHV 4-Stroke Engine
  • Cast iron sleeve provides extended engine life
  • Low-Oil Shutdown
  • Prevents damage to the generator during operation
  • Circuit Breaker Protection
  • Helps prevent overload to generator
  • 4-Gallon Fuel Tank w/ Fuel Gauge
  • Provides up to 12 hours of runtime @ 1/2 load
  • RV Ready - TT-30R Outlet
  • Power your RV without the need of an extra adapter
  • 1" Full Tubular Wrap-Around Frame
  • Steel frame protects the generator on all sides
  • USDA-Approveed Spark Arrestor
  • Provides added safety when beeing used in dry areas
  • Engine Oil NOT Included
  • NON-CARB Compliant - Not Sold In CA
  • 3-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

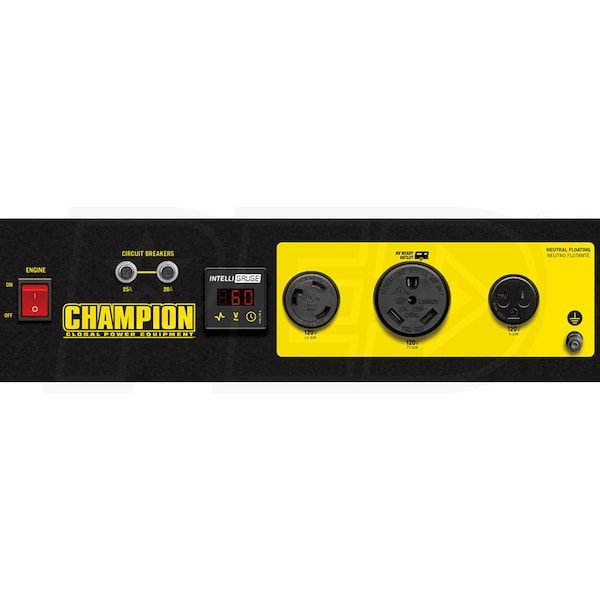

Plug Types
NEMA L5-30R
RV Ready 30-Amp
NEMA 5-20R Single (Wall-Type)
46596
specs product image PID-13787
Overview
Weight
97 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
23.2 Inches
Product Width
17.8 Inches
Product Height
17.8 Inches
UPC
896682465967
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Rated Watts
3500 Watts
Surge Watts
4000 Watts
Fuel Type
Gasoline
Rated Amps
29 Amps
Portability Kit
Sold Separately
Tank Size
4 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
No
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Recreational
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
196 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Single - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
