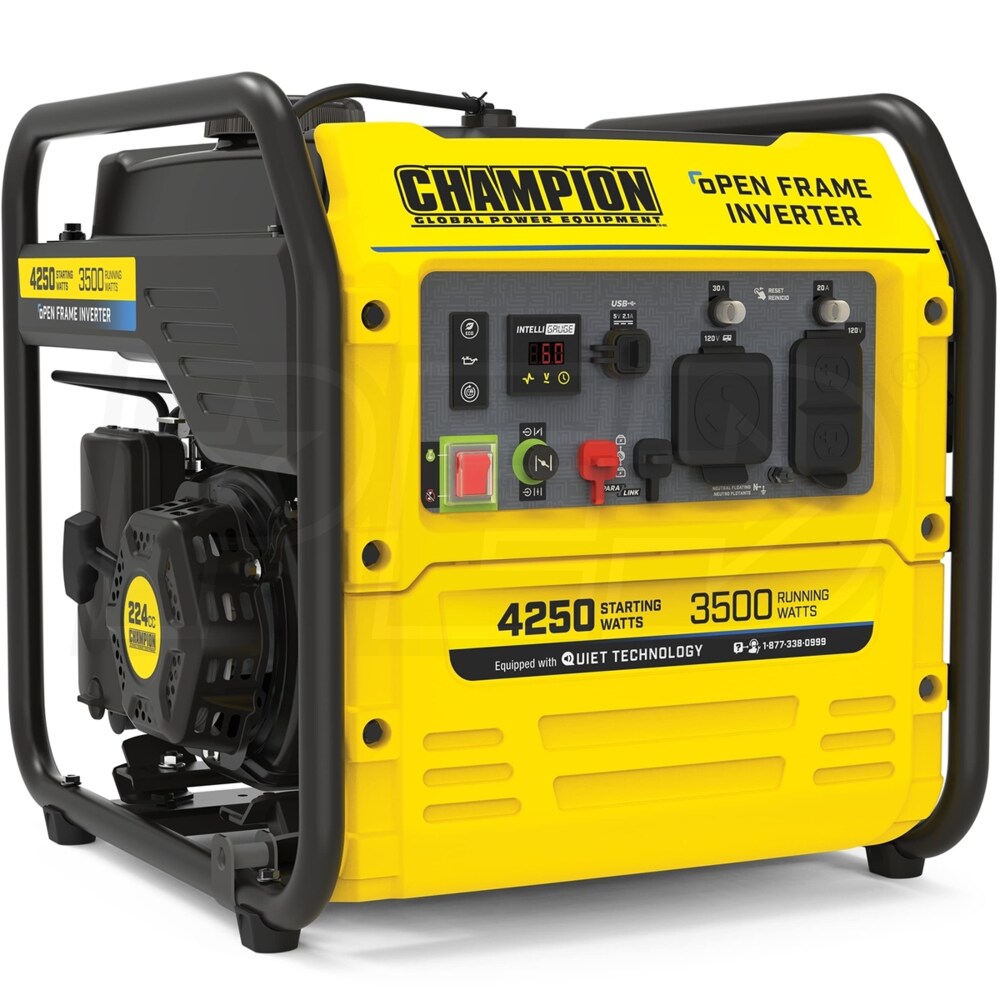

Champion 200955 - 3500 Watt RV-Ready Open Frame Inverter Generator w/ Quiet Technology (CARB)
Model:
200955
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Recreational
Style
Portable
Run Watts
3,500 Rated Watts
Surge Watts
4,250
Starting Watts
Fuel
Gasoline
Engine
Champion
- Champion RV-Ready Open Frame Inverter Generator
- Ideal for a wide range of uses from RV power to emergency backup
- Quiet Technology - 50% Quieter & 20% Lighter
- Compared to a traditional 3500W Champion generator
- 224cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutoff
- Fuel-efficient, reliable and made for easier starting (Recoil)
- Provides added protection to extend the life of the generator
- Clean Power Technology - Less Than 3% THD
- Safer power for your electronics and equipment
- Economy Mode - Up to 22 Hours of Run Time @ 25% Load
- Adjusts engine speed to the optimum level depending on load
- Reduces fuel use and engine wear for extended operation

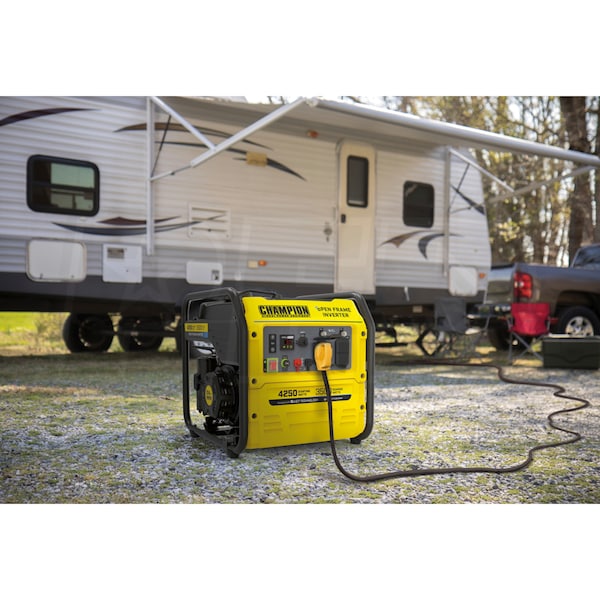

- TT-30 RV Receptacle
- Easily connect your 30A RV cord (Not Included) for quiet power
- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours
- Fully Assembled - Out Of The Box
- Just add oil (Included) and gasoline
- Parallel Operation Capability*
- Increase available wattage when linking (2) Champion generators
- *Requires Champion parallel kit (Not Included)
- (2) USB Outlet
- Ideal for charging phones and tablets

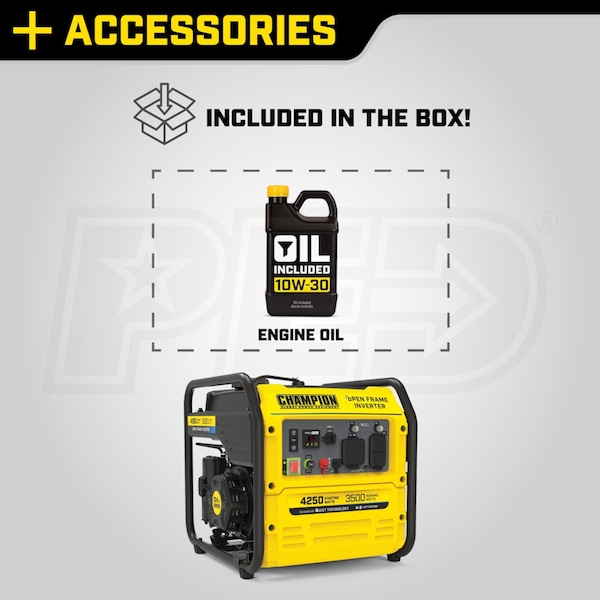

- Also Includes:
- Engine Oil, Funnel and Owner's Manual
- 3-Year Limited Warranty - EPA & CARB/50 State Certified
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
200955
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
75 Pounds
CA (CARB) Compliant
Yes
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
20.9 Inches
Product Width
18.3 Inches
Product Height
19.4 Inches
UPC
817198024141
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
3500 Watts
Surge Watts
4250 Watts
Fuel Type
Gasoline
Rated Amps
29.2 Amps
Tank Size
4 Gallons
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Recreational
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
224 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
RV Ready 30-Amp
1
USB
2
